USED Fanuc A06B-0869-B927 #094F
USD $950.00
Overview
Description

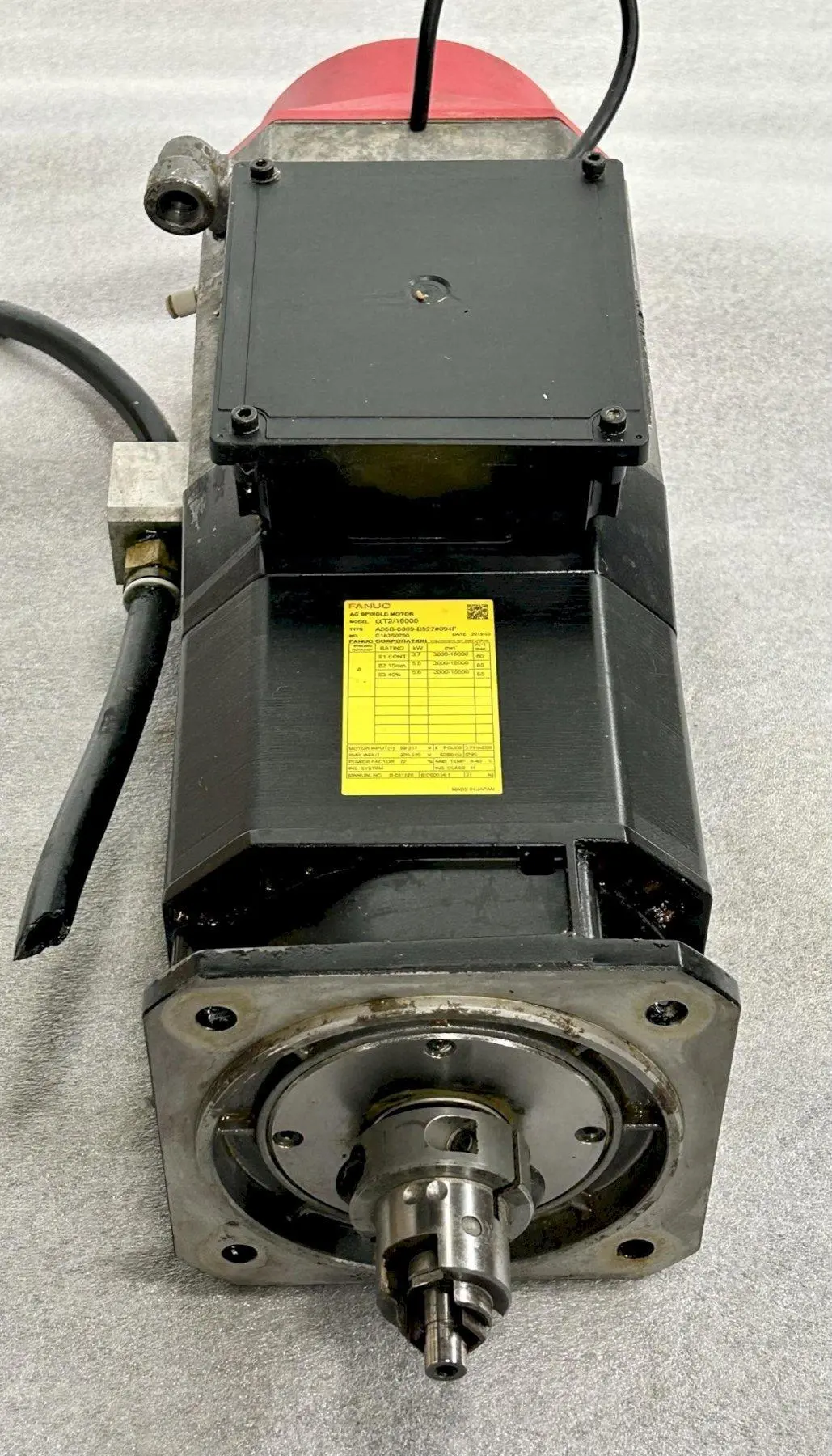

FANUC A06B-0869-B927#094F AC SPINDLE MOTOR, Model Alpha-T2/15000, 15000 RPM.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Motor Power | 5 hp | 3.7 kW |
| # Poles | 4 | 4 |
| Base Speed | 15,000 RPM | 15,000 RPM |
| Wound | Delta | Delta |
| Power Factor | 72% | 72% |
| Insulation Class | H (Max 180° C / 356° F) | H (Max 180° C / 356° F) |
| Duty | Continuous | Continuous |
| Ambient Temperature | 104°F | 40°C |
| Enclosure Rating | IP 40 | IP 40 |
| Manual No | B-65152E | B-65152E |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 28" x 12" x 13" | 28" x 12" x 13" |
| Weight | 82 lbs | 82 lbs |
