USED Fanuc A06B-0869-B927#094
USD $375.00
Overview
Description

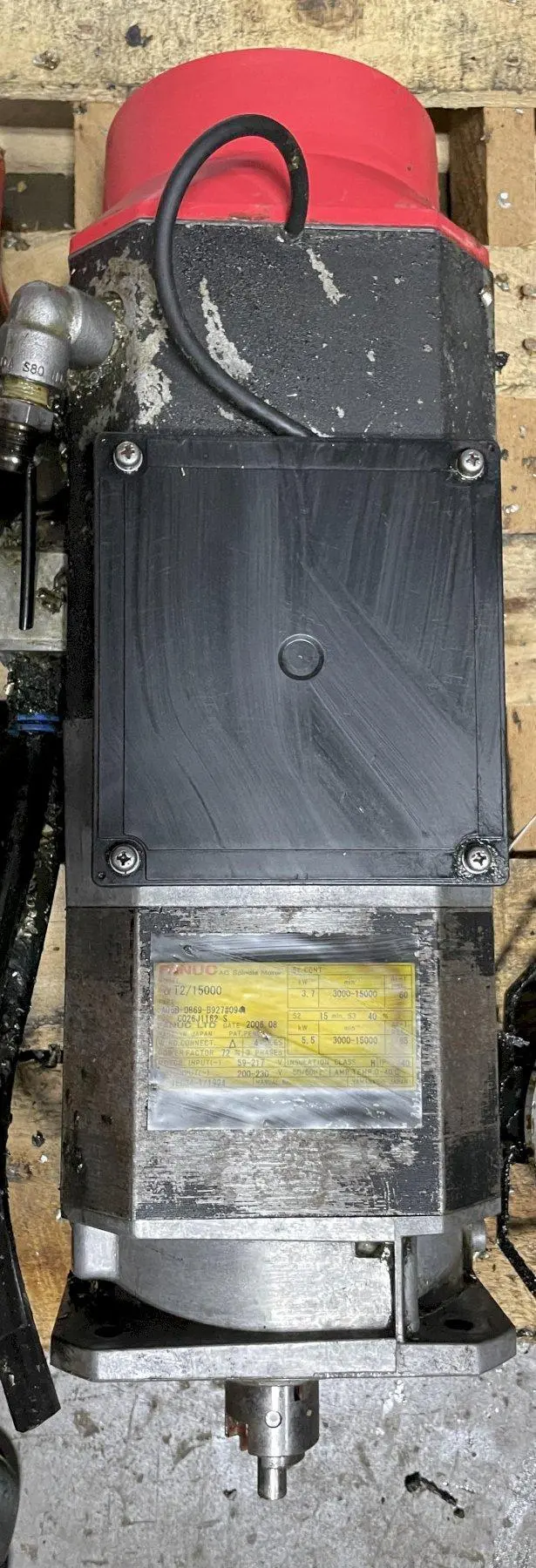

FANUC AC SPINDLE MOTOR, Type A06B-0869-B927#094, Model Alpha-T2/15000, 15000 RPM.
Specifications
| Dimensions | 28" x 12" x 13" | 28" x 12" x 13" |
|---|---|---|
| Weight | 82 | 82 |
Current Type: AC
Motor Power: 3.7 kW
# Poles: 4
Base Speed: 15,000 RPM
Wound: Delta
Power Factor: 72%
Insulation Class: H (Max 180° C)
Duty: Continuous
Ambient: 40° C
Enclosure Rating: IP 40
Standards: IEC34-1/1994
Approximate Dimensions: 28" x 12"
Approximate Height: 13"
Approximate Weight: 82 LBS
