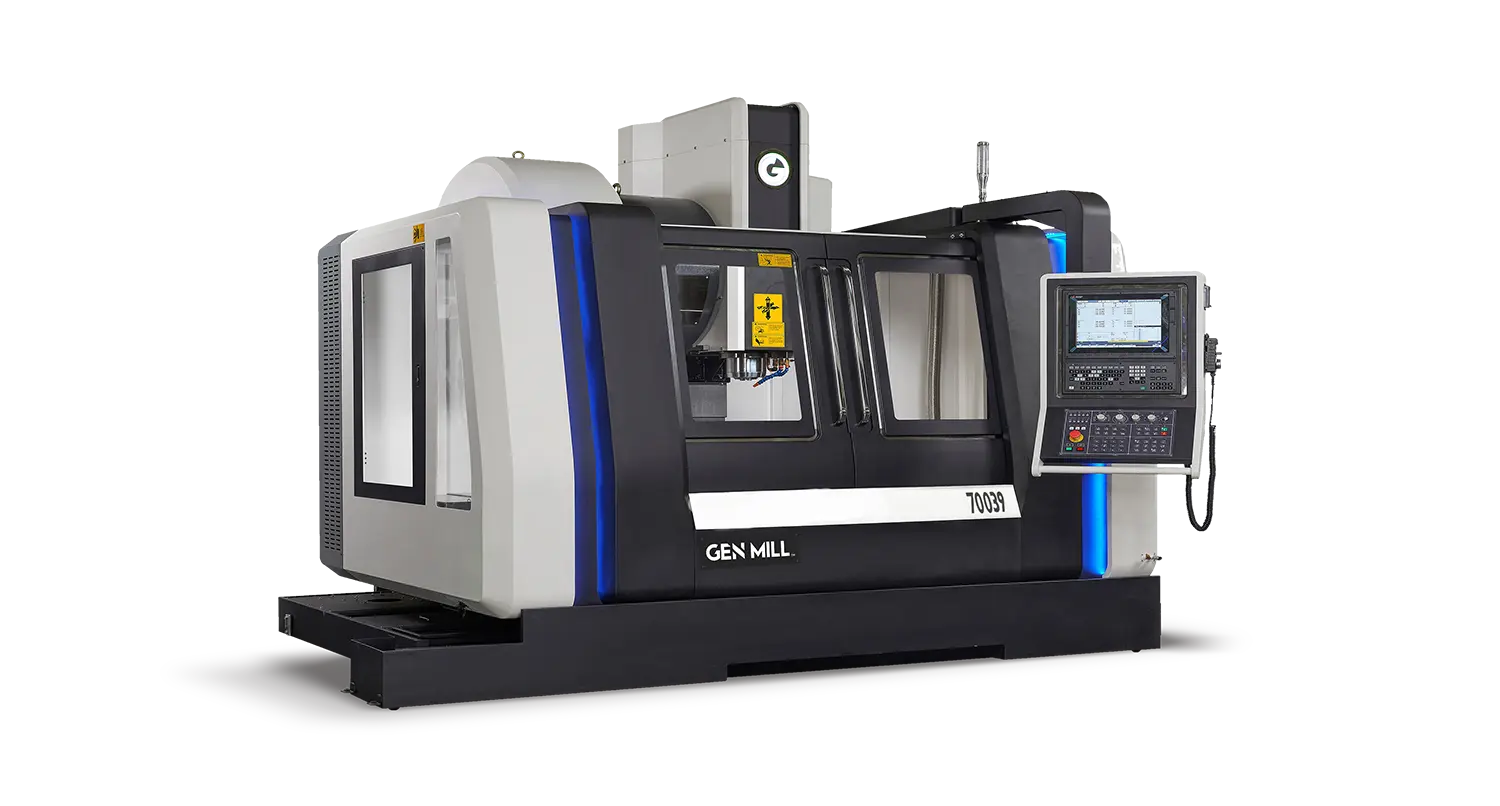

NEW EXPAND MACHINERY Genmill 7039
Specs
AXIS TRAVEL
X-Travel 70.86” 1,800mm
Y-Travel 39. 37” 1000mm
Z-Travel 35.43” 900mm
Spindle Nose to Table Surface 9.8”– 45.27” 250 – 1150mm
Spindle Center to Z-axis covers 41.53” 1055mm (throat dimension)
TABLE
Table Size (L x W) 76.77” x 35.43” 1,950mm X 900mm
T-slots - 5 total 22mm slot width on 160mm centers
Max. Table Load 6,600 lbs. 3000 kgs load
SPINDLE
Spindle Motor – S1/S2=22/26 kW 50-Horsepower Peak 35-HP 30-minute duty-rating
Spindle Speed 12,000rpm 15,000 – 20,000 rpm optional
Tool Type CAT #40 Taper (CAT/BT #40 & #50 taper optional)
Retention Knob (pull stud) C40-4502H (coolant) Japanese Standard
Spindle Taper Material / Hardness SCM415 / HRC58-62
Retention System / Holding Capability Bellville Spring Stack 1650-1760 lbs
Spindle Runout 0.000040 T.I.R.
Spindle Bearing Front 110mm NSK 70BNR 10 x 2, P4 class-7 bearings
Spindle Bearing Rear 110mm NSK 70BNR 10 x 2, P4 class-7 bearings
AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338) ± 0.0002” / 12” ± 0.005mm over 300mm travel
Repeatability X, Y, & Z axis (JIS6338) ± 0.0001” / 12” ± 0.003mm over 300mm travel
Least Input Command Increment 0.0001” / 0.000040” 0.001mm / (40-millionths in metric)
Rapid Traverse – X, Y 590 ipm 15m / minute
Rapid Traverse - Z 472 ipm 12m / minute
Cutting Feedrate 0.02 - 393 ipm 10m / minute
Axis Drive Motor Power – X, Y 9.4-HP 7kw
Axis Drive Motor Power - Z 9.4-Hp 7kw w/brake
Ballscrews – X, Y, Z 63mm ballscrews 10mm pitch
TOOL CHANGER (Specifications Change with 50-Taper Option)
Tool Capacity 40 +1 40 -Tool Twin-Arm Chain Drive
Tool Shank CAT#40 Taper (CAT#50, BT#40/50 optional)
Tool Change Time 4.3-second tool-to-tool
Maximum Tool Diameter / w/adjacent tool 5.90” / 3.15” 150mm / 80mm
Maximum Tool Length 11.81” 300mm
Maximum Tool Weight 15 lbs. 7kg
Tool Selection / Tool Access Random access / Bi-directional
SPECIFICATIONS
Air Service Requirements 85 psi @ 14-scfm
Coolant Capacity 172 gallons 650 liters
Connected load electrical requirement 47 KVA, 100 amps 220vac ±5%, 60-Hz
Floor space requirements recommended 193” x 131” x 142” 490x332x360cm (add 47” for conveyor)
Shipping dimensions (L x W x H) 217” x 146” x 150” 550x370x380cm
Machine Weight 44,092 pounds 20,000 kg
Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers.
Equipped With
• 12,000 RPM Inline Direct-Drive Beltless Spindle
• Big-Plus dual contact High-Performance precision ground spindle
• 40- Station Twin-Arm Tool Changer for CAT or BT#40 tooling
• 300 PSI “Through-the-Spindle” coolant system with rotary coupling
• Roller Ways in X & Y Axis, Box Ways in Z-Axis, 4-roller ways in Y-axis
• Massive Meehanite cast machine construction – 44,100 lbs.
• Extended Y-Axis (39”) and Z-Axis (35”) Travels, X-Axis (70”)
• 4th & 5th axis wiring is included with the machine
