USED Valves/Fittings
Overview
Description

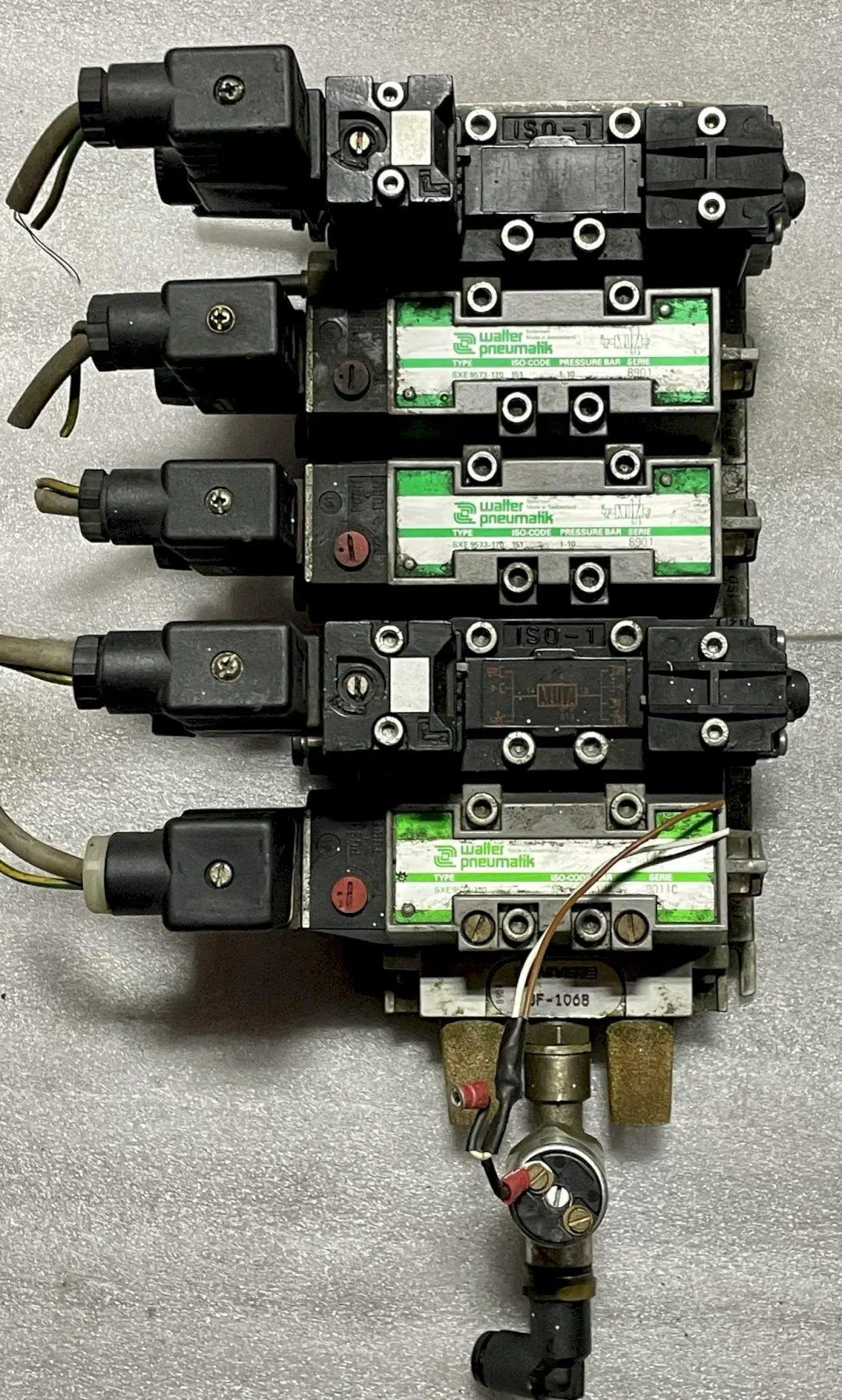

PNEUMATIC SOLENOID VALVE BLOCK, contains (3) Walter Pneumatik SXE9573-170 Pneumatic Solenoid Valves with Walter Pneumatik TM1502 Solenoid Coils, and (2) Univer BE-3700 Pneumatic Valves with a Single Electrical Impulse.
Specifications
| Code | 151 | 151 |
|---|---|---|
| Valve Type | Pneumatic Solenoid Valves | Pneumatic Solenoid Valves |
| Type of Actuation | Single Electrical Impulse | Single Electrical Impulse |
| Actuator Type | Solenoid | Solenoid |
| Solenoid Voltage | 24 V | 24 V |
| Solenoid Frequency | 60 Hz | 60 Hz |
| Max Pressure P, A, & B | 145 PSI | 10 bar |
| Operating Pressure | 145 PSI | 10 bar |
| Oriface | 8 | 8 |
| Voltage | 60 V | 60 V |
| Power Consumption | 2 W | 2 W |
| Dimensions | 15 x 10 x 10 | 15 x 10 x 10 |
| Weight | 18 | 18 |
Approximate Dimensions Overall: 15" x 10"
Approximate Height Overall: 10"
Approximate Weight Overall: 18 LBS
Equipped With
(2) UNIVER BE-3700 Pneumatic Valves with Single electrical impulse
- Nominal Bore: 8 mm
- Nominal Flow: 1480 L/min
- Max Pressure: 10 Bar
- Commutation System: Spool
- Connection: ISO 5599/1 interface
(3) WALTER PNEUMATIK Pneumatic Solenoid Valves
- Type: SXE9573-170
- ISO Code: 151
- Coil Voltage: 24 VDC NPT
- Max Pressure: 10 Bar
- Solenoid Valve Coil P/N TM1502, 60 VAC 50/60 Hz 4/3VA 24VDC 2W 100%ED
