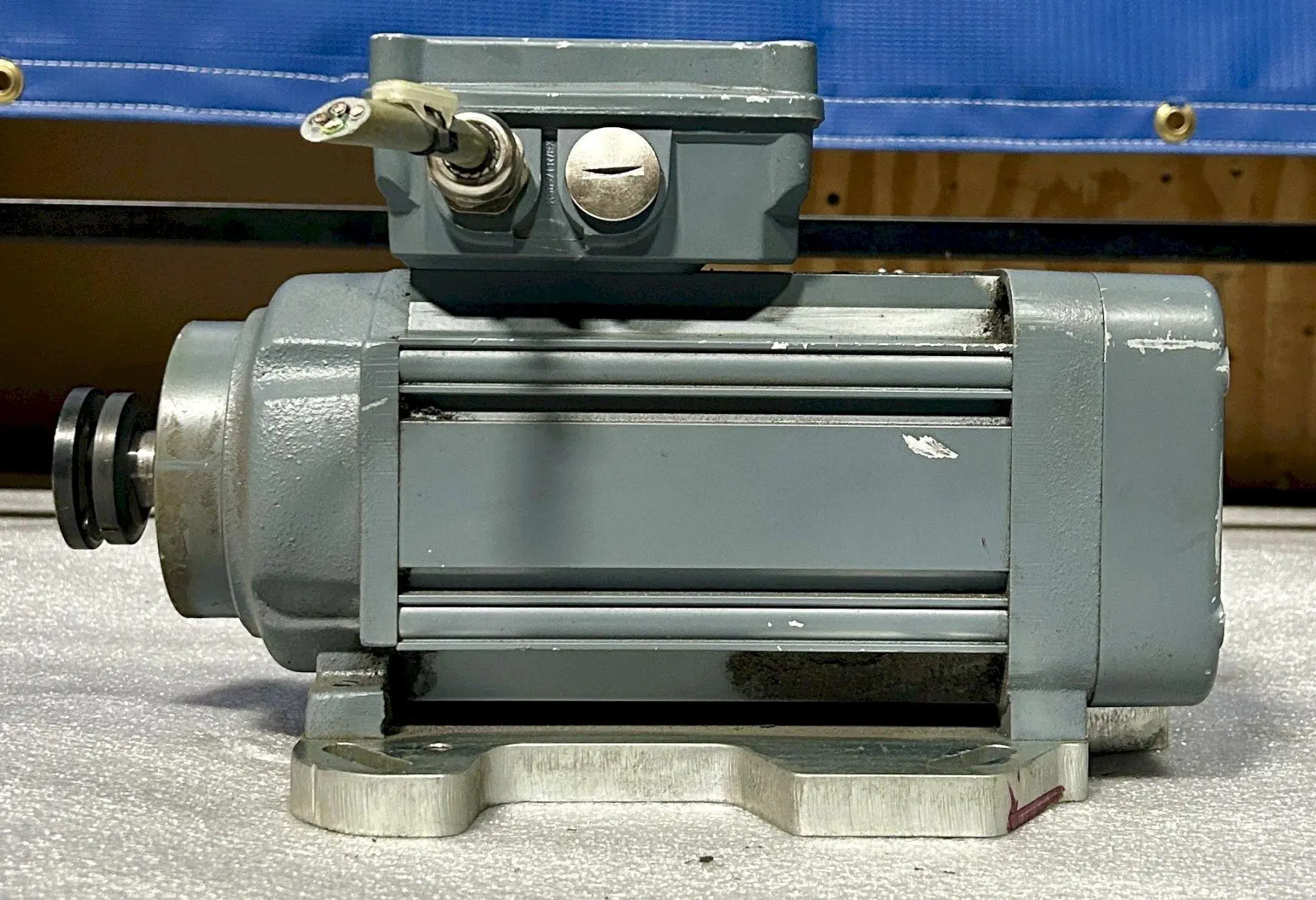

EMOD 3-PHASE FLAT MOTOR, Type VK63/21-65T, .66 kW, 3440 RPM.
| Motor Power | 0.9 hp | 0.7 kW |
| Base Speed | 3,440 RPM | 3,440 RPM |
| Power Factor | 83% | 83% |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Duty | Continuous | Continuous |
| Ambient Temperature | 104°F | 40°C |
| Enclosure Rating | IP 54 | IP 54 |
| Dimensions | 18" x 11" x 10" | 18" x 11" x 10" |
| Weight | 33 lbs | 33 lbs |
Mechanical Design: Surface-cooled Motor with Cooling Ribs
Frequency: 60 Hz
Motor Phase: 3-Phase
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Mounting Type: B3S
