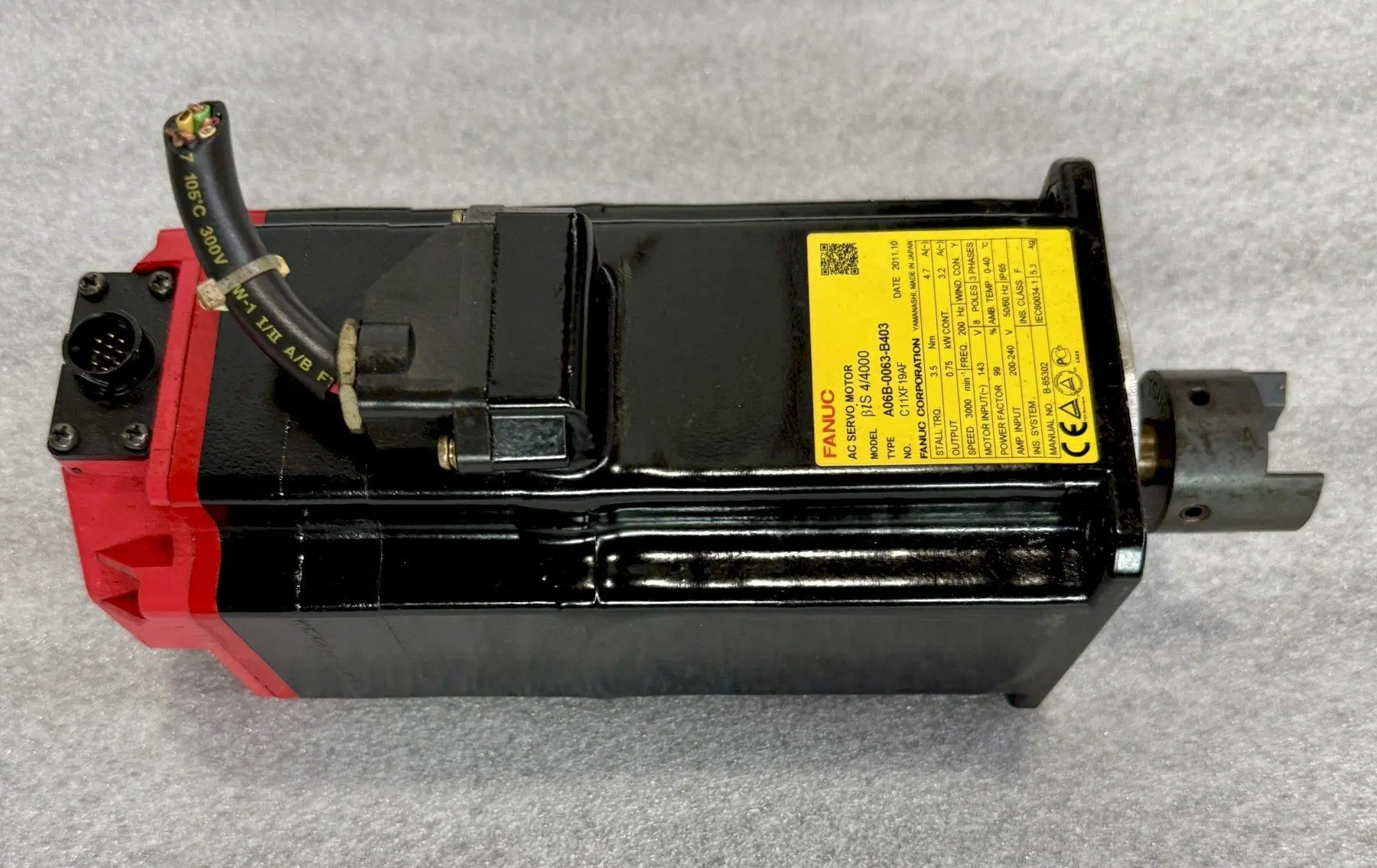

FANUC A06B-0063-B403 AC SERVO MOTOR, Model BiS 4/4000.
| Current Type | AC | AC |
| Torque (Stall) | 3.5 N | 0.8 lbf |
| Amp (Stall) | 4.7 A | 4.7 A |
| Voltage | 143 V | 143 V |
| # Poles | 8 | 8 |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Factor | 99% | 99% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Manual No | B-65302 | B-65302 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 14" x 10" x 10" | 14" x 10" x 10" |
| Weight | 17 LBS | 17 LBS |
Brake, Straight Shaft, B128IA Encoder
