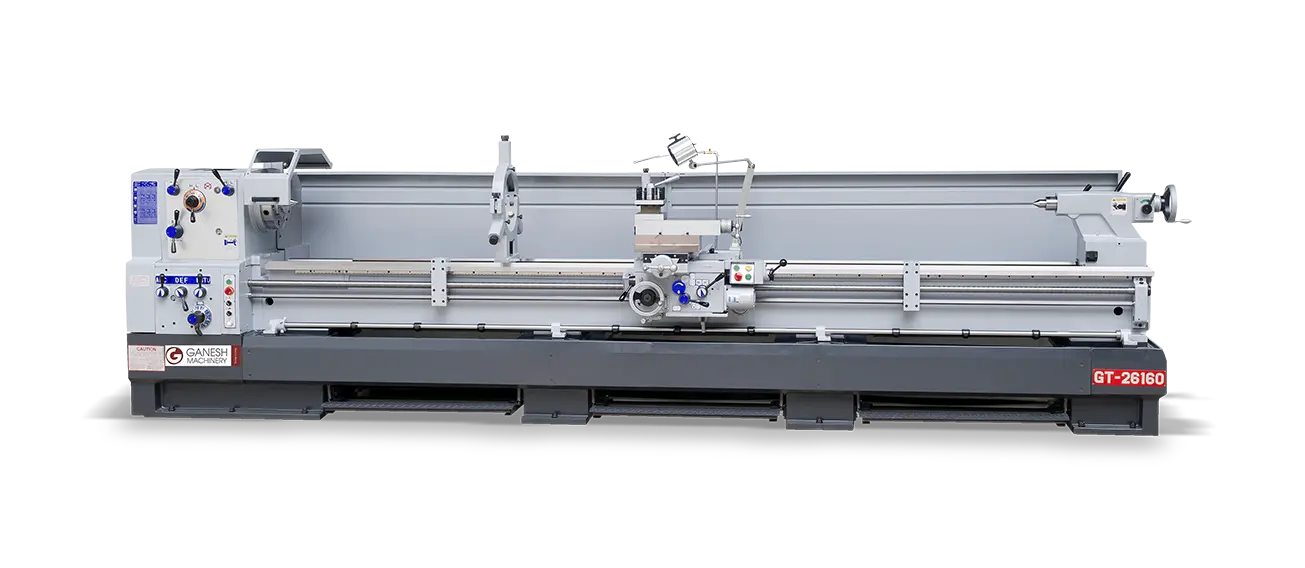

NEW EXPAND MACHINERY Ganesh GTW-26

Capacity & DimensionsSwing over Bed 26” (660 mm)
Center height 13” (330 mm)
Swing over Cross Slide 18-1/16” (460 mm)
Swing thru Gap 33-1/4” (845 mm)
Length of Gap in front of faceplate, D1-11 6-1/2” (165 mm)
Bed width 16-1/8” (400 mm)
Spindle- Spindle Motor Horsepower 15-HP 3-Ph 12kw
Spindle speeds – 12-speeds from 15 – 1200 rpm)
(High & Low speed range)
Spindle Bore 4-1/8” (105 mm)
Spindle Nose D1-11 Camlock (A1-11 optional)
Spindle taper in spindle nose MT-8 Morse Taper # 8
Spindle taper reduction sleeve provided MT-5 MT-8 to MT-5
Spindle Max weight capacity (Chuck only) 660 lbs. (300 kgs)
Spindle Max weight capacity (Chuck and Tailstock) 1,650 lbs. (750 kgs)
Spindle Max weight capacity (Chuck, Steady Rest and Tailstock) 3,300 lbs. (1,500 kgs)
Carriage -
Cross slide travel 14.96” (380 mm)
Cross slide width 7-3/32” (180 mm)
Cross slide lead screw pitch .200”/rev.
Cross slide resolution per division 0.001” (on diameters)
Carriage lead screw diameter 1-1/2” (38 mm)
Carriage lead screw pitch 4 TPI (6 mm pitch)
Compound- Four T-nut lock-down bolts on compound cross-slide base
Compound top slide travel 10” (255 mm)
Compound top slide width 4-11/32” (110 mm)
Cutting tool height maximum 1.0” x 1.0” 25 mm x 25 mm
Tailstock- (2-speed quill advance) Engraved with inch / metric quill graduations
Quill diameter 2-15/16” (75 mm)
Quill stroke 6-5/16” (160 mm)
Quill taper MT-5 Morse Taper # 5
Tailstock body set-over adjustment ±0.04” ± 1 mm
Thread CuttingThread cutting range – 60 inch pitches 2 – 112 TPI 2 – 112 TPI
Thread cutting range – 60 metric pitches 0.2 – 14 mm 0.2 – 14 mm
Thread cutting range – 50 diametral pitches 4 – 112 D.P. 4 – 112 D.P.
Thread cutting range – 50 module pitches 0.2 – 7 M.P. 0.2 – 7 M.P.
Feeds- (with clutched feed shaft for safety)
Feeds – longitudinal - 50 feeds 0.0014” – 0.0387”/rev. 0.037 – 1.04 mm/rev.
Feeds – cross - 50 feeds 0.0007” – 0.01935”/rev. 0.0185” – 0.52 mm/rev.
PowerPower Requirements 220 vac, 3-Phase, 40 amps (440 vac optional)
Coolant System 1/8-HP Pump Motor, 5 gallon (20L) tank capacity
