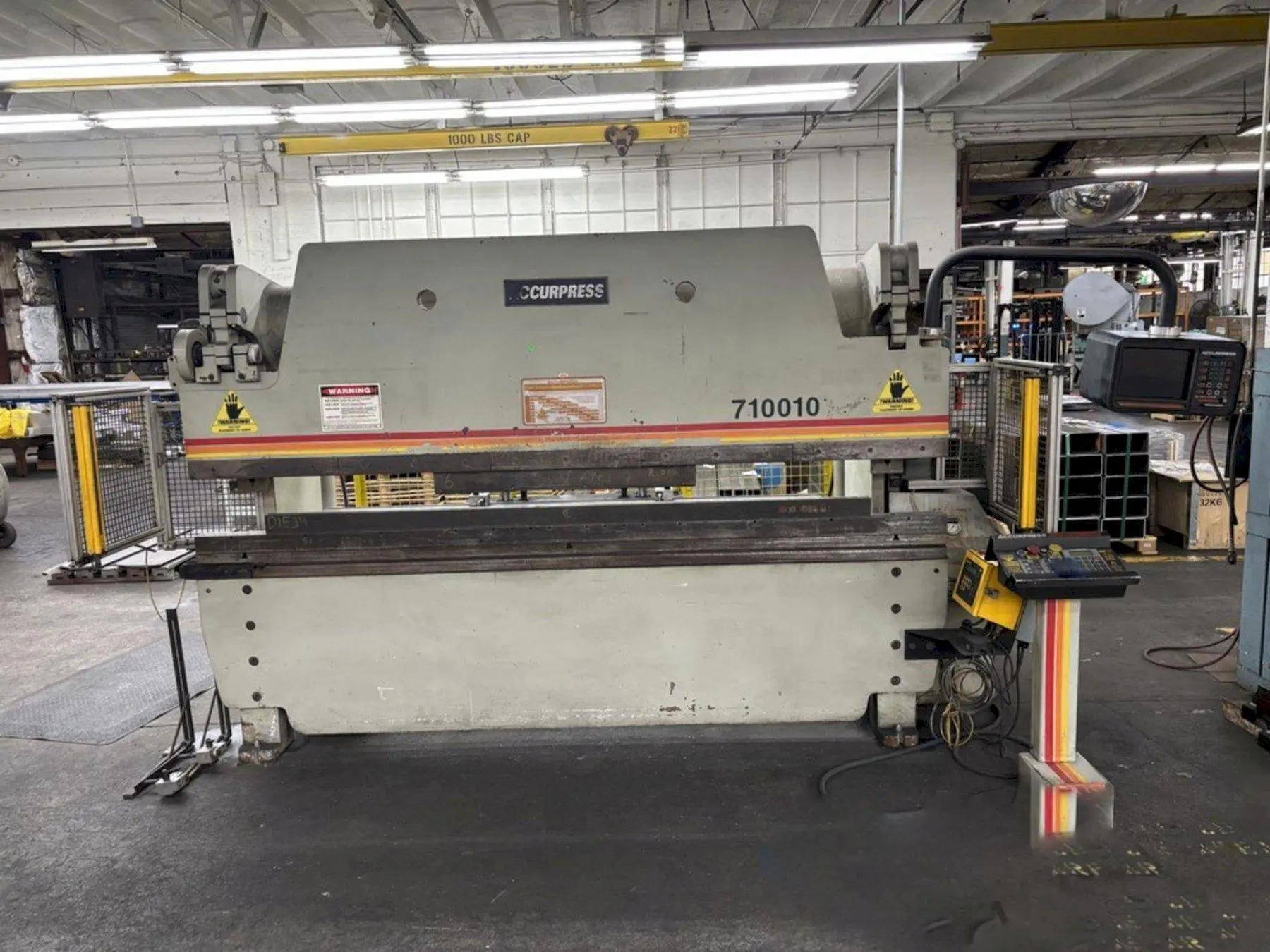

100 Ton x 10' ACCURPRESS HYDRAULIC PRESS BRAKE, Model 710010, Accurpress Control, 2-Axis Back Gauge, ETS Pendant, 10' Bed, 8'6" Between Housings, 8" Stroke, Down Acting-No Pit, New 1997. Tooling Included.
| # Axis | 2 | 2 |
| Tonnage Capacity | 100 T | 90.719 t |
| Type | Hydraulic | Hydraulic |
| Overall Length (Bed / Ram) | 10' | 3 m |
| Distance Between Housings | 100" | 2,540 mm |
| Throat Depth | 10" | 254 mm |
| Stroke Length | 8" Adjustable | 203.2 mm |
| Open Height | 14" | 355.6 mm |
| Closed Height | 6" | 152.4 mm |
| Bed Height | 34" | 863.6 mm |
| Pressing Speed | 24 in/min. | 609.6 mm/min. |
| Pressing Speed (Approach) | 115 in/min. | 2.9 m/min. |
| Pressing Speed (Return) | 230 in/min. | 5.8 m/min. |
| Drive Power | 10 hp | 7.5 kW |
| Electrics | 230/3/60 | 230/3/60 |
| Dimensions | 136" x 52" x 96" | 136" x 52" x 96" |
| Weight | 14,000 LBS | 14,000 LBS |
Accurpress CNC Gauge System Control with 2-Axis Back Gauge, ETS Pendant, Foot Pedal, Light Curtains, Down Acting -No Pit Required. Includes Tooling.
