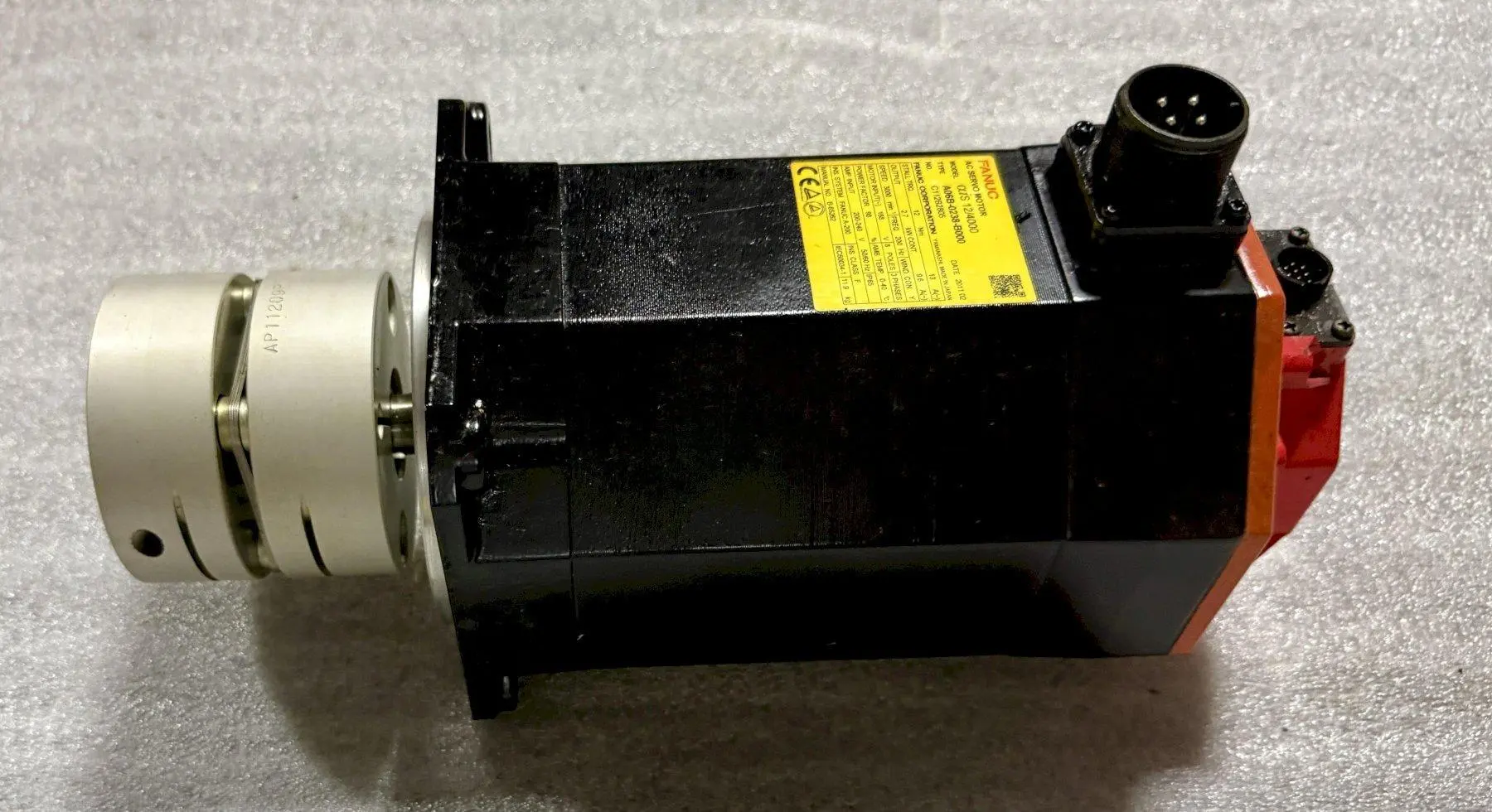

FANUC A06B-0238-B000 AC SERVO MOTOR, Model AiS 12/4000
| Current Type | AC | AC |
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 13 A | 13 A |
| Voltage | 168 V | 168 V |
| # Poles | 8 | 8 |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Factor | 98% | 98% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 2.9 hp | 2.1 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Encoder | PulseCoder AiA1000 Type A860-2000-T301 | PulseCoder AiA1000 Type A860-2000-T301 |
| Manual No | B-65262 | B-65262 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 16" x 12" x 11" | 16" x 12" x 11" |
| Weight | 32 LBS | 32 LBS |
Tapered Shaft
