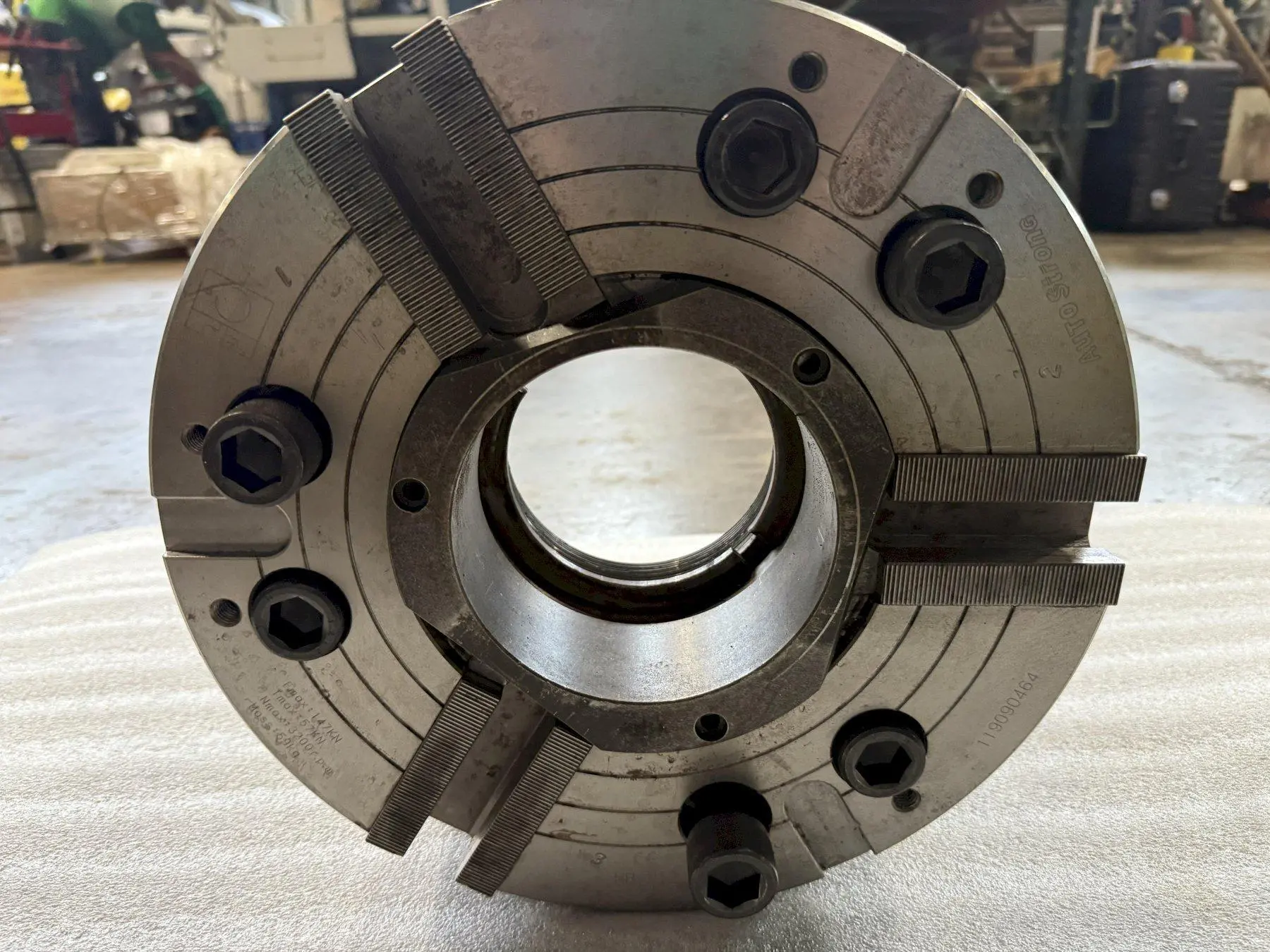

12" 3-JAW AUTO STRONG POWER CHUCK, 4-1/2" Through Hole
| # Jaws | 3 | 3 |
| Type of Actuation | Hydraulic | Hydraulic |
| Body Diameter | 12" | 304.8 mm |
| Body Height | 5.5" | 139.7 mm |
| Through Hole Diameter | 4.5" | 114.3 mm |
| Jaw Width | 2" | 50.8 mm |
| Jaw Height | 1.75" | 44.45 mm |
| Max Speed | 3,200 RPM | 3,200 RPM |
| Max Pull Force | 33,024.4 lbf | 146.9 kN |
| Max Grip Force | 12,819.4 lbf | 57 kN |
| Dimensions | 14 x 14 x 9 | 14 x 14 x 9 |
| Weight | 140 | 140 |
Type: Power
# Jaws: 3
Type of Actuation: Hydraulic
Body Diameter: 12"
Body Height: 5.5
Through Hole: yes
Through Hole Diameter: 4.5"
Jaw Width: 2"
Jaw Height: 1.75"
Max Speed: 3,200 RPM
Max Pull Force: 147 kN
Max Grip Force: 57 kN
Thread Nut: 2.0
Approximate Dimensions: 14" x 14" x 9"
Approximate Weight: 140 LBS
