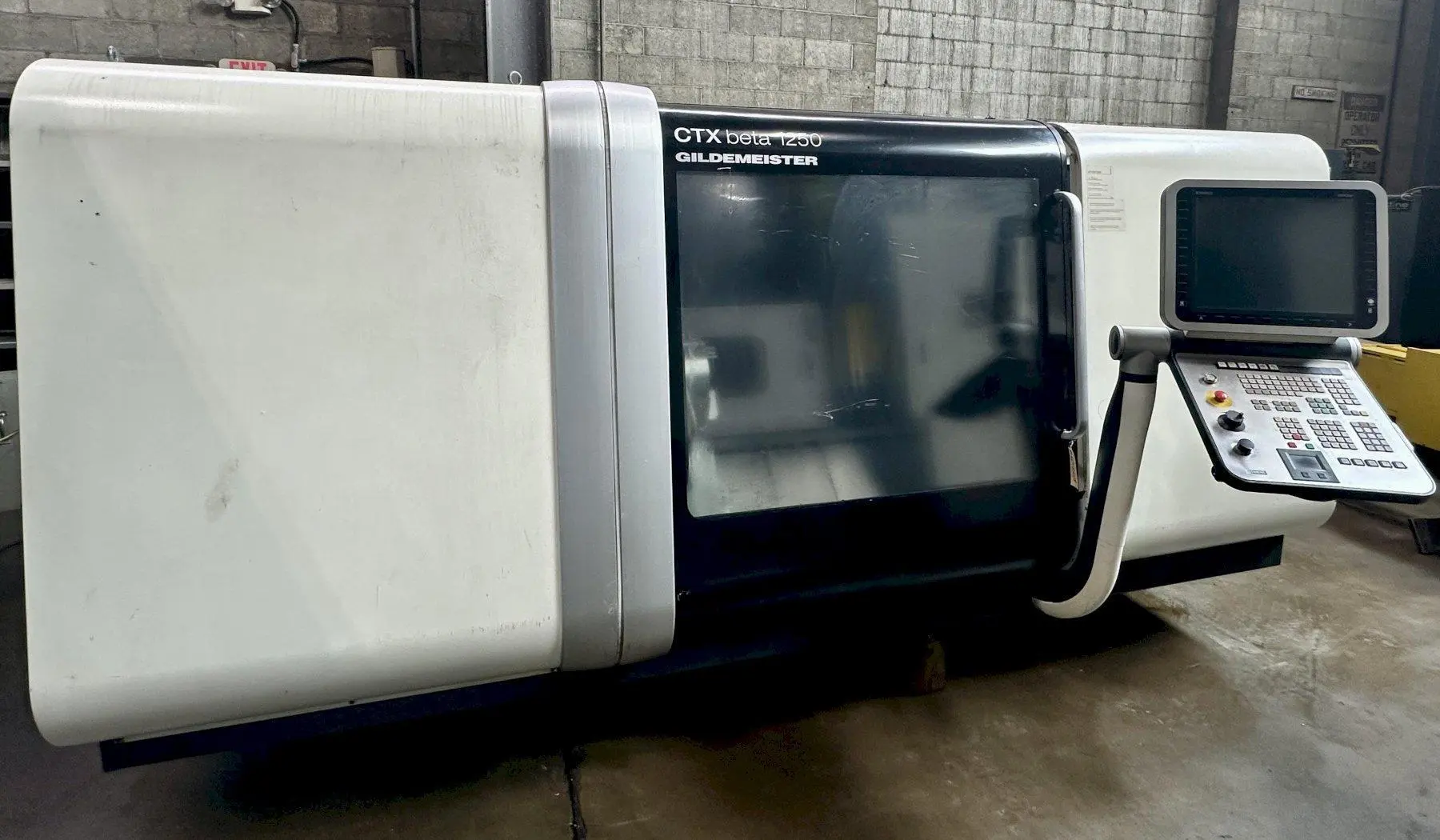

USED 2010 DMG Gildemeister CTX BETA 1250

USED 2010 DMG Gildemeister CTX BETA 1250

Name: USED 2010 DMG Gildemeister CTX BETA 1250
Brand: GILDEMEISTER
SKU: 165580
Availability: InStock

Great American Equipment Company

Ohio US

Overview

Type:

CNC Lathes

Manufacturer:

GILDEMEISTER

Model:

CTX Beta 1250

Year:

2010

Stock #:

Q12018

Description

DMG GILDEMEISTER CTX BETA 1250 CNC TURNING CENTER, Siemens 840D CNC Control, 12" 3-Jaw Chuck, 27.6" Swing, 56.1" Between Centers, 12-Position Live Tooling Turret, 46.9 HP, 4000 RPM, Tool Setter, Chip Conveyor & Coolant System, New 2010.

Specifications

ImperialMetric

CNC Control	Siemens 840D SL CNC	Siemens 840D SL CNC
# Axis	2	2
Max Swing Over Bed	27.6"	701.04 mm
Max Swing Over Cross Slide	14.9"	378.46 mm
Max Turning Length	49.2"	1,249.7 mm
Chuck Size	12"	304.8 mm
Max Distance Between Centers	56.1"	1,424.9 mm
Max Turning Diameter	16.1"	408.94 mm
Max Part Weight	1,461 lb	662.7 kg
X-Axis (Cross Travel)	11.8"	299.72 mm
Z-Axis (Longitudinal Travel)	51.2"	1,300.5 mm
X-Axis Feed Rates	899 - 1687 in/min	42.8 m/min.
X-Axis Rapid Traverse Rate	2,362.2 in/min.	60 m/min.
Z-Axis Feed Rates	899 - 1687 in/min.	42.8 m/min.
Z-Axis Rapid Traverse Rate	1181 - 2362 in/min.	60 m/min.
Sub Spindle	No	No
# Tool Turrets	1	1
Tool Turret Capacity	12 station	12 station
Live Tooling	Yes	Yes
Spindle Nose	FL 220 h5	FL 220 h5
Max Spindle Speed	4,000 RPM	4,000 RPM
Spindle Power	46.9 hp	35 kW
Tailstock	Yes	Yes
Tailstock Taper	MK 5	MK 5
Tailstock Travel	47.2"	1,198.9 mm
Tailstock Quill Diameter	4.7"	119.38 mm
Machine Hours	10605	10605
Electrics	480/3/60	480/3/60
Dimensions	190" x 93" x 81"	190" x 93" x 81"
Weight	16,865 LBS	16,865 LBS

Y- Axis Travel: ± 2.36"

Equipped With

DMG Mori ERGOline® Control with Siemens Sinumerik 840DI, 12" 3-Jaw Chuck, 12" Position Tool Turret with Live Tooling, C-Axis & Y-Axis, Prepped for Steady Rest, Heavy Duty 45° Slant Bed Construction, Paper Filtration Coolant System, Chip Conveyor.
