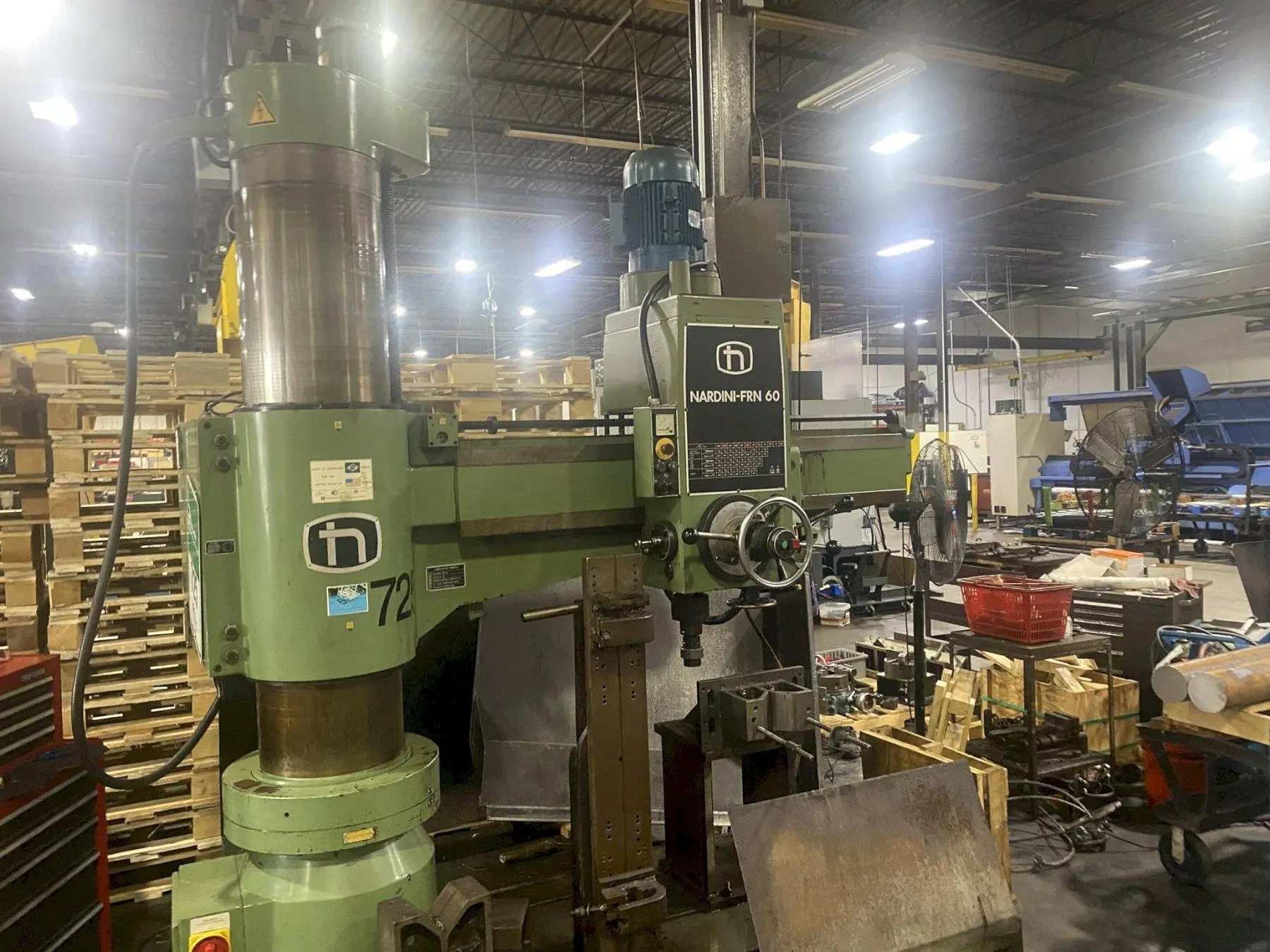

USED 1985 Nardini FRN 60-1250

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Radial Drills

5' x 15" NARDINI FRN 60 RADIAL ARM DRILL, 1450 RPM, MT5 Taper, 10 HP, 24" x 32" Table, Power Elevation, Tapping & Threading, Coolant in Base, New 1985.

Specs
Arm Length
5'
1.5 m
Column Diameter
15"
381 mm
T-Slotted Box Table Size-L
24"
609.6 mm
T-Slotted Box Table Size-W
32"
812.8 mm
Max Spindle Radius
63"
1,600.2 mm
Spindle Taper
MT5
MT5
# Spindle Speeds
12
12
Max Spindle Speed
1,450 RPM
1,450 RPM
Min Spindle Speed
29 RPM
29 RPM
Motor Power
10 hp
7.5 kW
Electrics
220/3/60
220/3/60

Drilling in Solid Steel: 2.36"
Drilling in Cast Iron: 3.15"
Boring in Steel: 3.94"
Boring in Cast Iron: 4.72"
Tapping in Steel: 1.97'
Tapping in Cast Iron: 2.75"
Arm Elevating Motor Power: 2 HP

Equipped With

Power Arm Elevation, Power Clamping, Rapid Traverse on Head, Tapping/Threading Capabilities, Plain-Type Base, Hardened Column, Coolant System (Built-In).
