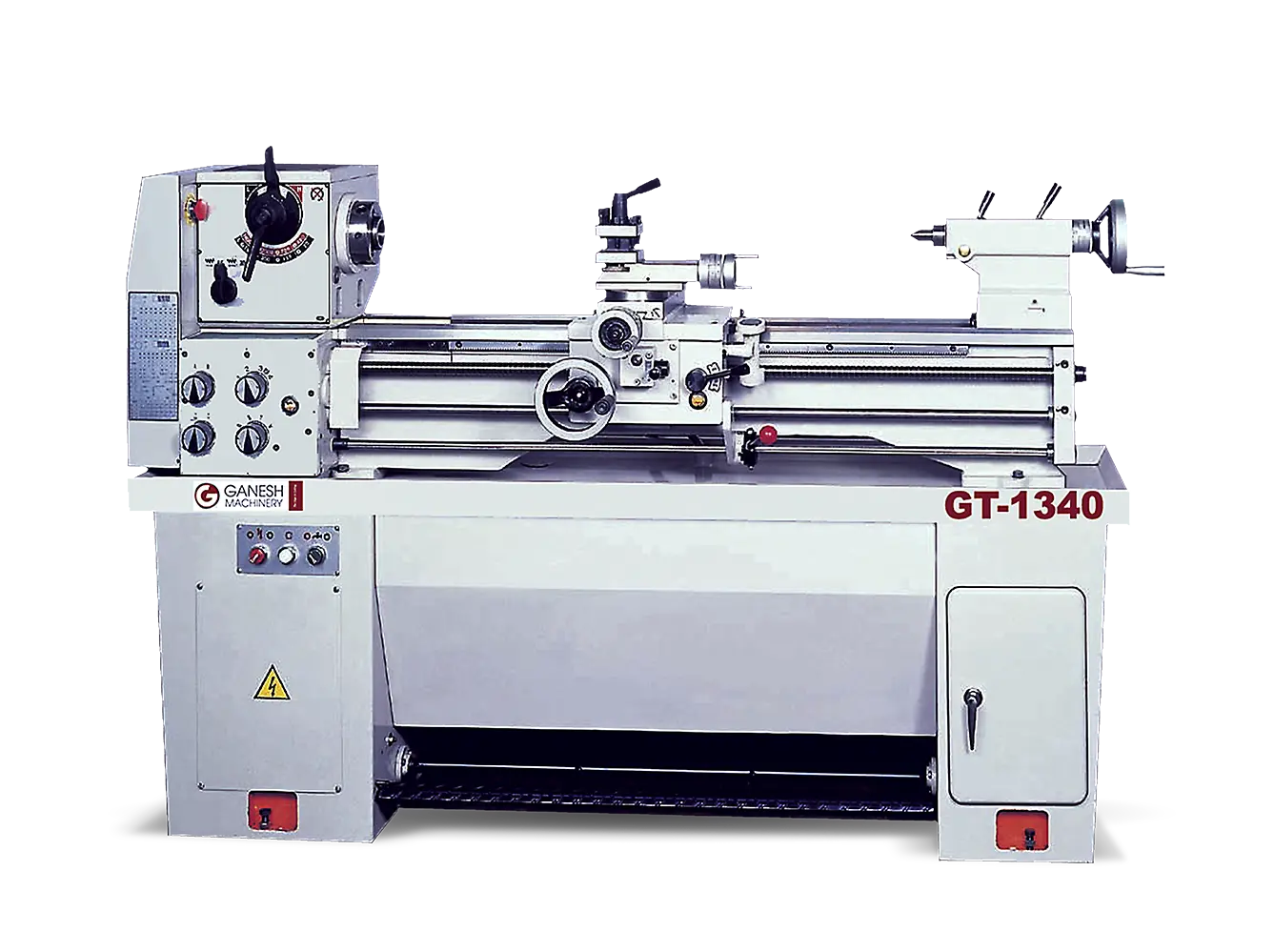

NEW EXPAND MACHINERY Ganesh GTW-13

MACHIINE SPECIFICATIONS: GTW-1340
Capacity & Dimensions -
Swing over Bed 13”
Center height 6-1/2”
Swing over Cross Slide 7-25/32”
Swing thru Gap 18-3/4”
Length of Gap in front of face plate, D1-4 4-1/2”
Distance between Centers 40”
Bed casting width, length, depth 7-3/8”, 65-1/8”, 11-13/32”
Spindle - Spindle Motor Horsepower 3-HP
Spindle speeds – 8-speed geared head 70 – 2000 rpm

Spindle Bore 1-1/2”
Spindle Nose D1-4
Spindle taper in spindle nose MT-5 Morse Taper-5
Carriage -
Cross slide travel 6 - 5/16” 160 mm
Cross slide width 4 – 5/8” 118 mm
Cross slide lead screw pitch 8 TPI
Cross slide resolution per division 0.25”/rev. (On diameters)
Carriage lead screw diameter / pitch 7/8” / 8 TPI 22 mm / 3 mm pitch
Feed rod dimension 3/4” hexagon 19 mm hexagon
Compound -
Compound top slide travel 2-11/16” 68 mm
Compound top slide width 3” 76 mm
Cutting tool height maximum 5/8” x 5/8” 16 mm x 16 mm
Tailstock - Engraved with inch / metric quill graduations
Quill diameter 1-21/32” 42 mm
Quill stroke 4-1/2” 114 mm
Quill taper MT-3 Morse Taper #3
Quill tang drive and drift-slot for tailstock included
Tailstock body set-over adjustment ±0.04” ± 1 mm
Thread Cutting - Thread cutting range – 31 inch pitches 4 – 56 TPI
Thread cutting range – 26 metric pitches 0.4 – 7 mm
Thread cutting range – 32 diametral pitches 8 – 120 D.P. (optional)
Thread cutting range – 21 module pitches 0.2 – 3 M.P. (optional)
Feeds - (With Clutched Feed Shaft for Safety)
Feeds – longitudinal - 32 feeds 0.002” – 0.548”/rev.
Feeds – cross - 32 feeds 0.0007” – 0.0187”/rev.
Weight & Dimensions -
Machine Dimensions – L x W 76-3/8” x 29-3/4” (1940 x 755 mm)
Machine height 48-3/4” 1238 mm
Overall machine weight 1345 lbs. 610 kgs
Electrical power requirements 220 volts, 3-Phase @ 8.50 amps
