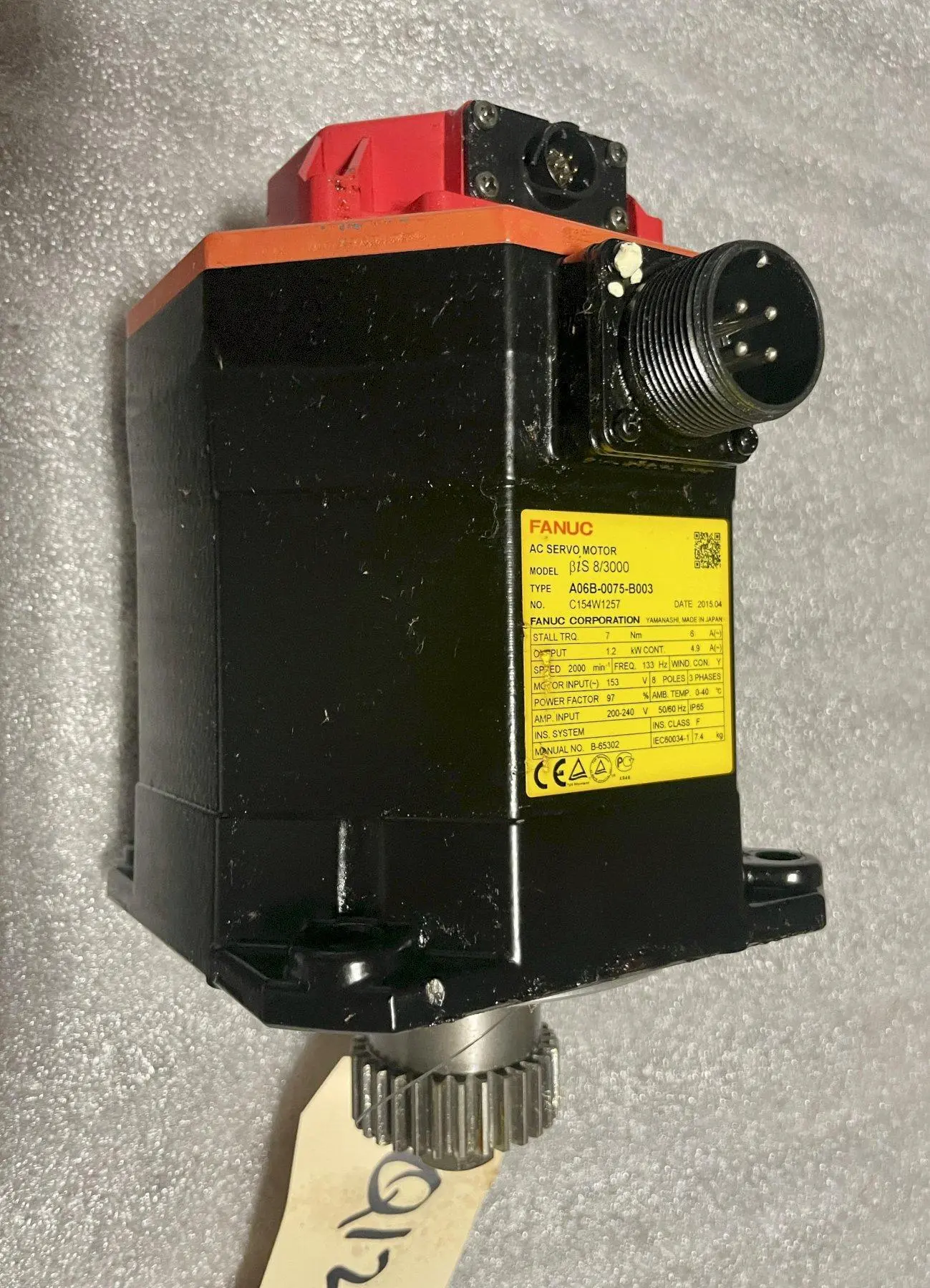

FANUC A06B-0075-B003 AC SERVO MOTOR, Model BiS 8/3000, 240 V, 2000 RPM.
| Current Type | AC | AC |
| Torque (Stall) | 7 N | 1.6 lbf |
| Amp (Stall) | 6 A | 6 A |
| Voltage | 200-240 V | 0 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Rating | Continuous | Continuous |
| Power Factor | 97% | 97% |
| Frequency | 50/60 Hz | 5,060 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 65 | IP 65 |
| Encoder | A860-2020-T301 | A860-2020-T301 |
| Manual No | B-65302 | B-65302 |
| Standards | IEC60034-1 | IEC60034-1 |
| Dimensions | 12" x 10" x 11" | 12" x 10" x 11" |
| Weight | 21 LBS | 21 LBS |
Tapered Shaft, B128IA Key
