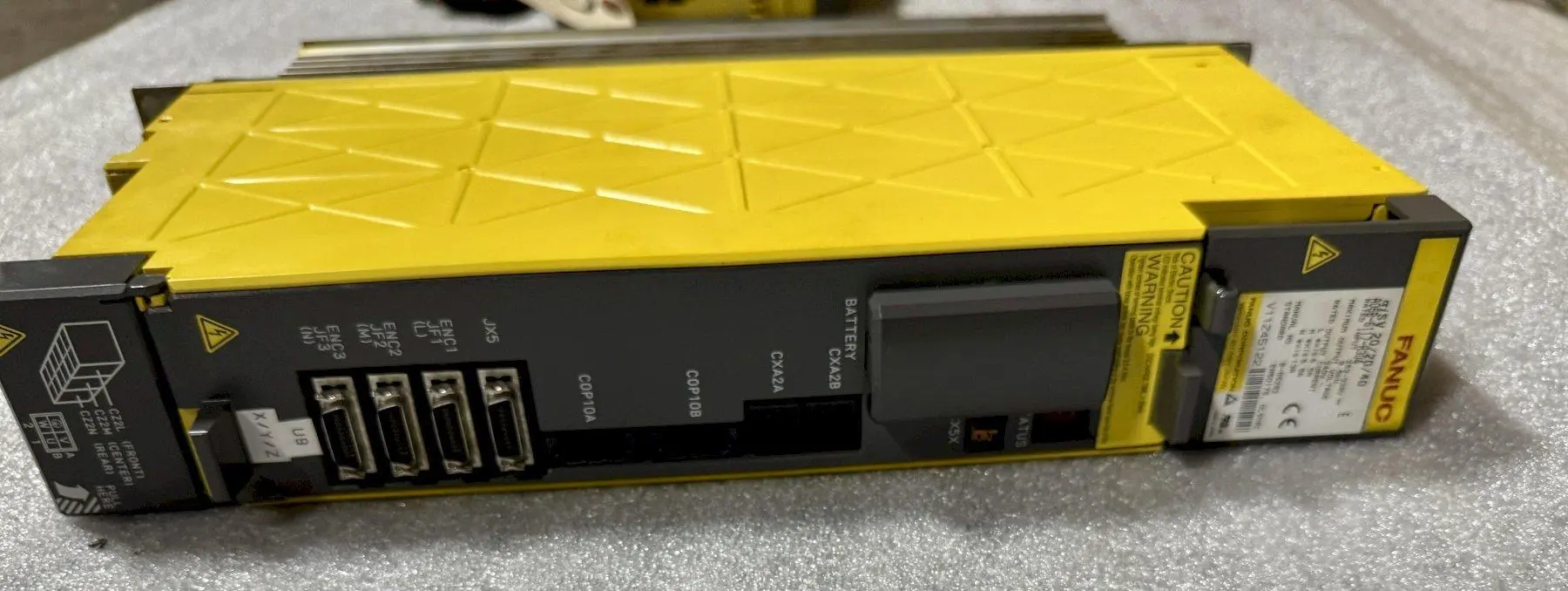

FANUC A06B-6117-H304 SERVO MODULE, Model AiSV 20/20/40
| Mfr Part Number | A06B-6117-H304 | A06B-6117-H304 |
| Product Type | Servo Module | Servo Module |
| Function | Control | Control |
| # Axis | 3 | 3 |
| Rated Input | 283 - 339 VDC (9.5 kW) | 9.5 kW |
| Input Voltage | 283 V | 283 V |
| Output Voltage | 240 VAC | 240 V |
| L-Axis Rated Output Current | 6.5 A | 6.5 A |
| M-Axis Rated Output Current | 6.5 A | 6.5 A |
| N-Axis Rated Output Current | 13 A | 13 A |
| Rated Output Current | 26 A | 26 A |
| Phase - Electrical | 3-Phase | 3-Phase |
| Manual No | B-65282 | B-65282 |
| Standards | EN50178, UL508C | EN50178, UL508C |
| Dimensions | 19" x 16" x 8" | 19" x 16" x 8" |
| Weight | 14 LBS | 14 LBS |
