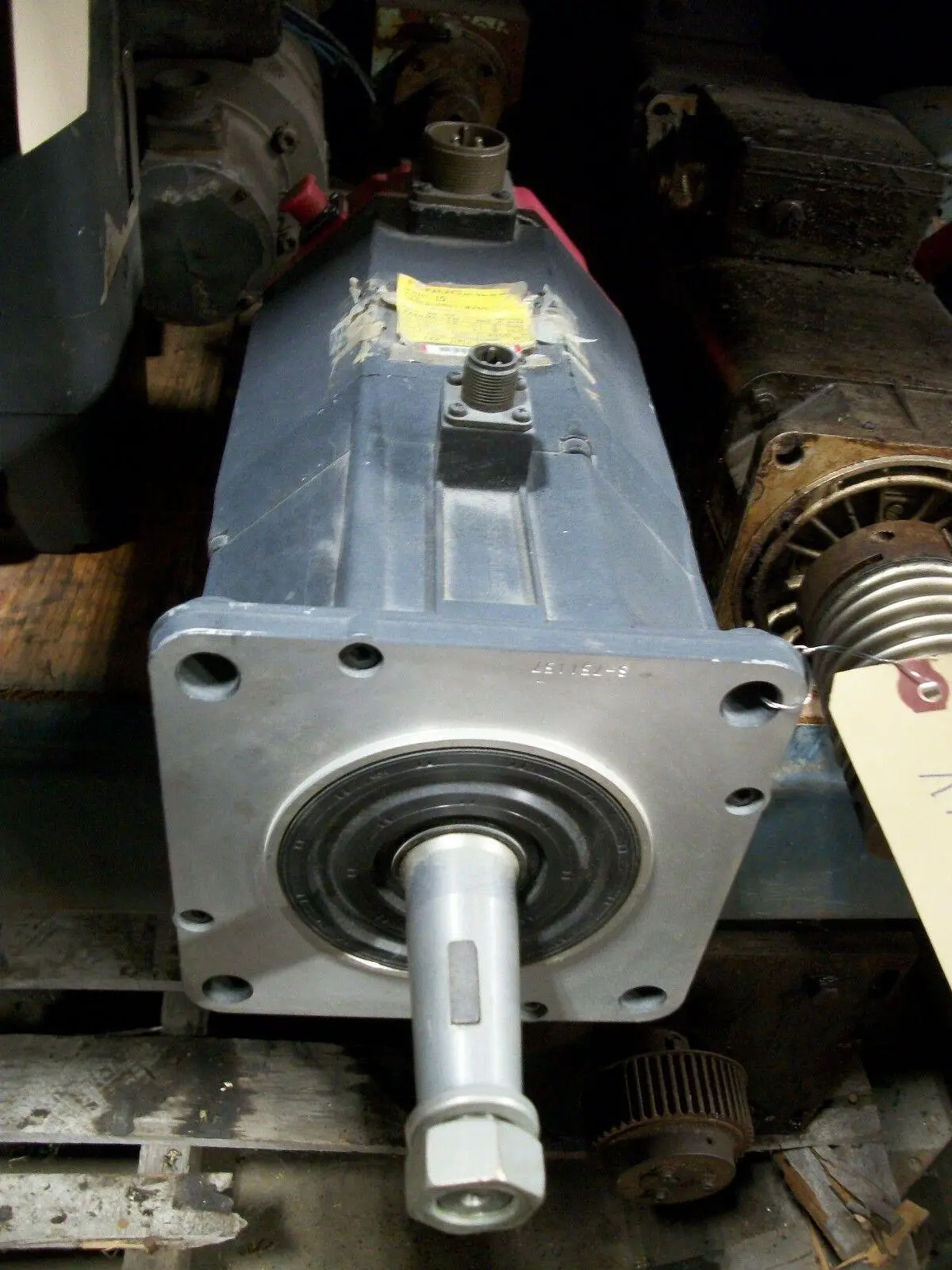

Fanuc Servo Motor Model 10 A06B-0501-B755
| Current Type | AC | AC |
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 11 A | 11 A |
| Voltage | 144 V | 144 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 40°C | 104°F |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Encoder | Serial A Pulse | Serial A Pulse |
| Dimensions | 21" x 9" x 11" | 21" x 9" x 11" |
| Weight | 59 LBS | 59 LBS |
Tapered Shaft, Brake
