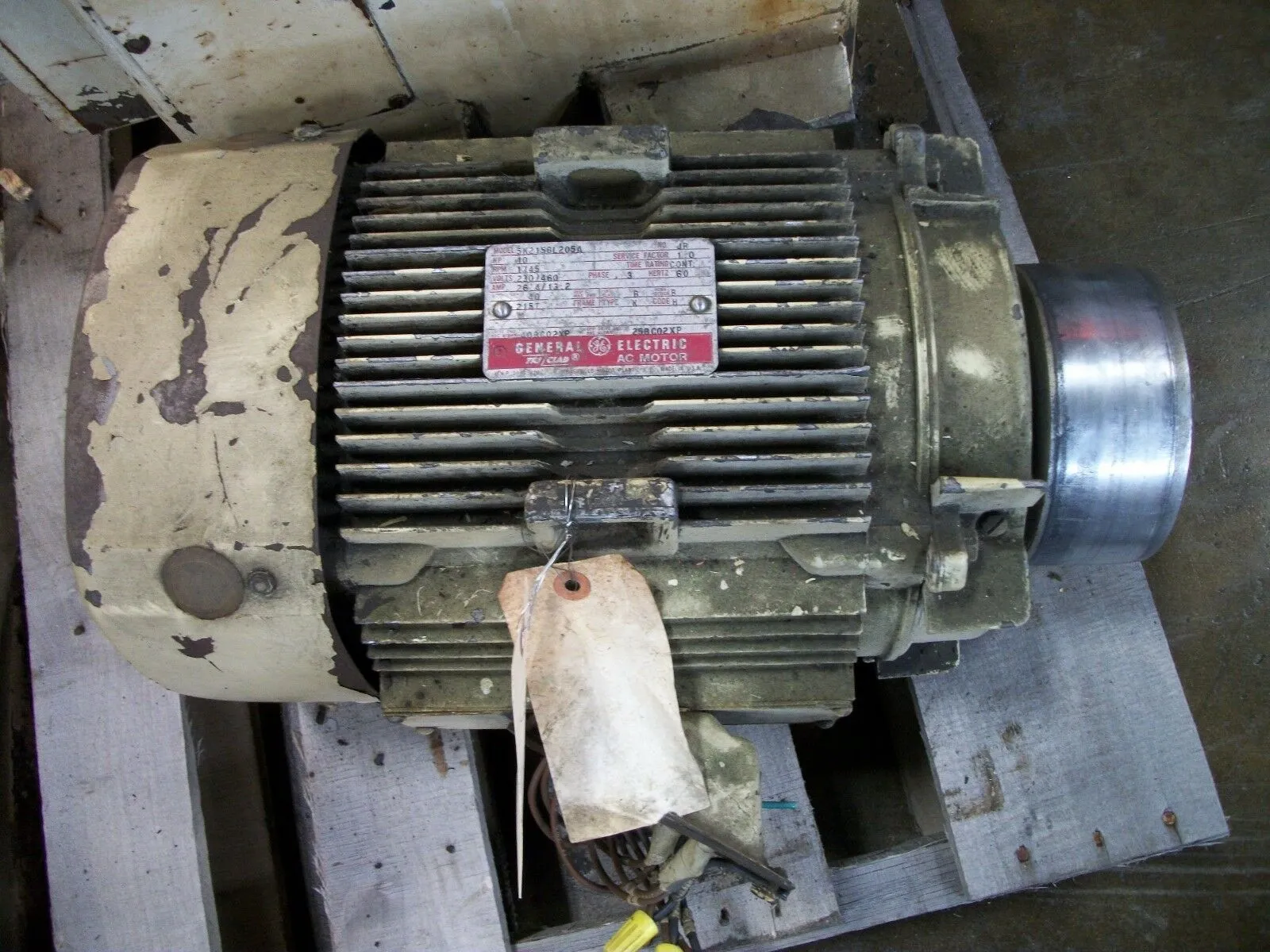

USED General Electric 5K215BL 205A
USD $750.00
Overview
Description
10 HP GE AC Motor 5K215BL205A 1745 RPM 230/460 V 3 Phase
Specifications
| AC Motor Type | Induction | Induction |
|---|---|---|
| Motor Power | 10 hp | 10 hp |
| Actual Rated Input Voltage | 230,460 V | 230,460 V |
| Full Load Amps | 26.4 A | 26.4 A |
| Base Speed | 1,745 RPM | 1,745 RPM |
| Frame | 215T | 215T |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 1 | 1 |
| NEMA KVA Code | H | H |
| NEMA Design Letter | B | B |
| Insulation Class | B (Max 130° C / 266° F) | B (Max 130° C / 266° F) |
| Ambient and Time Rating | 40°C AMB-CONT | 40°C AMB-CONT |
| Drive End (DE) | 40BC02XP | 40BC02XP |
| Opposite Drive End (ODE) | 25BC02XP | 25BC02XP |
Motor Horsepower: 10 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 26.4 / 13.2 A
Base Speed: 1,745 RPM
Frame: 215T
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.0
NEMA KVA Code: H
NEMA Design Letter: B (General Purpose)
Insulation Class: B (Max 266°F)
Ambient and Time Rating: 40°C AMB-CONT
Drive End (DE): 40BC02XP
Opposite Drive End (ODE): 25BC02XP
Current Type: AC
