USED Siemens 1FT5074-0AC01-0-Z, CMI #1-606-0730
USD $1,950.00
Overview
Description

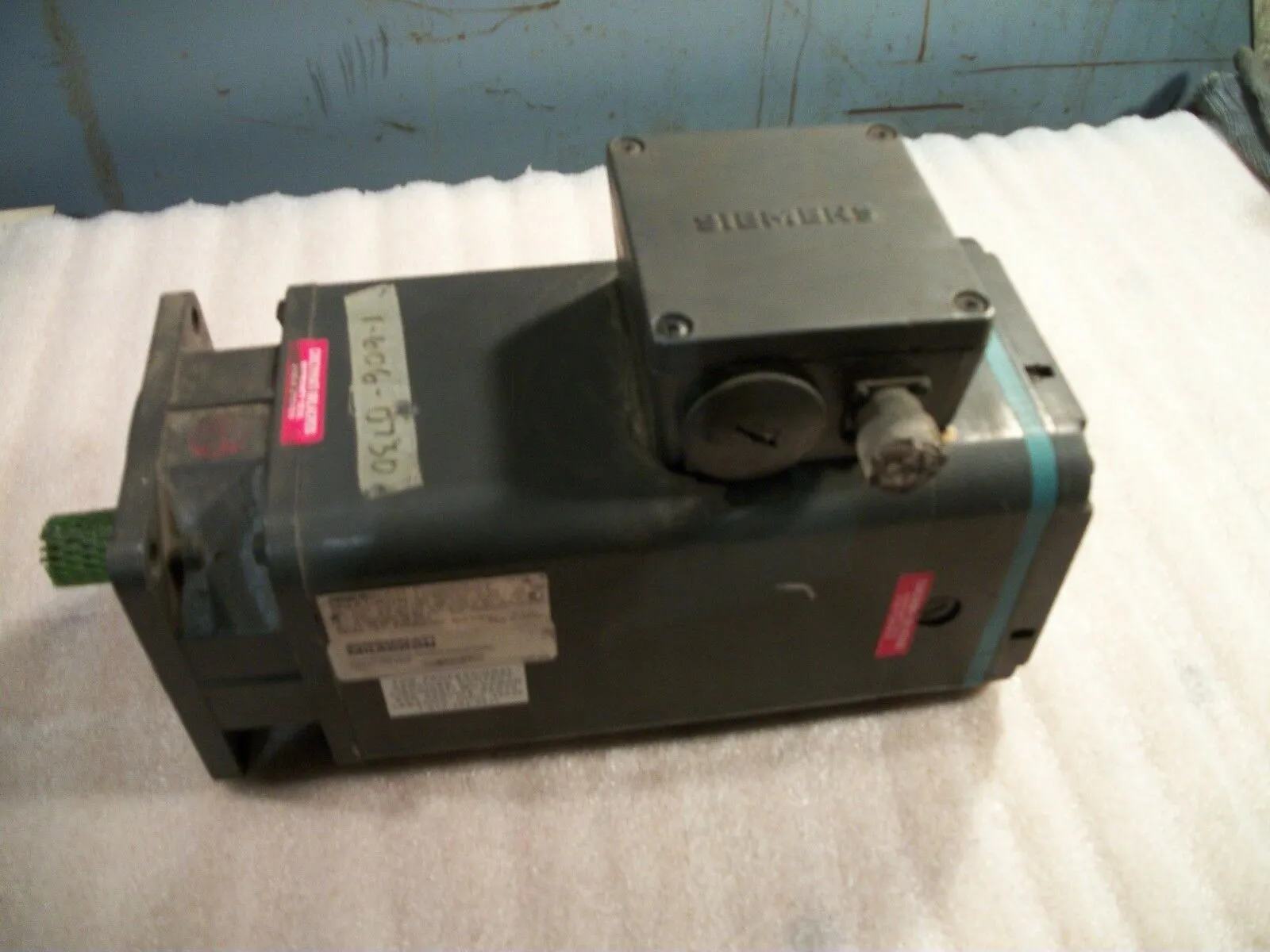

Siemens Servo Motor 1FT5074-0AC01-0-Z Milacron # 1-606-0730
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 18 N | 4 lbf |
| Amp (Stall) | 27 A | 27 A |
| Voltage | 150 V | 150 V |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Efficiency | IEC 71 | IEC 71 |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Motor Mounting Code | IM B5 | IM B5 |
| Standards | VDE 0530 | VDE 0530 |
| Dimensions | 17" x 8" x 10" | 17" x 8" x 10" |
| Weight | 43 LBS | 43 LBS |
Equipped With
Permanent Magnet Motor, 3-Phase Tacho, 1 FU1050-6AC, 20 mVmin Voltage constant phase-to-phase, VDE 0530, ΔT = 100° C, PTC Thermistor 155° C, Z: H19.
