USED Siemens 1FT5104-0AC01-0-Z , 1-606-1040
USD $1,500.00
Overview
Description

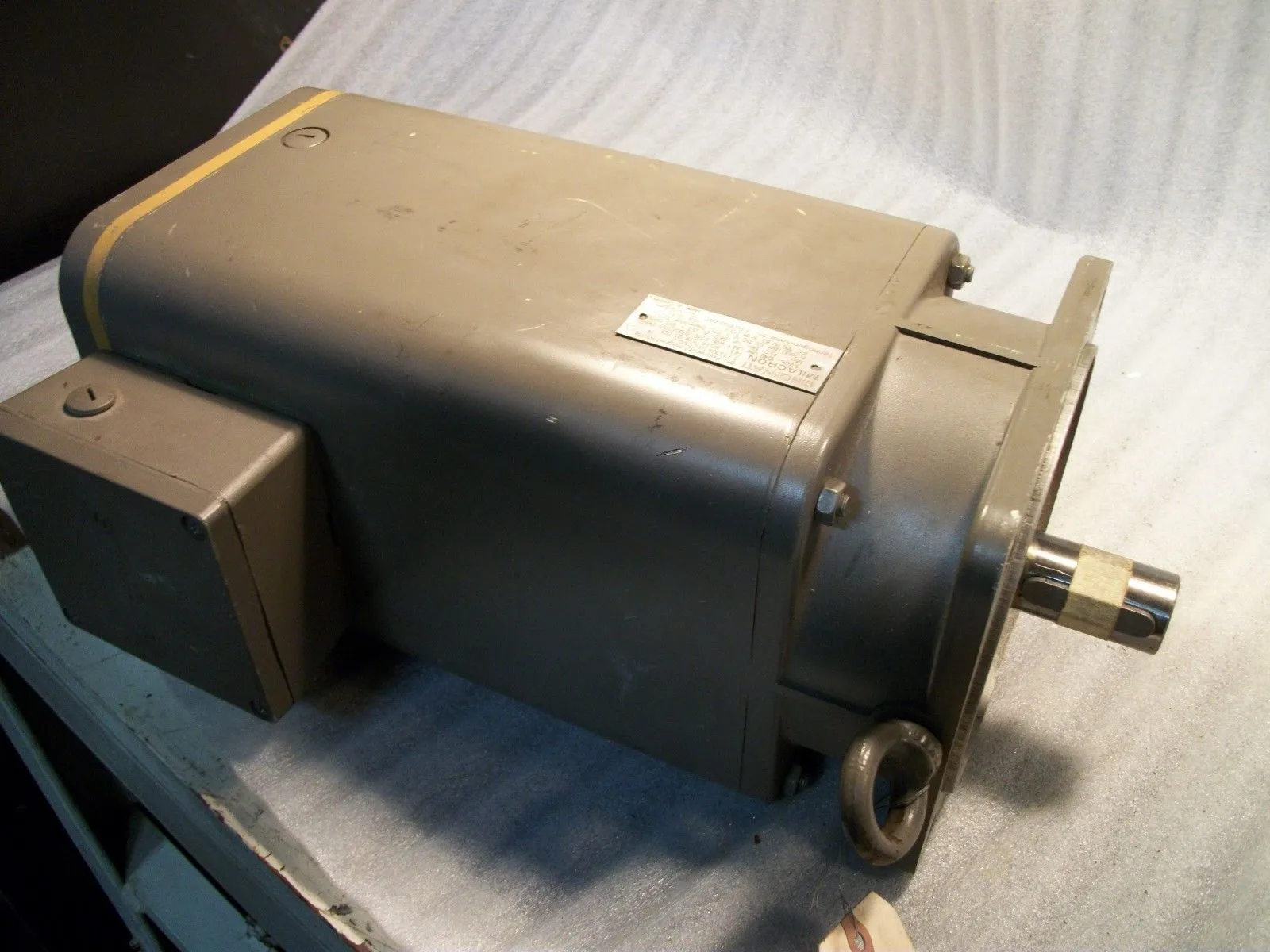

Siemens AC Servo Motor 1FT5104-0AC01-0-Z, Cincinnati Milacron #1-606-1040
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 45 N | 10.1 lbf |
| Amp (Stall) | 68 A | 68 A |
| Voltage | 150 V | 150 V |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Motor Mounting Code | IM B5 | IM B5 |
| Dimensions | 21" x 10" x 12" | 21" x 10" x 12" |
| Weight | 91 LBS | 91 LBS |
Equipped With
Permanent Magnet Motor
3-Phase Tachogenerator
1 FU1050-6AC
20.0 V/kRPM
VDE 0530
ΔT = 100° C
PTC Thermistor 155° C
NOTE: Use ONLY with 1-230-0700/0759 Drives
