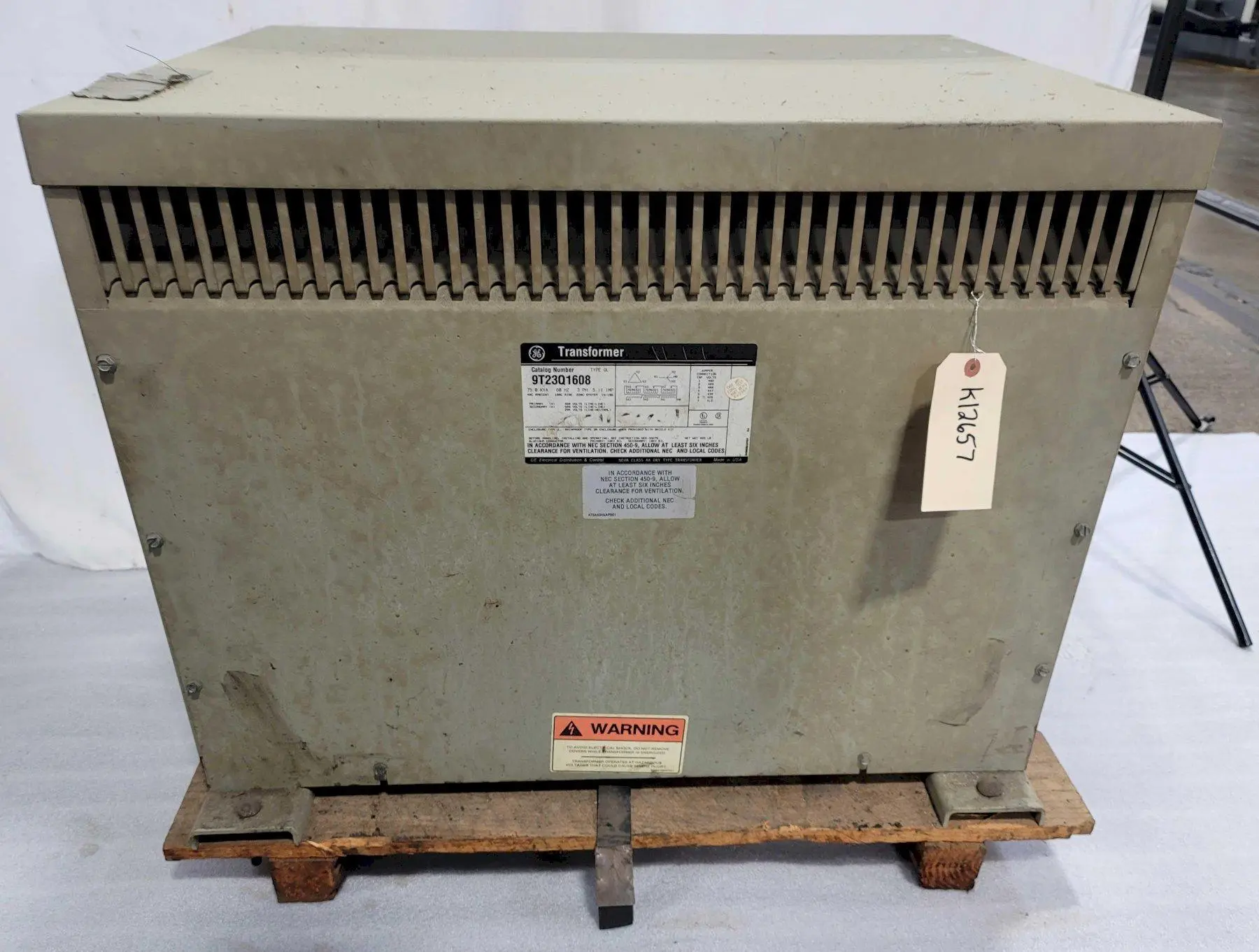

75 KVA GENERAL ELECTRIC TRANSFORMER, Model 9T23Q1608, 3-Phase, 460 Volt Input Delta, 509 Volt Output Line to Line Y, 294 Volt Line to Ground, 60 Hz, Multi Tap, Dry Type.
| Catalog Number | 9T23Q1608 | 9T23Q1608 |
| Phase - Electrical | 3 | 3 |
| Primary Input Voltage | 460 V | 460 V |
| Secondary Output Voltage | 509 V | 509 V |
| VA Rating | 75 kVA | 75 kV·A |
| NEMA Class | AA Dry Type | AA Dry Type |
| Frequency | 60 Hz | 60 Hz |
| Temp Class | 428°F | 220°C |
| Temp Rise | 302°F | 150°C |
| % Impedance | 5.1% | 5.1% |
| Enclosure Rating | 2 | 2 |
| Enclosure Type | Dry Type | Dry Type |
| Dimensions | 33" x 27" x 28" | 33" x 27" x 28" |
| Weight | 465 LBS | 465 LBS |
Came from a running Machining Center. Multi tap for 412 - 482
