USED Fanuc A06B-0501-B201#7073
USD $1,450.00
Overview
Description

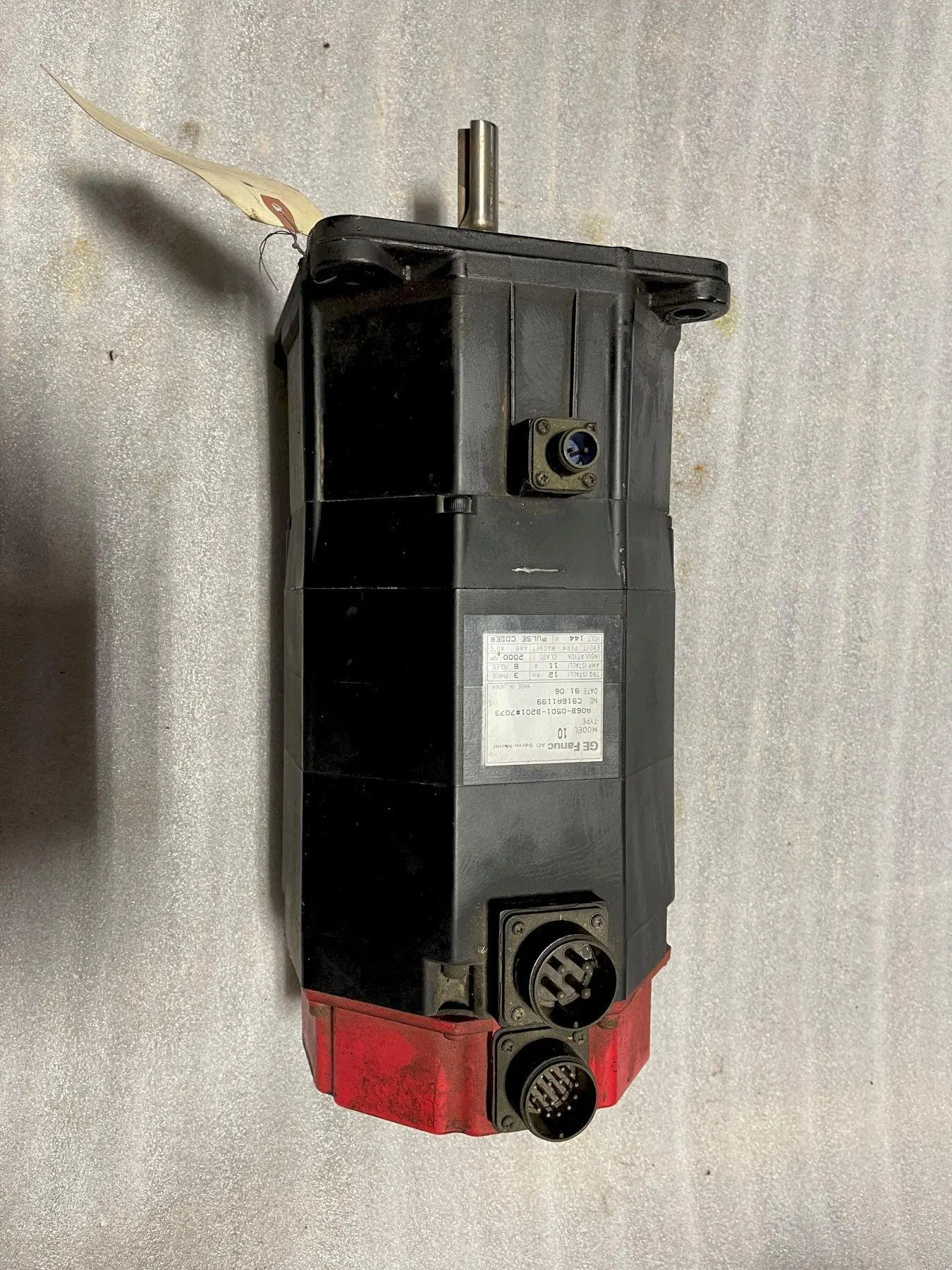

GE FANUC V-GROOVE AC SERVO MOTOR, Model 10, Part No A06B-0501-B201#7073.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 11 A | 11 A |
| Voltage | 144 V | 144 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Power Rating | 1.5 | 1.5 |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 2 hp | 1.5 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 67 | IP 67 |
| Encoder | incremental encoder with 2000 pulses per revolution | incremental encoder with 2000 pulses per revolution |
| Dimensions | 20" x 10" x 10" | 20" x 10" x 10" |
| Weight | 60 LBS | 60 LBS |
Equipped With
Straight Shaft, Brake
