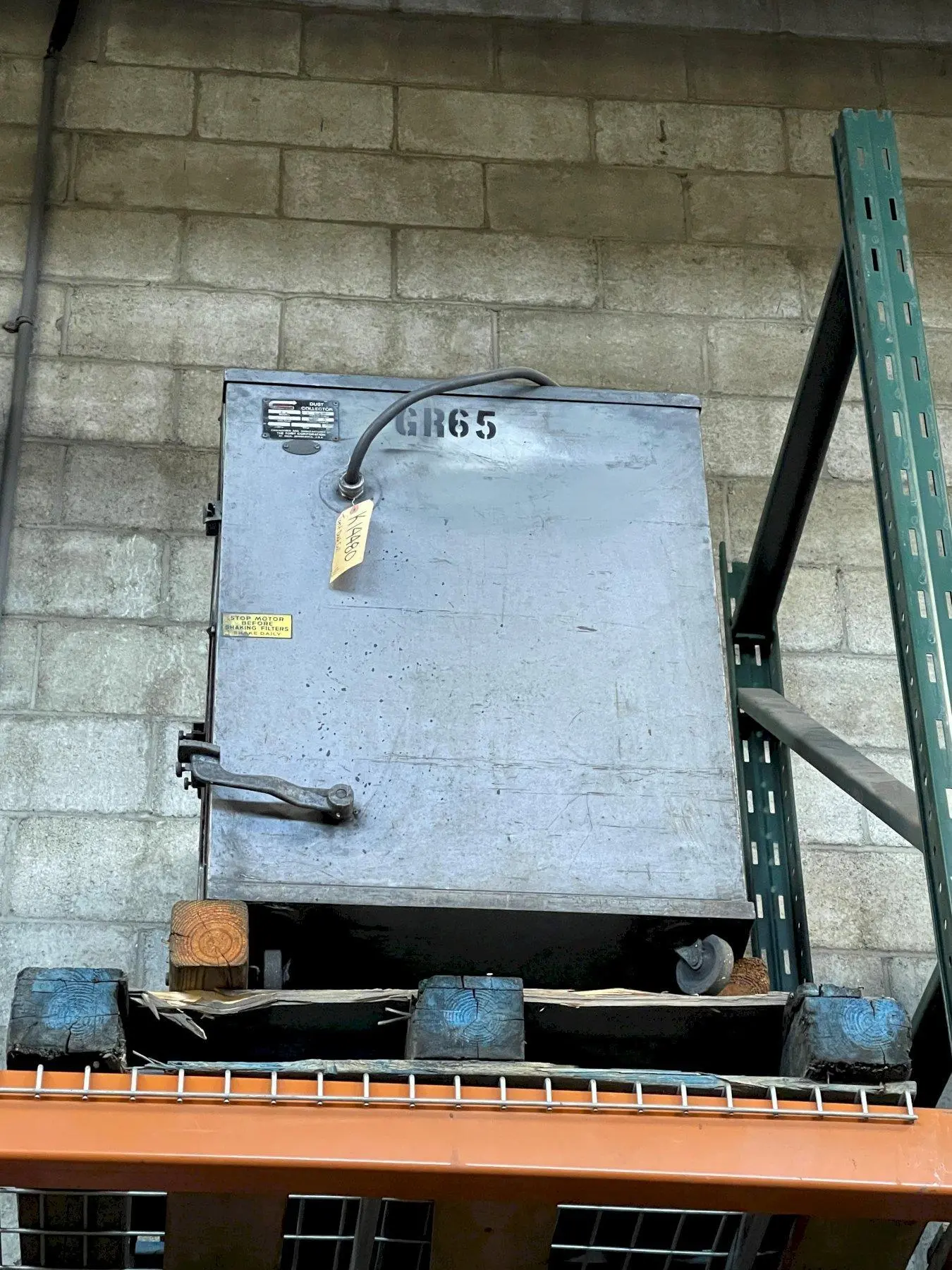

TORIT 64 DUST COLLECTOR, 500 CFM, .75 HP, 4" Inlet Diameter, 230/460/3/60 Electrics.
| Flow Rate | 500 ft³/min. | 500 ft³/min. |
| Power | 0.8 hp | 0.6 kW |
| Dimensions | 22" x 27" x 40" | 22" x 27" x 40" |
| Weight | 170 LBS | 170 LBS |
Inlet Diameter: 4"
Velocity: 5,720 FPM
Filter Area: 60 Sq Ft
Dust Drawer Volume: 0.43 Cu Ft
Motor Horsepower: 3/4 HP
Actual Rated Input Voltage: 230/460
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Motor Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
See attached files
