USED 1994 Fanuc A06B-0315-B074#7008
USD $950.00
Overview
Description

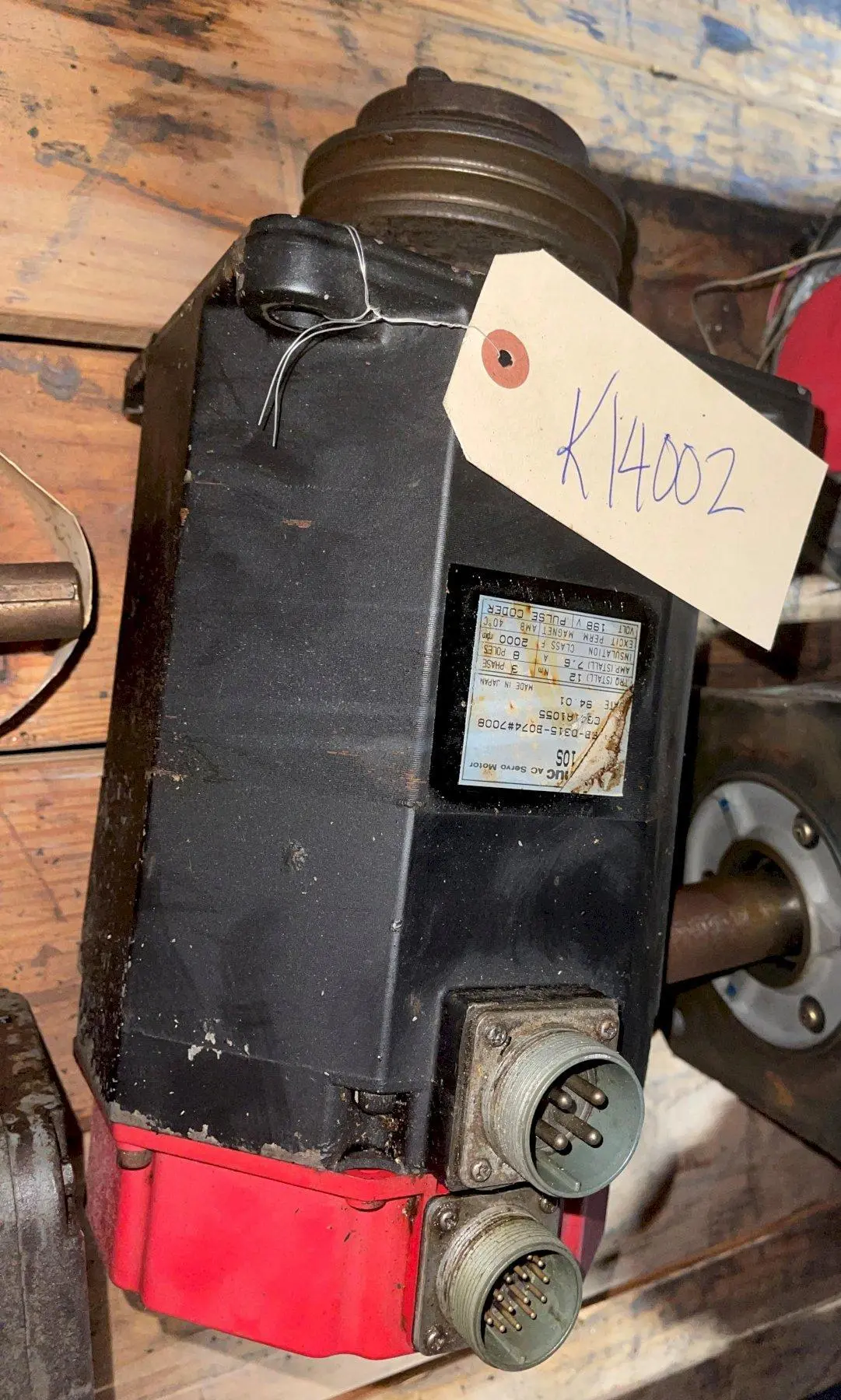

FANUC AC SERVO MOTOR, Model 10S, Part # A06B-0315-B074#7008
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 7.6 A | 7.6 A |
| Voltage | 198 V | 198 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 104°F | 40°C |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Encoder | Serial C Pulse Coder | Serial C Pulse Coder |
| Motor Mounting Code | Straight Shaft | Straight Shaft |
| Dimensions | 9" x 11" x 16" | 9" x 11" x 16" |
| Weight | 50 LBS | 50 LBS |
Equipped With
Straight Shaft
Serial C Pulse Coder
