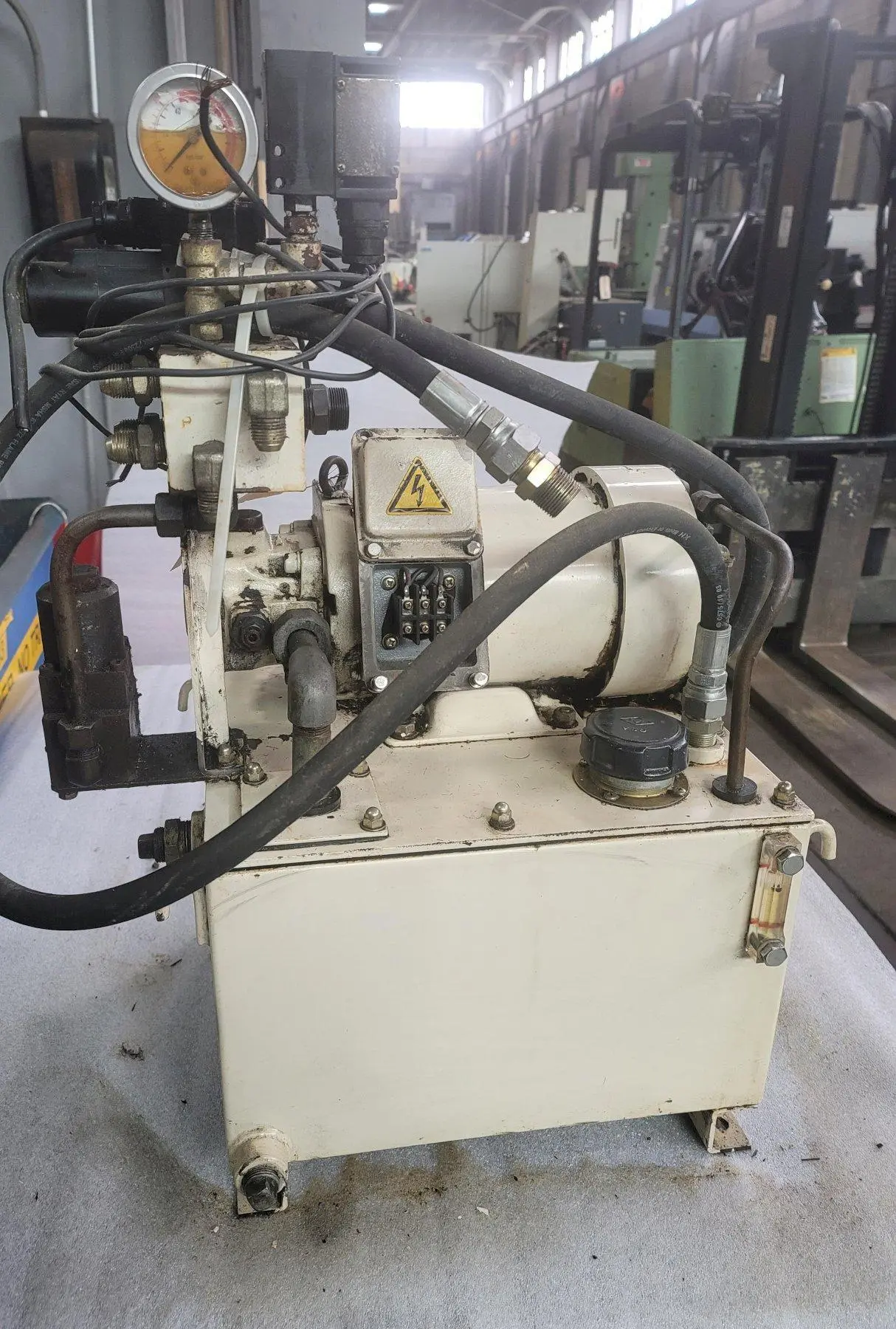

HYDRAULIC UNIT FOR LB-15II, Nachi 3 HP Variable Vane Pump, Model VDR-1B-1A3-U-1146K , UNI Pump UVD-1A-A3-22-4 and Tank, 7MPa Line Filter.
| Flow Rate | 25 L/min | 25 L/min. |
| Motor Power | 3 hp | 2.2 kW |
| Maximum Pressure | 639 PSI | 44.1 bar |
| Tank Capacity | 13 gal | 49.2 L |
| Pump Type | Variable Vane Pump | Variable Vane Pump |
| Power Source | Electric Motor | Electric Motor |
| Motor Voltage | 200-220 V | 220 V |
| Dimensions | 25" x 18" x 32" | 25" x 18" x 32" |
| Weight | 275 lbs | 275 lbs |
Pump RPM: 1800 RPM
Motor Phase: 3 Phase
Motor RPM: 1420-1720 RPM
Nachi Uni Motor:
3 Phase Induction Motor
2.2 kW, 4 Pole
220 V
60 Hz
1,720 RPM
Nachi Variable Vane Pump, Model VDR-1B-1A3-U-1146K:
Capacity 25 L/min
1,800 RPM
Max Pressure 45 kg/cm²
7 MPa Masuda Line Filter, Model UPM04-10P
