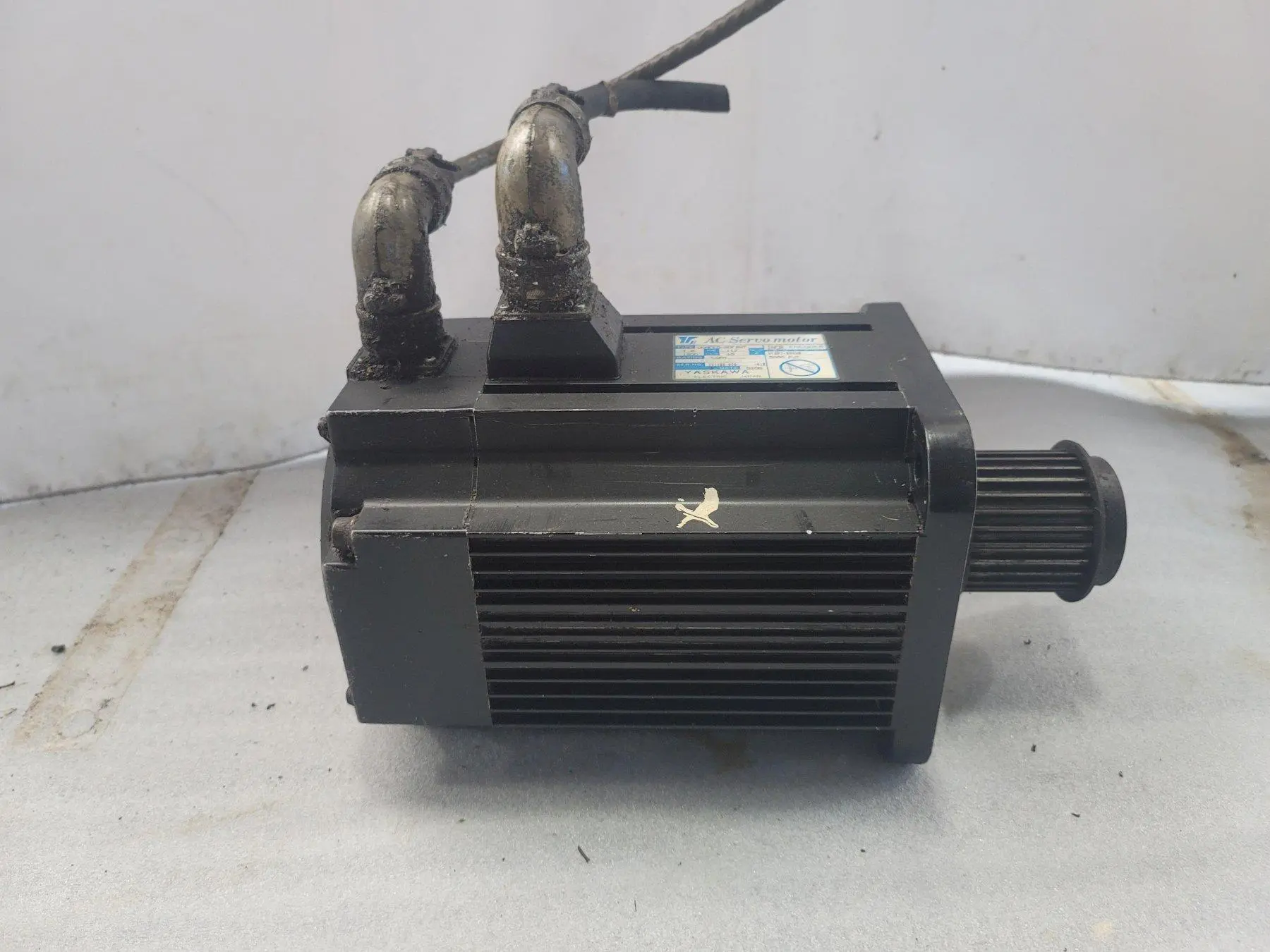

YASKAWA AC SERVO MOTOR USAFED-20FB2T
| Current Type | AC | AC |
| Torque (Stall) | 11.5 N | 2.6 lbf |
| Amp (Stall) | 15 A | 15 A |
| Voltage | 200 V | 200 V |
| Max Speed | 1,500 RPM | 1,500 RPM |
| Power Rating | CONTINUOUS | CONTINUOUS |
| Power | 2.4 hp | 1.8 kW |
| Enclosure Rating | Totally Enclosed | Totally Enclosed |
| Encoder | 5000 P/r Incremental Encoder, UT0PI-500UB | 5000 P/r Incremental Encoder, UT0PI-500UB |
| Motor Mounting Code | Flange Mount | Flange Mount |
| Dimensions | 15" x 7" x 12" | 15" x 7" x 12" |
| Weight | 51 LBS | 51 LBS |
Totally Enclosed, Self-Cool, Straight Shaft with Keyway and End Tap, Flange Mount.
