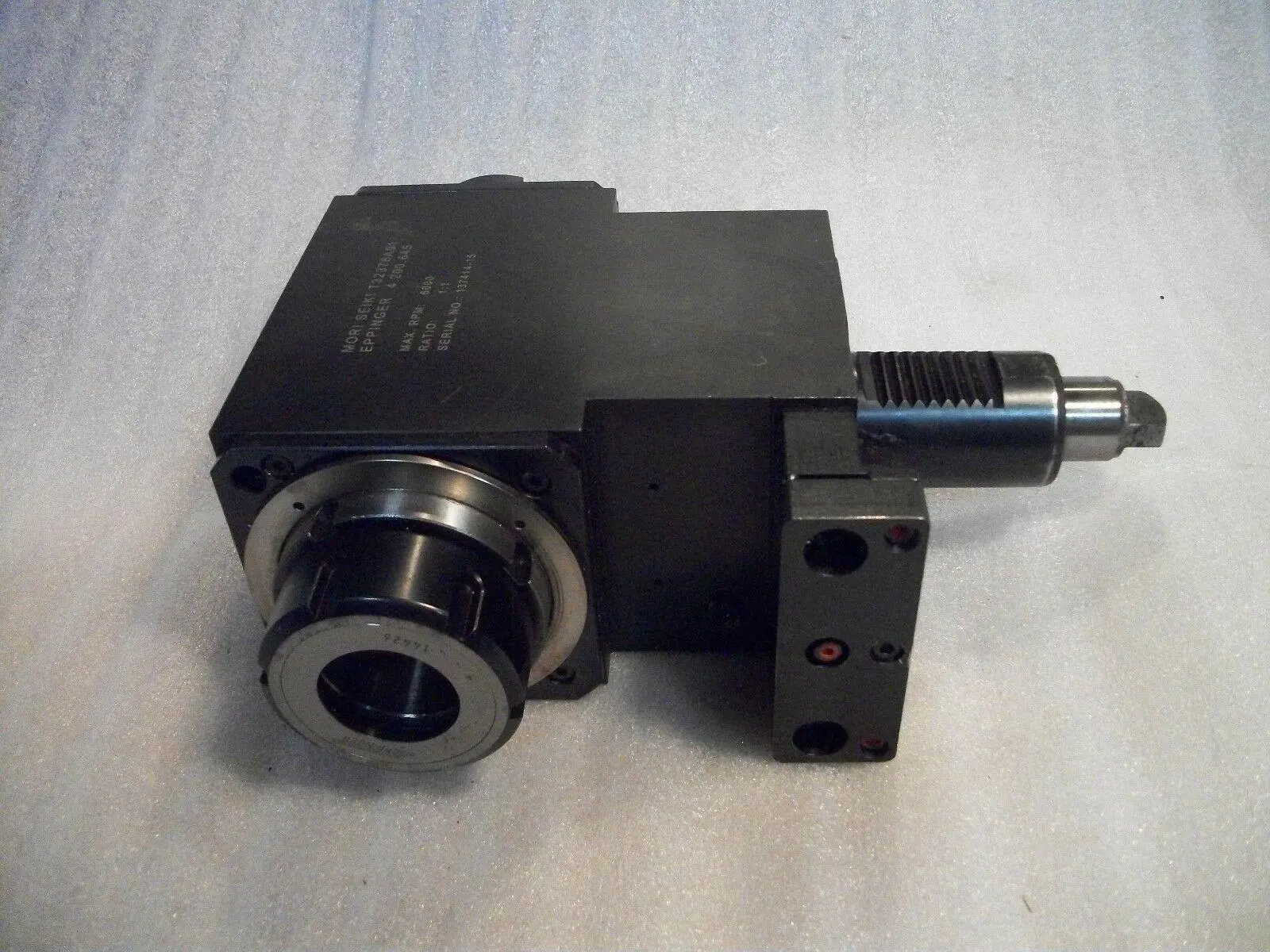

MORI SEIKI RIGHT ANGLE LIVE TOOLHOLDER 4.200.645, ER40, T32378A01
| Type of Holder | Collet Chuck | Collet Chuck |
| Live / Static | Live | Live |
| Max Speed | 6,000 RPM | 6,000 RPM |
| Gear Ratio | 1:1 | 1:1 |
| Collet Size | ER40 | ER40 |
| Dimensions | 5.25" x 3.5" x 6" | 5.25" x 3.5" x 6" |
Part #- 4.200.645
Ratio- 1:1
RPM at Input / Output- 6000 1/min
Torque at Output - 40 Nm
Body 5-1/4" x 3-1/2"
Body Top to Bottom 6"
Mori Seiki Right Angle LIVE TOOLHOLDER 4.200.645, ER40, T32378A01
Drilling milling head, angular, double sided collet chuck, ER40, External coolant supply.
Will Fit Mori Seiki Models MT2000SZ and ZT2500.
