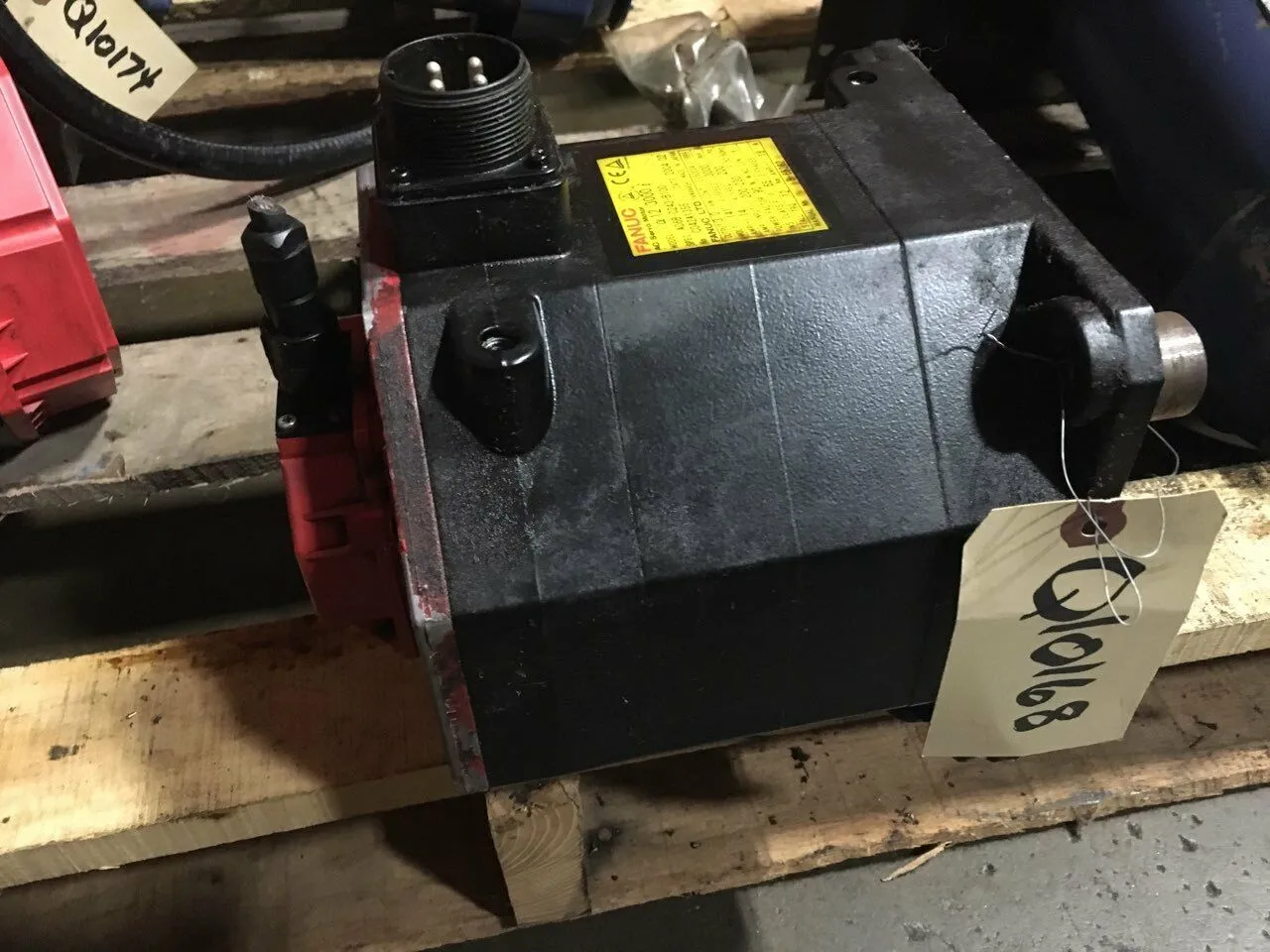

FANUC Servo Motor Model 12/3000I, A06B-0243-B100, C042A1355
| Current Type | AC | AC |
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 18 A | 18 A |
| Voltage | 141 V | 141 V |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Power Factor | 90% | 90% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP65 | IP65 |
| Dimensions | 12" x 9" x 9" | 12" x 9" x 9" |
| Weight | 44 LBS | 44 LBS |
