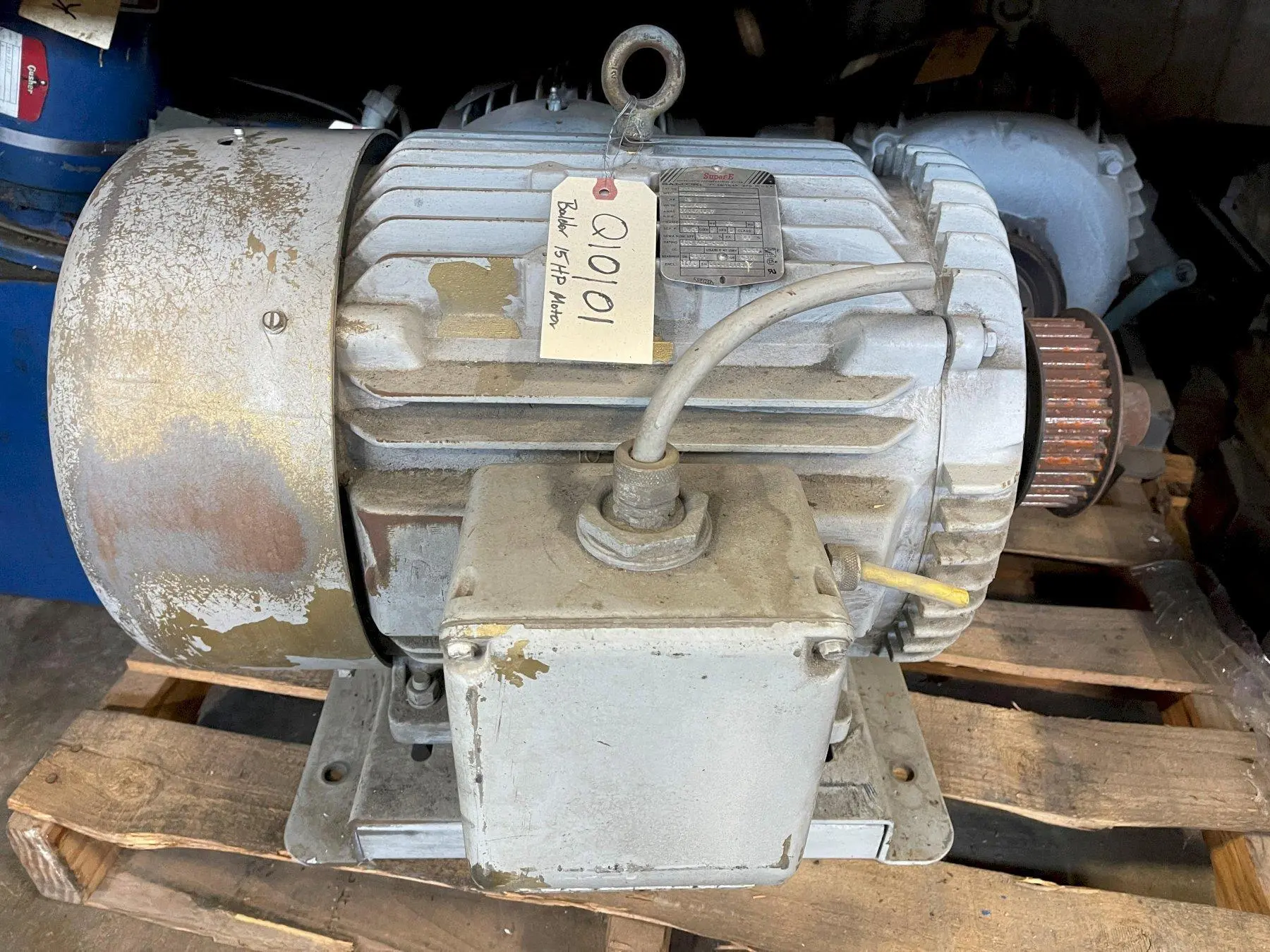

BALDOR 15 HP MOTOR SUPER E
| AC Motor Type | Induction | Induction |
| Spec Number | 10C151X206G2 | 10C151X206G2 |
| Motor Power | 15 hp | 15 hp |
| Actual Rated Input Voltage | 230,460 V | 230,460 V |
| Full Load Amps | 37.4 A | 37.4 A |
| Base Speed | 1,180 RPM | 1,180 RPM |
| Frame | 286T | 286T |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | H | H |
| NEMA Design Letter | B | B |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 92.4 | 92.4 |
| Power Factor | 81 | 81 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Drive End (DE) | 6311 | 6311 |
| Opposite Drive End (ODE) | 6309 | 6309 |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Mounting Type | Base-Mounted | Base-Mounted |
| Special Motor Construction | General Purpose | General Purpose |
| Dimensions | 28x24 | 28x24 |
| Weight | 450 | 450 |
Spec Number: 10C151X206G2
Motor Horsepower: 15 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 37.4/18.7 A
Base Speed: 1,180 RPM
Frame: 286T
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.15
NEMA KVA Code: H
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 92.4%
Power Factor: 81%
Ambient and Time Rating: 40° C AMB-CONT
Drive End (DE): 6311
Opposite Drive End (ODE): 6309
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Current Type: AC
Special Motor Construction: General Purpose
Approximate Dimensions: 28" x 24"
Approximate Height: 20"
Approximate Weight: 450 LBS
