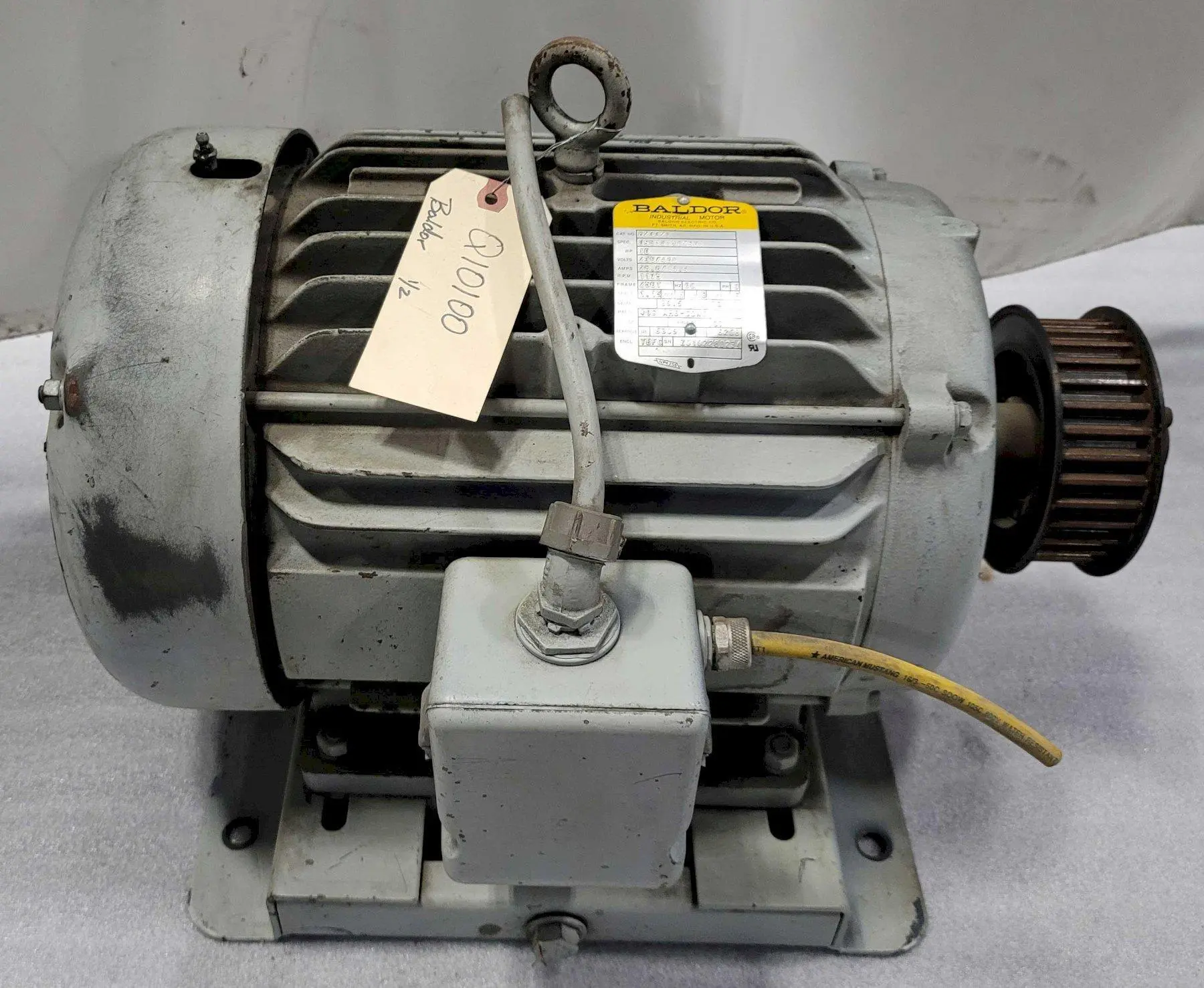

BALDOR RELIANCE AC INDUSTRIAL MOTOR, Model M2332T, 10 HP, 1175 RPM.
| AC Motor Type | Induction | Induction |
| Spec Number | 09C101X829H1 | 09C101X829H1 |
| Rated/Full-Load Torque | 44.6 lb-ft | 44.6 lb-ft |
| Motor Power | 10 hp | 10 hp |
| Full Load Amps | 28.8/14.4 A | 28.8 A |
| Base Speed | 1,175 RPM | 1,175 RPM |
| Frame | 256T | 256T |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | H | H |
| NEMA Design Letter | B | B |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 89.5 | 89.5 |
| Power Factor | 73 | 73 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Certified Compliant (CC) # | 010A | 010A |
| Drive End (DE) | 6309 | 6309 |
| Opposite Drive End (ODE) | 6208 | 6208 |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Reversible/Non-Reversible | Reversible | Reversible |
| Mounting Type | Foot-Mounted | Foot-Mounted |
| Dimensions | 22" x 20" x 15" | 22" x 20" x 15" |
| Weight | 300 lbs | 300 lbs |
