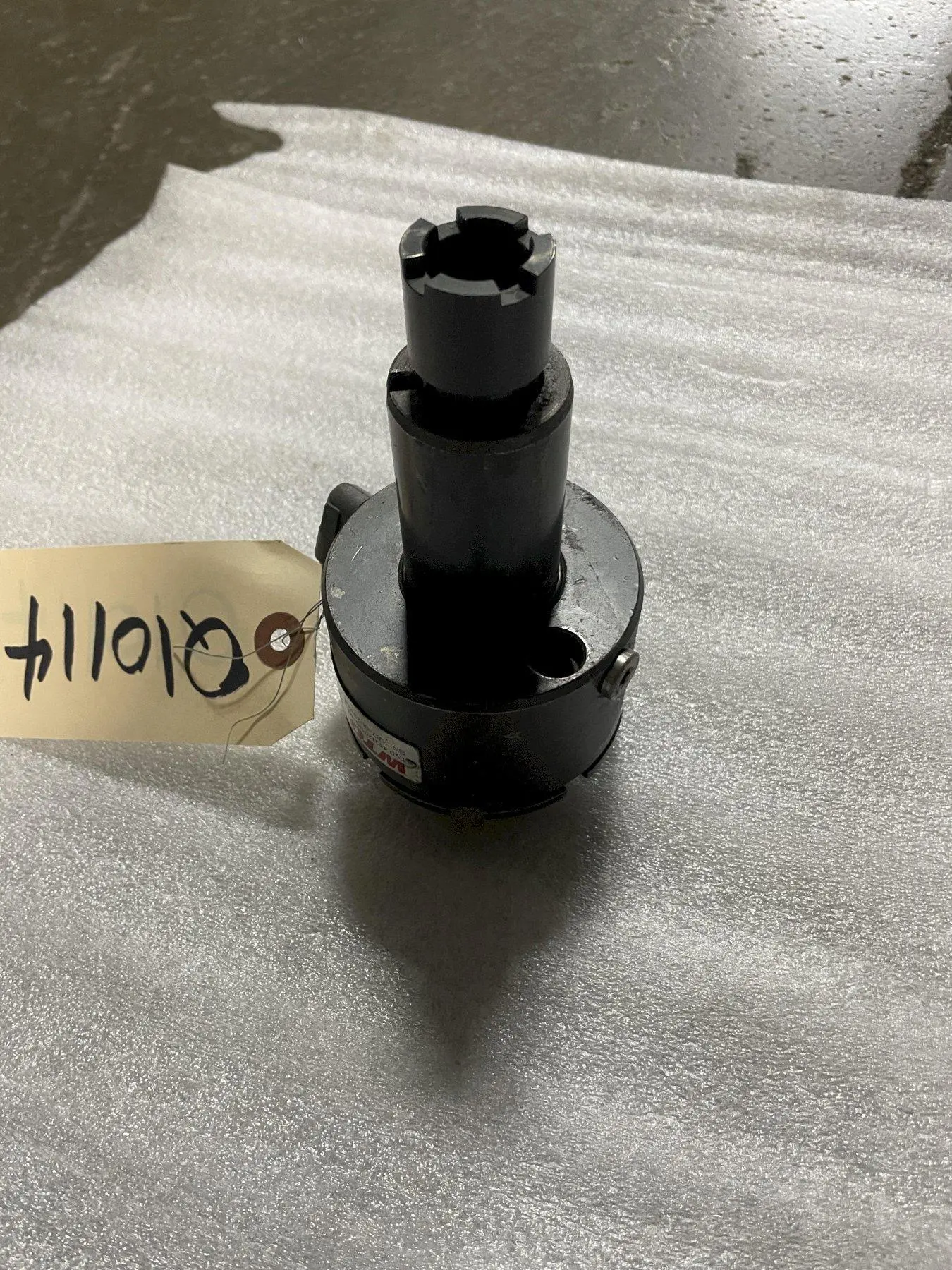

WTO LIVE TOOL HOLDER 410120118-40 Straight Drill/Milling Unit, VDI 40 with ER32. Okuma Lathe
| Type of Holder | Straight drill/milling unit | Straight drill/milling unit |
| Type of Taper | OK40A | OK40A |
| Live / Static | Live | Live |
| Projection | 3.07" | 77.978 mm |
| Max Speed | 6,000 RPM | 6,000 RPM |
| Max Torque Output | 63 Nm | 206.8 N |
| Collet Size | ER 32 | ER 32 |
| Machine Mount | VDI | VDI |
| Dimensions | 6" x 6" x 9" | 6" x 6" x 9" |
| Weight | 8 lbs | 8 lbs |
External Coolant: yes
Machine References:
Okuma Captain L370 M
Okuma ES L10 M
Okuma GENOS L300, L3000-e M/MY (VDI40)
Okuma GENOS L300 MW/MYW (VDI40)
Okuma LB/LU 300, 3000 M (VDI40)
Okuma LB 300 MW (Radial tooling turret)
Okuma LB/LU 300 MY
Okuma LB 300 MYW
Okuma LT 300 M, LT 300 MY
Okuma LVT 300 M
Okuma MacTurn 250-2S
Okuma MacTurn 350-2S
