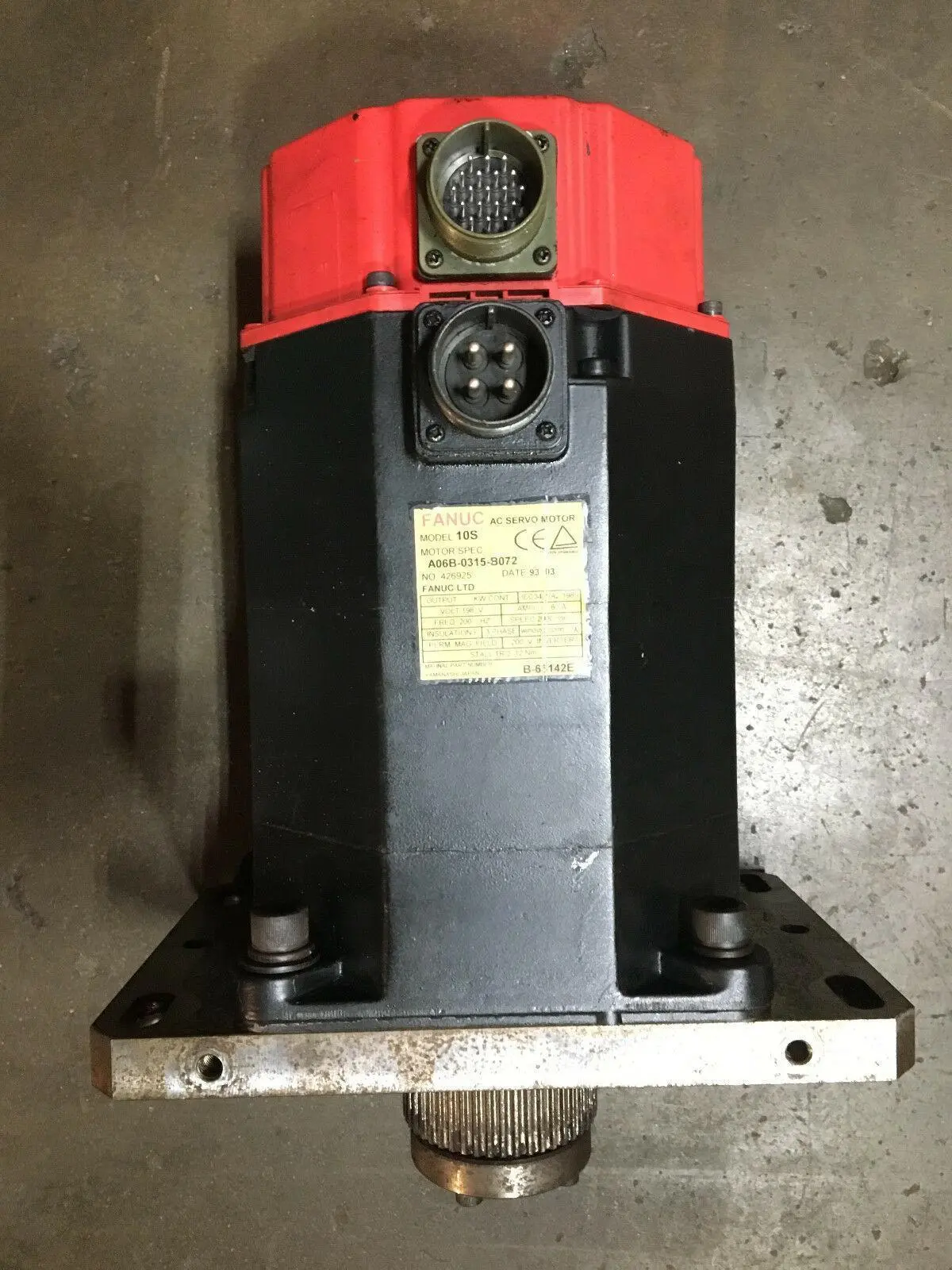

FANUC A06B-0315-B072 AC Servo Motor Model 10S, No: 426925
| Current Type | AC | AC |
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 7.6 A | 7.6 A |
| Voltage | 198 V | 198 V |
| # Poles | 8 | 8 |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Ambient Temperature | 311°F | 155°C |
| Power Rating | Continuous | Continuous |
| Efficiency | IEC 34-1/A2 | IEC 34-1/A2 |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
Permanent Magnetic Field, 200 V Inverter, Pulse Coder, Straight Shaft
