USED 2008 Fanuc A06B-0238-B100 #0100
USD $1,400.00
Overview
Description

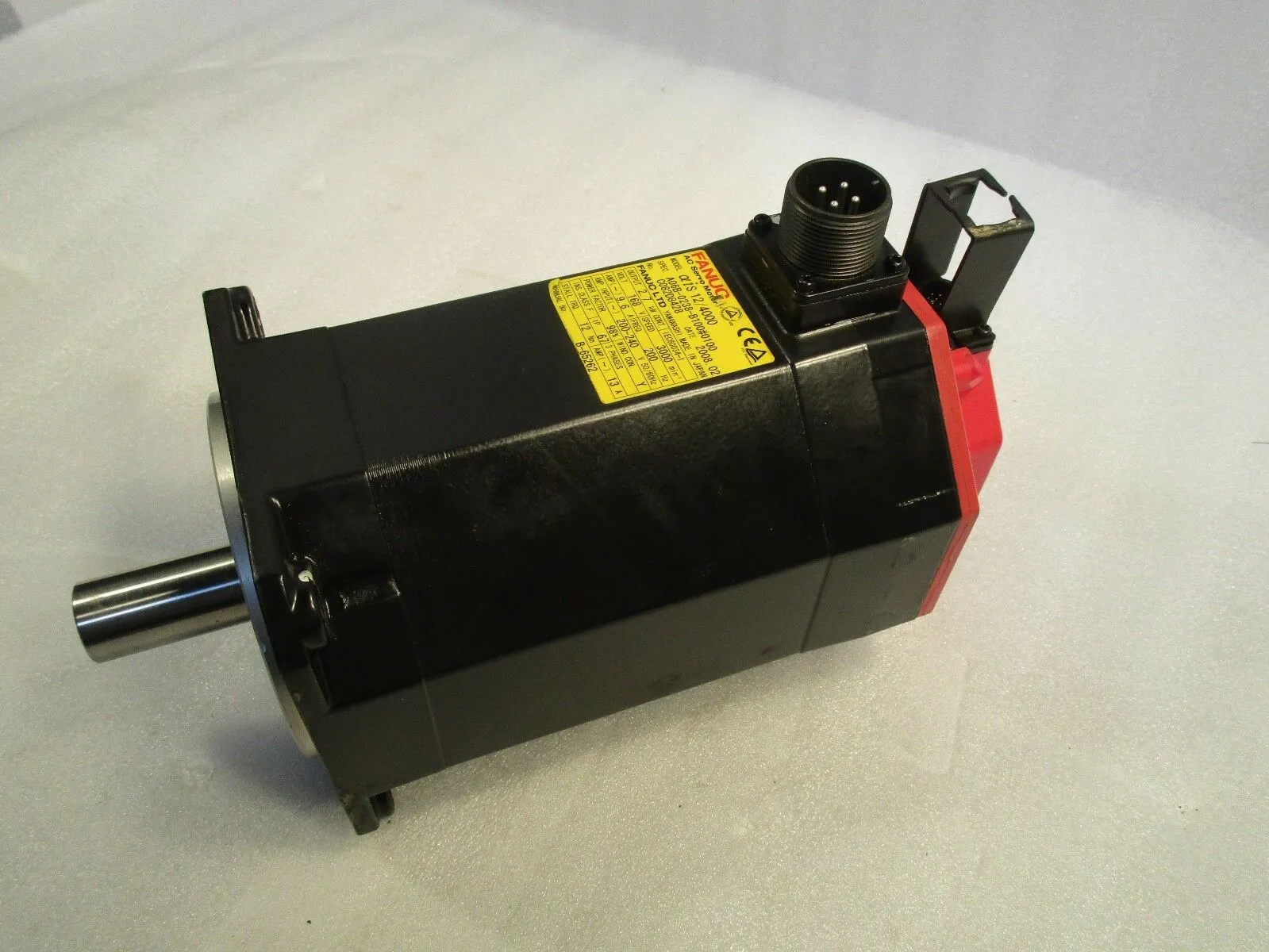

FANUC AC SERVO MOTOR Alpha iS 12/4000 A06B-0238-B100#0100.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 12 N | 2.7 lbf |
| Amp (Stall) | 13 A | 13 A |
| Voltage | 168 V | 168 V |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Power Factor | 98% | 98% |
| Frequency | 200 Hz | 200 Hz |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 2.7 kW | 3.6 hp |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 67 | IP 67 |
| Standards | IEC 60034-1 | IEC 60034-1 |
| Dimensions | 14" x 8" x 9" | 14" x 8" x 9" |
| Weight | 32 LBS | 32 LBS |
