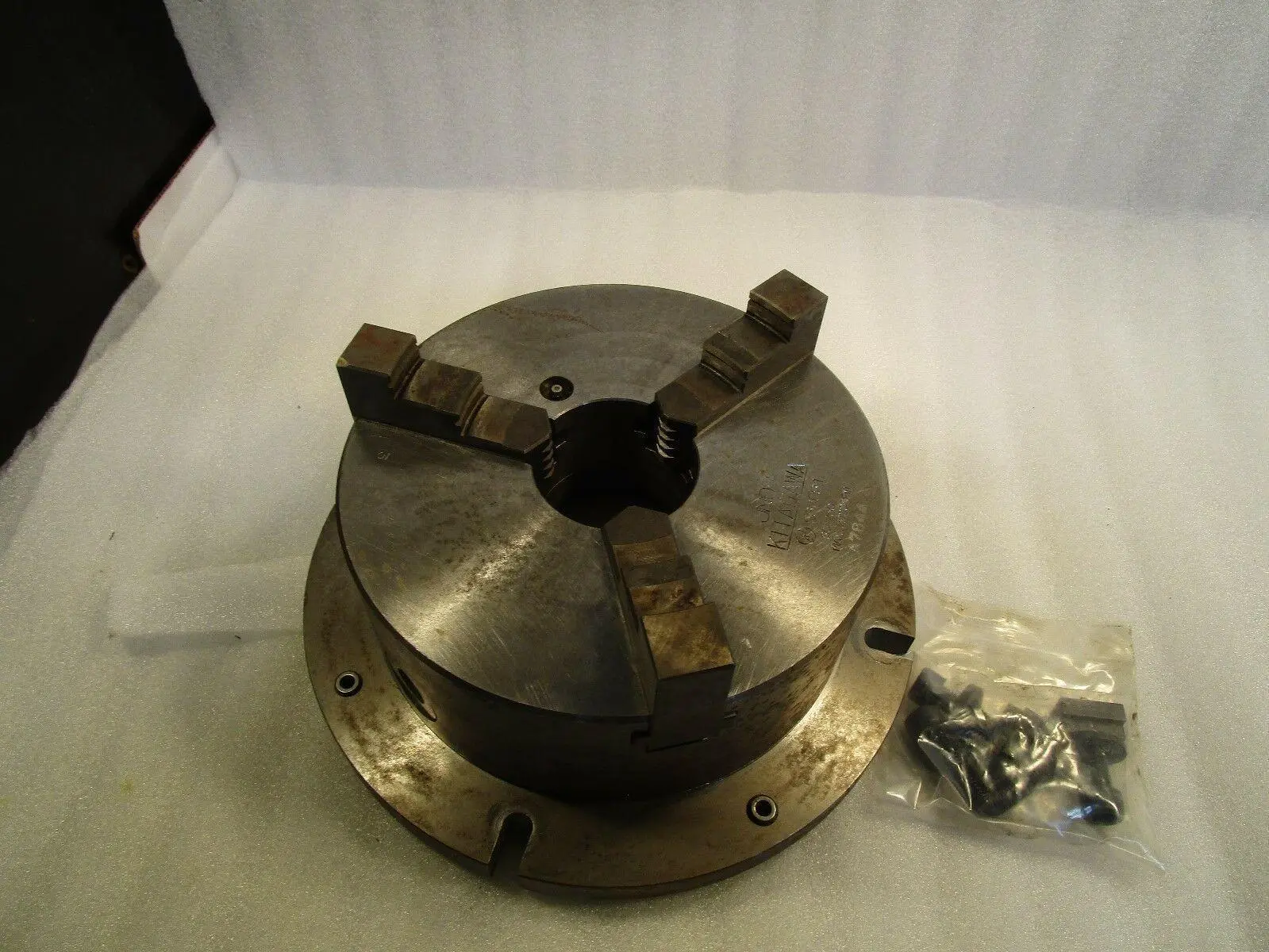

9" Kitagawa JN09 3-Jaw Manual Chuck with Mounting Flange
| Type | Scroll Chuck | Scroll Chuck |
| # Jaws | 3 | 3 |
| Type of Actuation | Manual | Manual |
| Body Diameter | 9" | 228.6 mm |
| Body Height | 10" | 254 mm |
| Max Speed | 2,900 RPM | 2,900 RPM |
| Max Grip Force | 8,318.6 lbf | 37 kN |
| Min Grip | 2.44" | 61.976 mm |
| Max Grip | 8.27" | 210.06 mm |
| Dimensions | 14 x 14 | 14 x 14 |
| Weight | 46.7 | 46.7 |
Type: Scroll Chuck, Front Mounting
# Jaws: 3
Type of Actuation: Manual
Body Diameter: 9"
Max Speed: 2,900 RPM
Max Grip Force: 37 kN
Gripping Range: 62mm - 210mm
Approximate Dimensions: 14" x 14"
Approximate Height: 10"
Approximate Weight: 21.2 kg | 46.7 LBS
