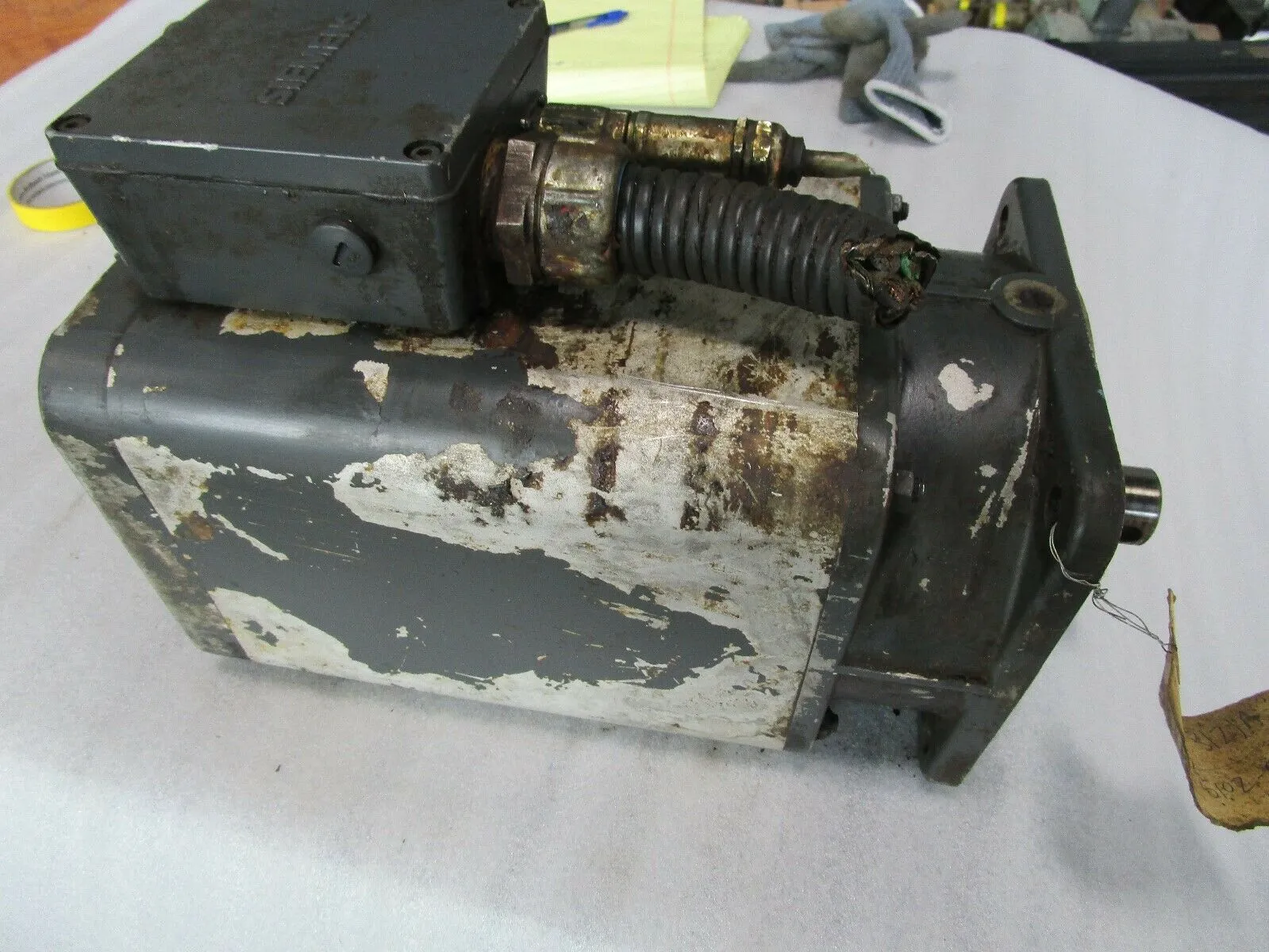

SEIMENS SERVO MOTOR 1FT5102-0AC012-Z
| Current Type | AC | AC |
| Torque (Stall) | 33 N | 7.4 lbf |
| Amp (Stall) | 52 A | 52 A |
| Voltage | 144 V | 144 V |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 67 | IP 67 |
| Motor Mounting Code | IM B5 | IM B5 |
| Dimensions | 17" x 11" x 8" | 17" x 11" x 8" |
| Weight | 71 LBS | 71 LBS |
Permanent Magnet Motor
1-1/4″ Shaft Diameter
3-Phase Tacho
1 FU1050-6MC
20.0 V/KRPM
NOTE: Use Only with 6SC610 Drives
