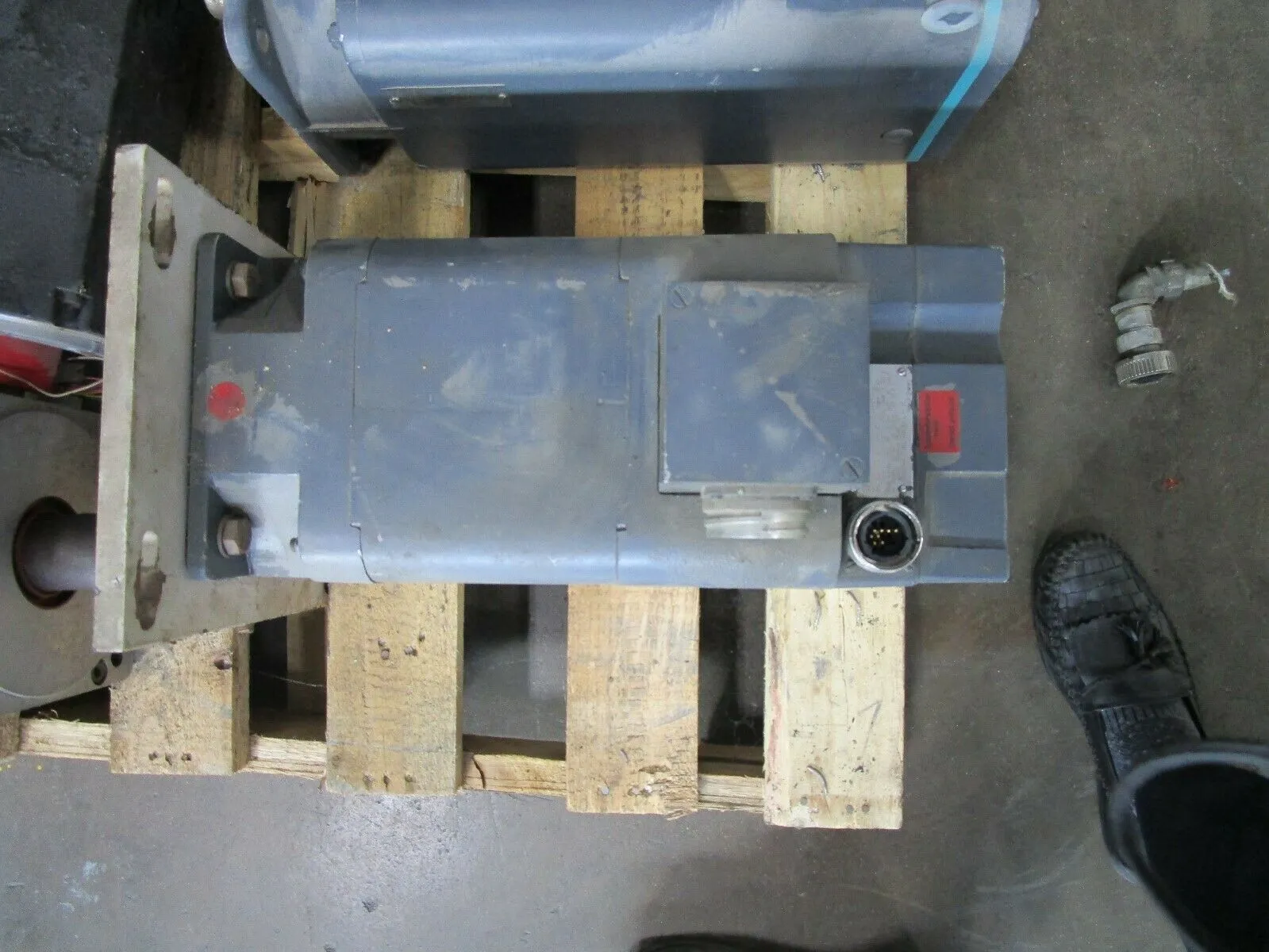

USED Siemens 1HU3102-0AH01
USD $1,000.00
Overview
Description
Siemens Servo Motor 1HU3102-0AH01-Z Cincinnati Milacron Part# 1-605-0615
Specifications
| Current Type | DC | DC |
|---|---|---|
| Torque (Stall) | 20 N | 4.5 lbf |
| Amp (Stall) | 27 A | 27 A |
| Voltage | 170 V | 170 V |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 54 | IP 54 |
| Motor Mounting Code | IM B5 | IM B5 |
| Dimensions | 28" x 14" x 10" | 28" x 14" x 10" |
| Weight | 120 LBS | 120 LBS |
Equipped With
Permanent Magnet Motor
