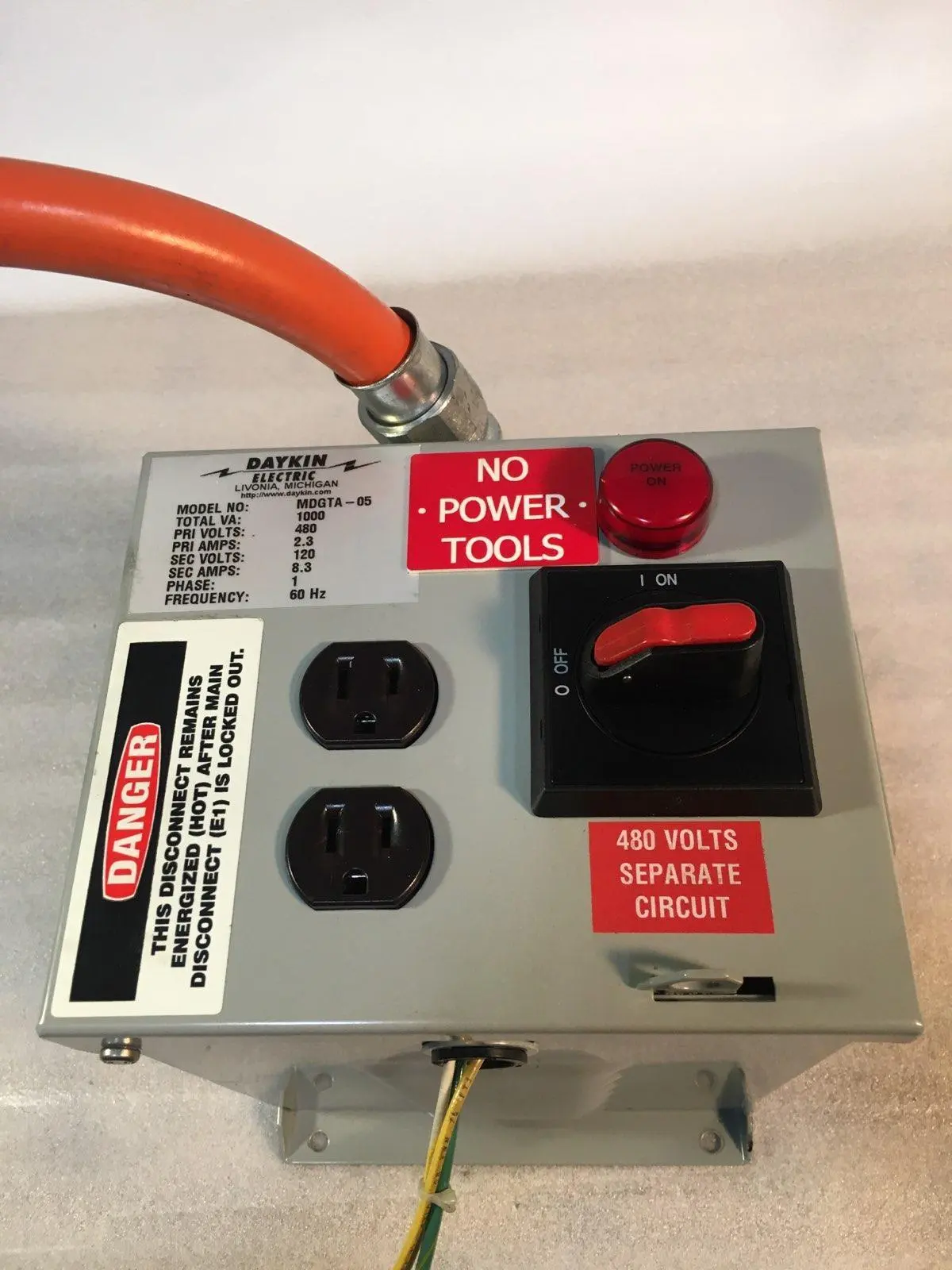

DAYKIN ELECTRIC MDGTA-05 TRANSFORMER DISCONNECT, Total VA-1000, Pri Volts 480, Sec Volts 120.
| Catalog Number | MDGTA-05 | MDGTA-05 |
| Phase - Electrical | Single | Single |
| Primary Input Voltage | 480 V | 480 V |
| Secondary Output Voltage | 120 V | 120 V |
| VA Rating | 1 kV·A | 1 kV·A |
| Frequency | 60 Hz | 60 Hz |
| Dimensions | 9" x 11" x 7" | 9" x 11" x 7" |
| Weight | 28 LBS | 28 LBS |
Type: Transformer Disconnect
Total VA: 1000 V
Primary Volts: 480 V
Primary Amps: 2.3 A
Secondary Volts: 120 V
Secondary Amps: 8.3 A
Phase: Single
Frequency: 60 Hz
Approximate Dimensions: 9" x 11" x 7"
Approximate Weight: 28 LBS
Electrical assembly which consists of a disconnect switch, copper wound transformer, fuse block and fuses.
