USED Siemens 1FT6082-6AF71-4EG1-Z
USD $775.00
Overview
Description

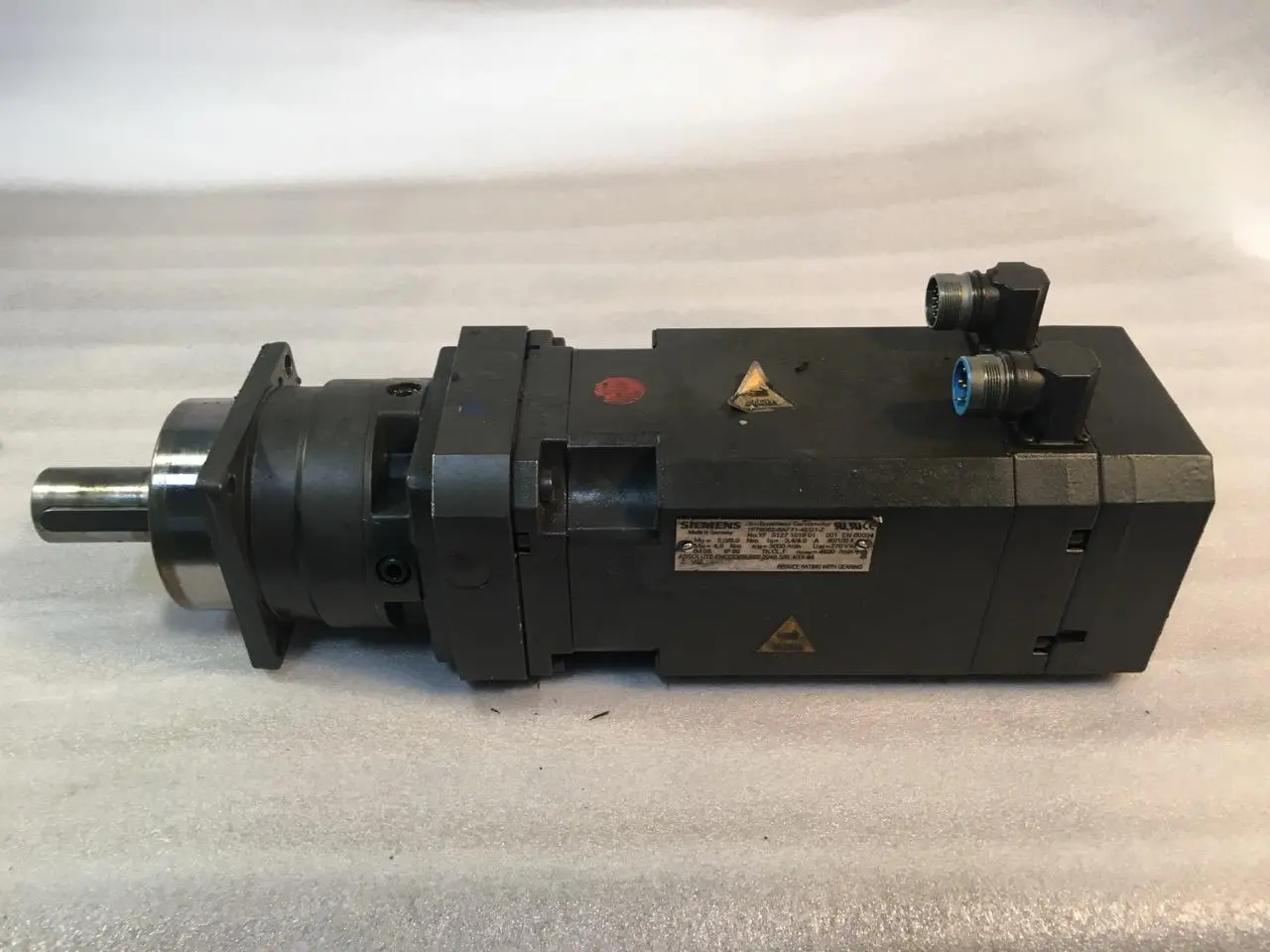

SIEMENS BRUSHLESS SERVO MOTOR, 1FT6082-6AF71-4EG1-Z, 3-Phase, Permanent-Magnet Synchronous.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 56 N | 12.6 lbf |
| Amp (Stall) | 3.4-4.0 A | 3.4 A |
| Voltage | 270 V | 270 V |
| Max Speed | 4,500 RPM | 4,500 RPM |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP65 | IP65 |
| Encoder | Absolute F02 2048 S/R | Absolute F02 2048 S/R |
| Motor Mounting Code | IM B5 | IM B5 |
| Dimensions | 20" x 7" x 9" | 20" x 7" x 9" |
| Weight | 37 LBS | 37 LBS |
Production Number: S127 1019 01
Protection: IP 65
Vibration Severity: N
Motor Protection: KTY 84
Encoder System: Absolute F02 2048 S/R
Cooling Method: Natural
Rated/Full-Load Torque: 4.5 Nm
Max Speed: 4,500 RPM
Rated Speed: 3,000 RPM
