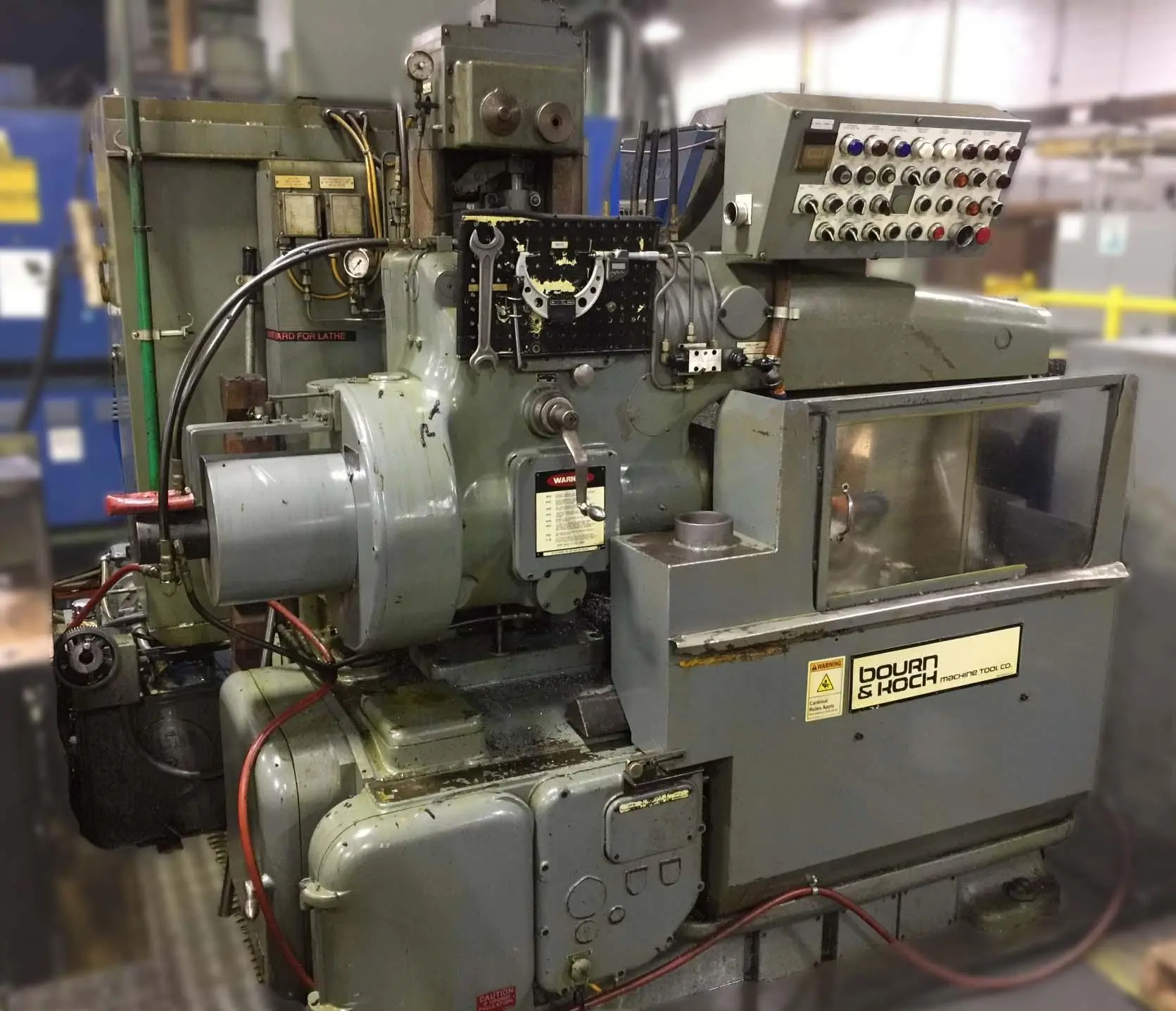

USED 1998 Bourn & Koch 14-15

Name: USED 1998 Bourn & Koch 14-15
Brand: BOURN & KOCH
SKU: 164967
Availability: InStock

Great American Equipment Company

Ohio US

Overview

Type:

Gear Hobbers

Manufacturer:

BOURN & KOCH

Model:

14-15

Year:

1998

Stock #:

Q10546

Description

14-15 BOURN & KOCH/BARBER COLMAN HEAVY DUTY HORIZONTAL GEAR HOBBER, 14" Max Work Diameter, 15" Max Hob Slide Travel, 6.25" Max Hob Diameter, Auto Hob Shift, Auto 2-Cut Cycle, Dwell Timer for Blind Cuts, Hydraulic Workhead, Hydraulic & Coolant System, Rebuilt 1998.

Specifications

ImperialMetric

Max Diametral Pitch in Steel	3.5 dp	3.5 dp
Max Rated Work Diameter	14"	355.6 mm
Horz/Vert	Horz	Horz
Max Travel of Hob Slide	15"	381 mm
Max Distance Work Spindle Face to Tail Center	27.25"	692.15 mm
Max Distance Work Spindle Centerline to Hob Spindle	9.75"	247.65 mm
Min Distance Work Spindle Centerline to Hob Spindle	1.75"	44.45 mm
Work Spindle Bore (Standard)	4.18"	106.17 mm
Index Worm Gear Pitch Diameter	17.9"	454.66 mm
Max Number of Teeth Cut	300	300
Min Number of Teeth Cut	4	4
Max Hob Diameter (Standard)	6.25"	158.75 mm
Max Swivel Angle (Helix) Setting R/L	50°	50°
Max Hob Shift Travel	4"	101.6 mm
Main Drive Power	10 hp	7.5 kW
Hydraulic Pump Power	3 hp	2.2 kW
Lubricating Pump Power	0.2 hp	0.2 kW
Coolant Pump Power	1 hp	0.7 kW
Dimensions	114" x 81" x 90"	114" x 81" x 90"
Weight	13,000 LBS	13,000 LBS

Equipped With

Standard Hob Head with Anti-Friction Bearing Spindle, Anti-Friction Bearing Work Spindle, Double-Thread Index Worm (Hardened and Ground), Bronze Worm Gear, Built-In Differential Mechanism, Power Forced Lubrication to All Working Elements, Automatic Hob Shift-Clamped During Working Cycle, Automatic 2-Cut Cycle, Dwell Timer for Blind Cuts, (1) Hob Arbor, Hydraulic Chucking Work Head with Work Spindle Adaptor, Hydraulic Power Unit, Coolant Pan and Piping. Missing Tailstock.
