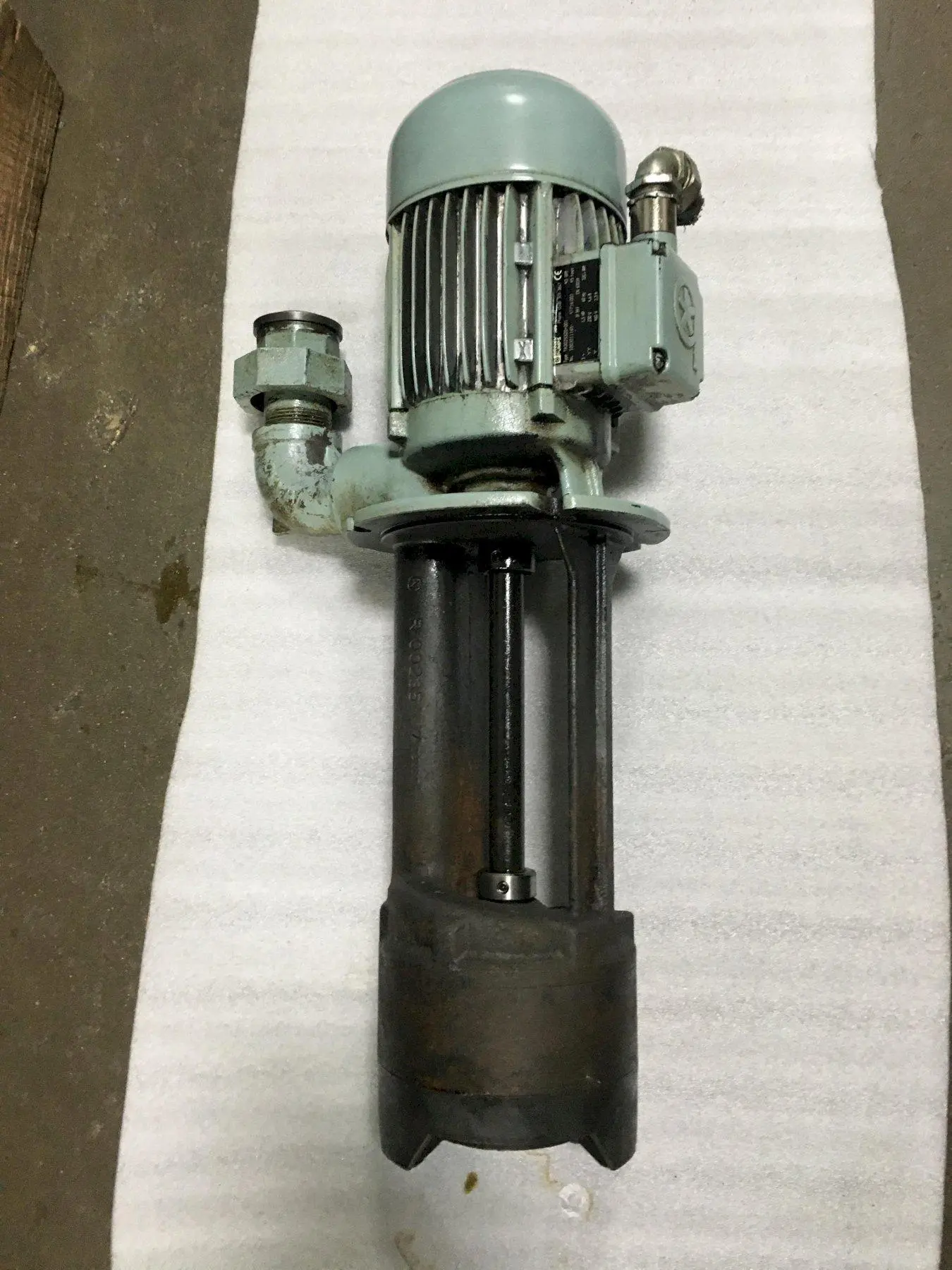

USED Brinkmann Pumps TA302S320+001

BRINKMANN IMMERSION PUMP, Model TA302S320, 40 GPM 1.5HP, 230/460, 3200 RPM.

Flow Rate (Gallons per Minute): 40 GPM
Feet of Head: 45 ft
Motor Protection: IP 54 F - EN 60034
Motor Phase: 3
Motor Horsepower: 1.5 HP
Frequency: 60 Hz
Motor Speed: 3,200 RPM
Immersion Depth: 12.6" (320 mm)
YY Voltage: 230 V
YY Current (Amps): 4.6 A
Y Voltage: 460 V
Y Current (Amps): 2.3 A
Noise Level: 62 dBA
