USED 2005 Sheffield ENDEAVOR 9.9.7

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Coordinate Measuring Machines

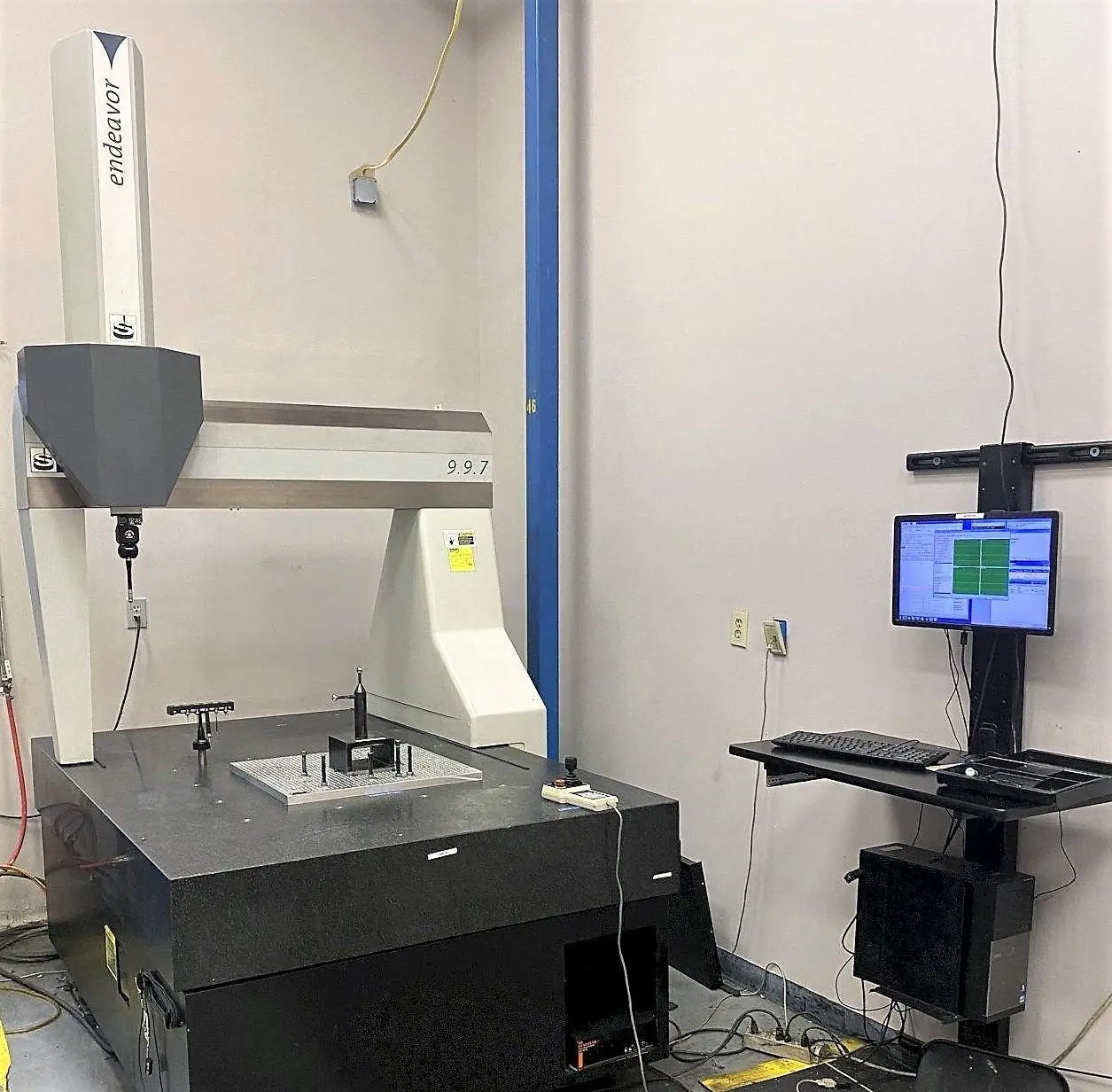

SHEFFIELD ENDEAVOR 9.9.7 COORDINATE MEASURING MACHINE, Computer/Monitor Included, Travels X=35.4" / Y=35.43" / Z=26", Renishaw PH-10T Probe Head, Probe Change Rack, New 2005.

Specs
X-Axis Measuring Range
35.4"
899.16 mm
Control Type
DCC
DCC
Y-Axis Measuring Range
35.43"
899.92 mm
Z-Axis Measuring Range
26"
660.4 mm
Max Workpiece Weight
2,200 lbs
997.9 kg
Table Height
32"
812.8 mm
Accuracy
.00026
.00026
Repeatability
.00008
.00008
Operation
Bridge
Bridge
Probe / Sensor Type
Renishaw PH10T
Renishaw PH10T
Dimensions
63.7" x 82" x 118"
63.7" x 82" x 118"
Weight
5,400 LBS
5,400 LBS
Equipped With

Renishaw PH10T Probe Head
Measure Max Software (Version 6.53)
Probe Change Rack
Calibration Sphere
Raco Plate
Computer/Monitor
