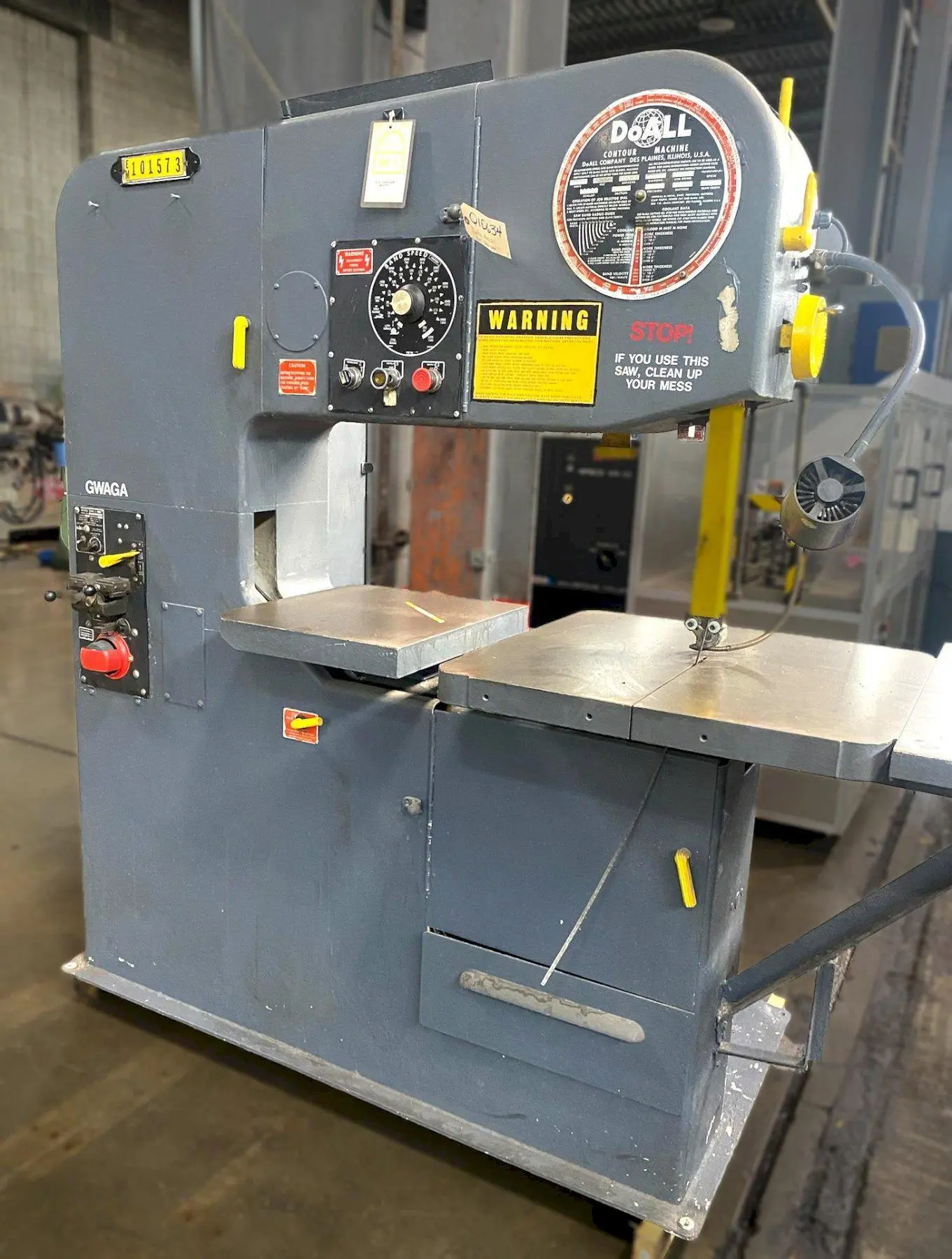

USED 1984 DoAll 3613-20

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Band Saws

36" DOALL VERTICAL BAND SAW, Model 3613-20, 36" Throat Depth, 30" x 30" Table, 13" Work Height Capacity, Table Tilt L/ R.

Specs
Throat Depth
36"
914.4 mm
Max Work Height Capacity
13"
330.2 mm
Worktable Dimensions (Overall) - L
30"
762 mm
Worktable Dimensions (Overall) - W
30"
762 mm
Worktable Tilt - L
10°
10°
Worktable Tilt - R
45°
45°
Blade Length
125"
3,175 mm
Max Blade Width
1/16"-1"
25.4 mm
Blade Speeds, Infinitely Variable
5 - 300 FPM (Low) / 850 - 5200 FPM (High)
5 - 300 FPM (Low) / 850 - 5200 FPM (High)
Motor Power
3 hp
2.2 kW
Electrics
460/3/60
460/3/60
Dimensions
76" x 39" x 79"
76" x 39" x 79"
Weight
2000 LBS
2000 LBS
Equipped With

30" x 30" 2-Way Tilting Table, DoAll DBW-15 Blade Welder & Shear, Cast Iron Blade Wheels, Infinitely Variable Speed Control, Work Light.
