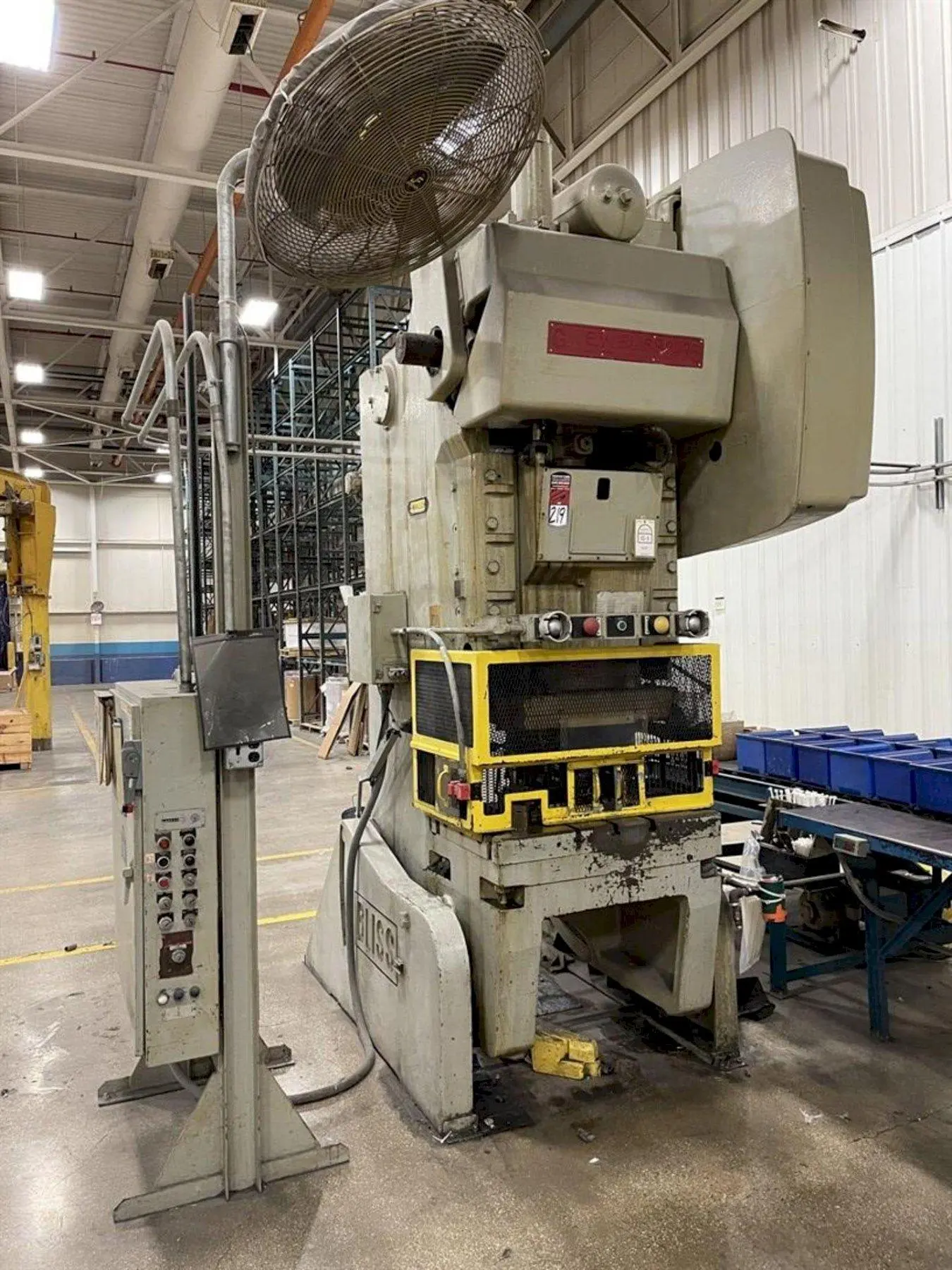

75 TON BLISS C-75 OBI PRESS, Back Geared, Dual Palm Buttons, 24" x 18" Ram, 36" x 24" Bolster/Bed, 4" Stroke, 3.5" Slide ADJ, 17" Shut Height, 45 SPM, Air Clutch & Brake and Dual Air Counterbalance.
| Tonnage Capacity | 75 T | 68.039 t |
| Stroke Length | 4" | 101.6 mm |
| Shut Height to Bed, SDAU | 17" | 431.8 mm |
| Ram Adjustment | 3.5" | 88.9 mm |
| Ram Area (L-R) | 24" | 609.6 mm |
| Ram Area (F-B) | 18" | 457.2 mm |
| Bolster/Bed Area (L-R) | 35" | 889 mm |
| Bolster/Bed Area (F-B) | 24" | 609.6 mm |
| Strokes Per Minute | 45 strokes/min. | 45 strokes/min. |
| Type (BG, Double Action, FW) | Backgeared | Backgeared |
| Air Clutch (Yes/No) | Yes | Yes |
| Electrics | 230/460/3/60 | 230/460/3/60 |
| Dimensions | 83" x 100" x 132" | 83" x 100" x 132" |
| Weight | 20,000 LBS | 20,000 LBS |

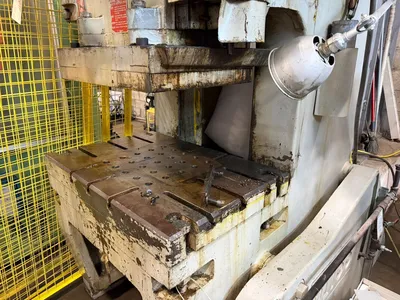

Bolster/Bed Area (L-R x F-B): 35" x 24" x 3.25"
Distance Between Uprights: 19"
Air Clutch and Brake, Backgeared, Dual Air Counter Balance Cylinders, Trabon Lube System, Dual Palm Buttons.
