USED Siemens 1FT5074-0AC01-2-Z CMI PART# 1-606-3112
USD $850.00
Overview
Description

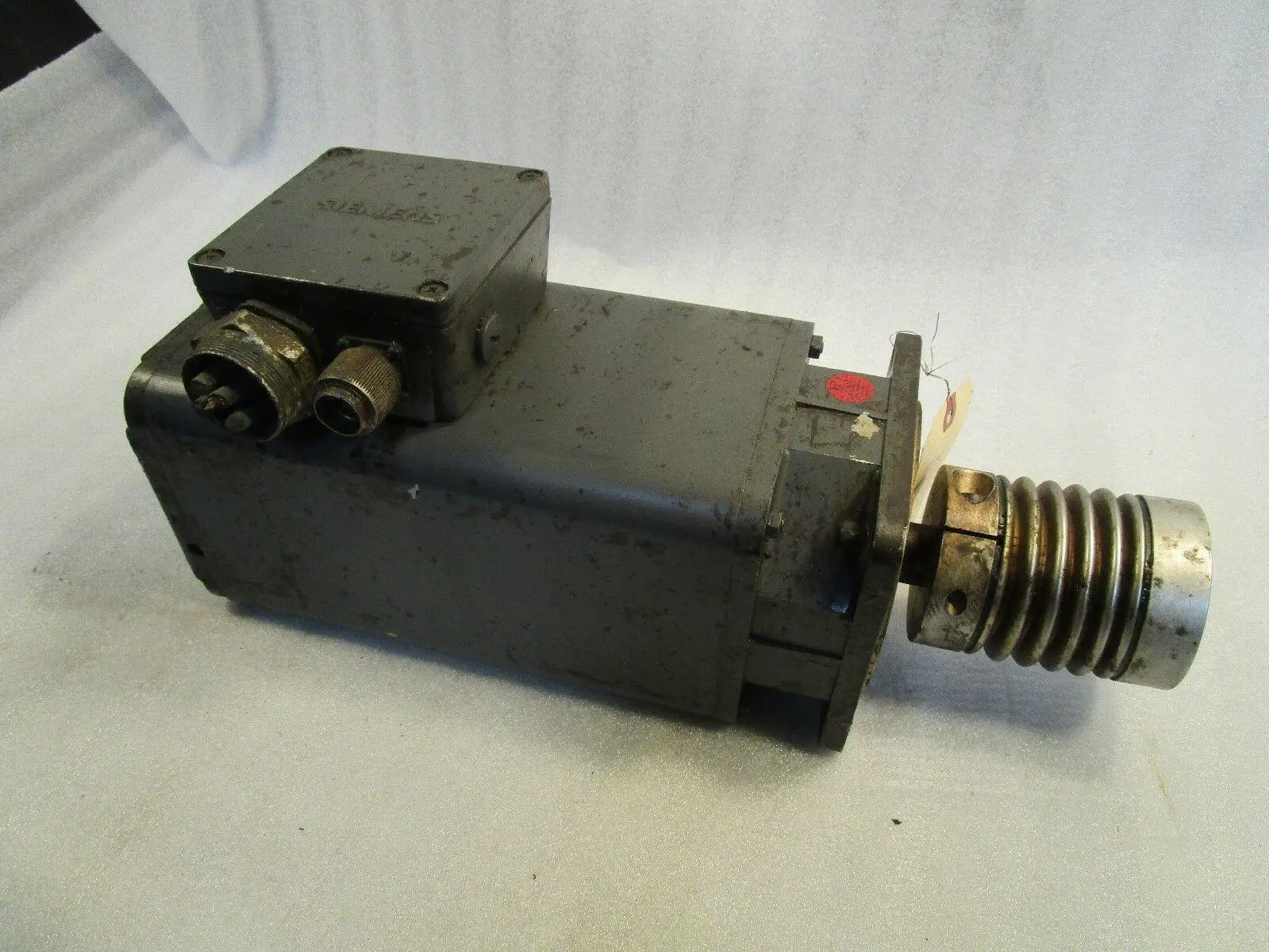

Siemens AC Servo Motor 1FT5074-0AC01-2-Z CMI Part# 1-606-3112
Specifications
| Current Type | DC | DC |
|---|---|---|
| Torque (Stall) | 18 N | 4 lbf |
| Amp (Stall) | 27 A | 27 A |
| Voltage | 210 V | 210 V |
| Max Speed | 2,000 RPM | 2,000 RPM |
| Efficiency | IEC 71 | IEC 71 |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Motor Mounting Code | IM B5 | IM B5 |
| Manual No | 1FT5074-0AC01-2-Z | 1FT5074-0AC01-2-Z |
| Dimensions | 20" x 8" x 10" | 20" x 8" x 10" |
| Weight | 46 LBS | 46 LBS |
Equipped With
Permanent Magnet Motor, DC Link, Non-Ventilated/Naturally Cooled, TG and RLG.
NOTE: Use only with 6SC610 Drives.
