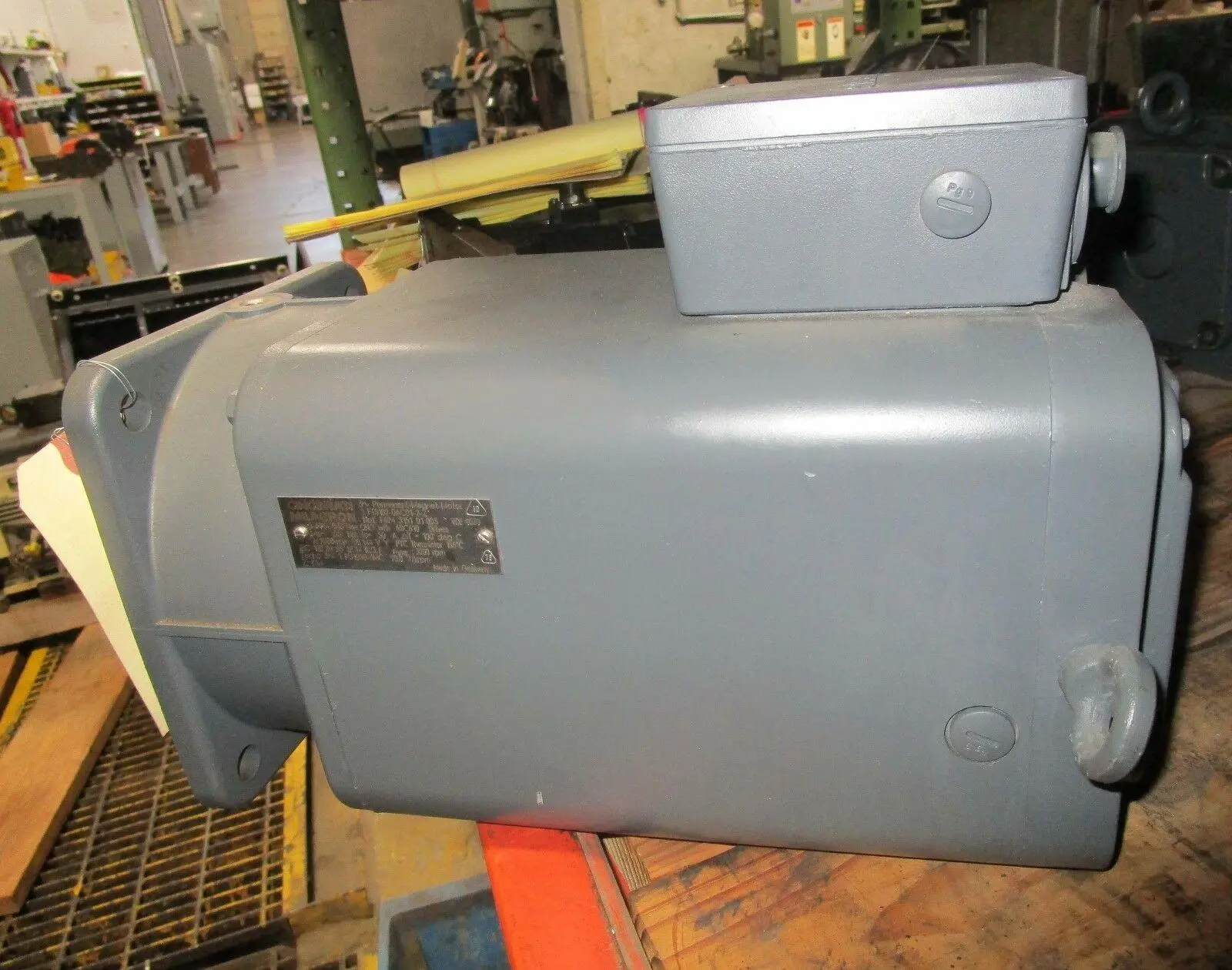

USED Siemens CMI 1-606-4563 1FT5102-0AC01-2-Z
USD $1,000.00
Overview
Description
Siemens Servo Motor 1FT5102-0AC01-2-Z Milacron # 1-606-4563. Use only with 6SC610 Drives.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 33 N | 7.4 lbf |
| Amp (Stall) | 50 A | 50 A |
| Voltage | 144 V | 144 V |
| Max Speed | 3,200 RPM | 3,200 RPM |
| Efficiency | IEC 100 | IEC 100 |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Motor Mounting Code | IM B5 | IM B5 |
| Standards | VDE 0530 | VDE 0530 |
| Dimensions | 19" x 12" x 12" | 19" x 12" x 12" |
| Weight | 70 LBS | 70 LBS |
Equipped With
3-Phase Tacho, 1 FU1050-6AC, 20 mVmin Voltage constant phase-to-phase, VDE 0530, ΔT = 100° C, PTC Thermistor 155° C, Z: K84.
Use only with 6SC610 Drives
