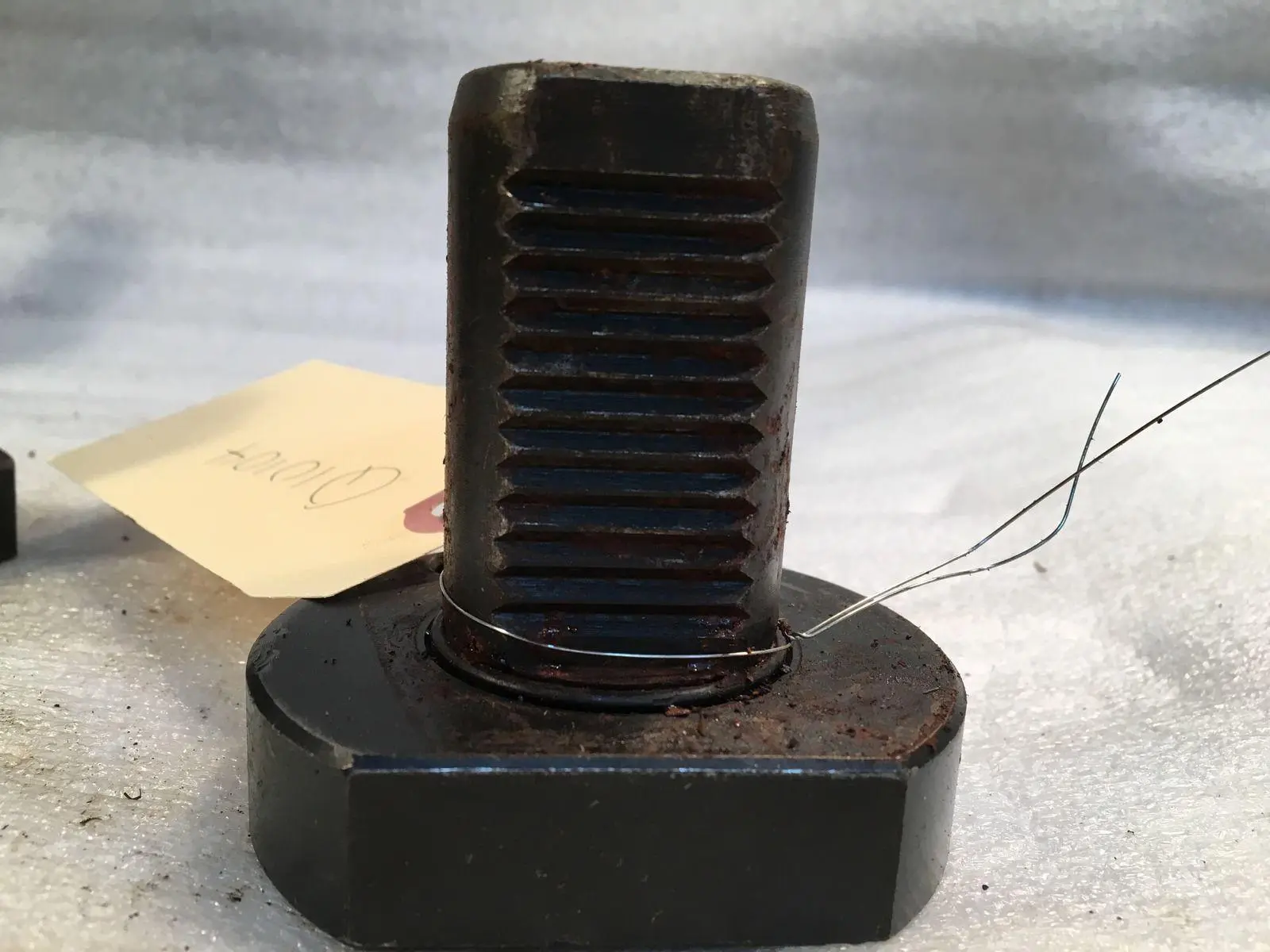

VDI Static Tool Holder Plug 82.4083S
| Type of Holder | VDI Tool Holder | VDI Tool Holder |
| Live / Static | Static | Static |
| Max Cutting Tool Size | 3.2677" | 83 mm |
| Projection | 20" | 508 mm |
| Outside Diameter | 3.2677" | 83 mm |
| VDI Form Type | Z2 | Z2 |
| Shank Diameter | 1.5748" | 40 mm |
| Dimensions | 4 x 4 | 4 x 4 |
| Weight | 4 LBS | 4 LBS |
Type of Holder: VDI Tool Holder
Max Cutting Tool Size: 83 mm
Projection: 20"
Through Coolant: yes
Outside Diameter: 83 mm
VDI Form Type: Z2
Shank Diameter: 40 mm
Approximate Dimensions: 4" x 4"
Approximate Height: 5"
Approximate Weight: 4 LBS
