USED 1991 Fanuc 20S A06B-0505-B002
USD $1,495.00
Overview
Description

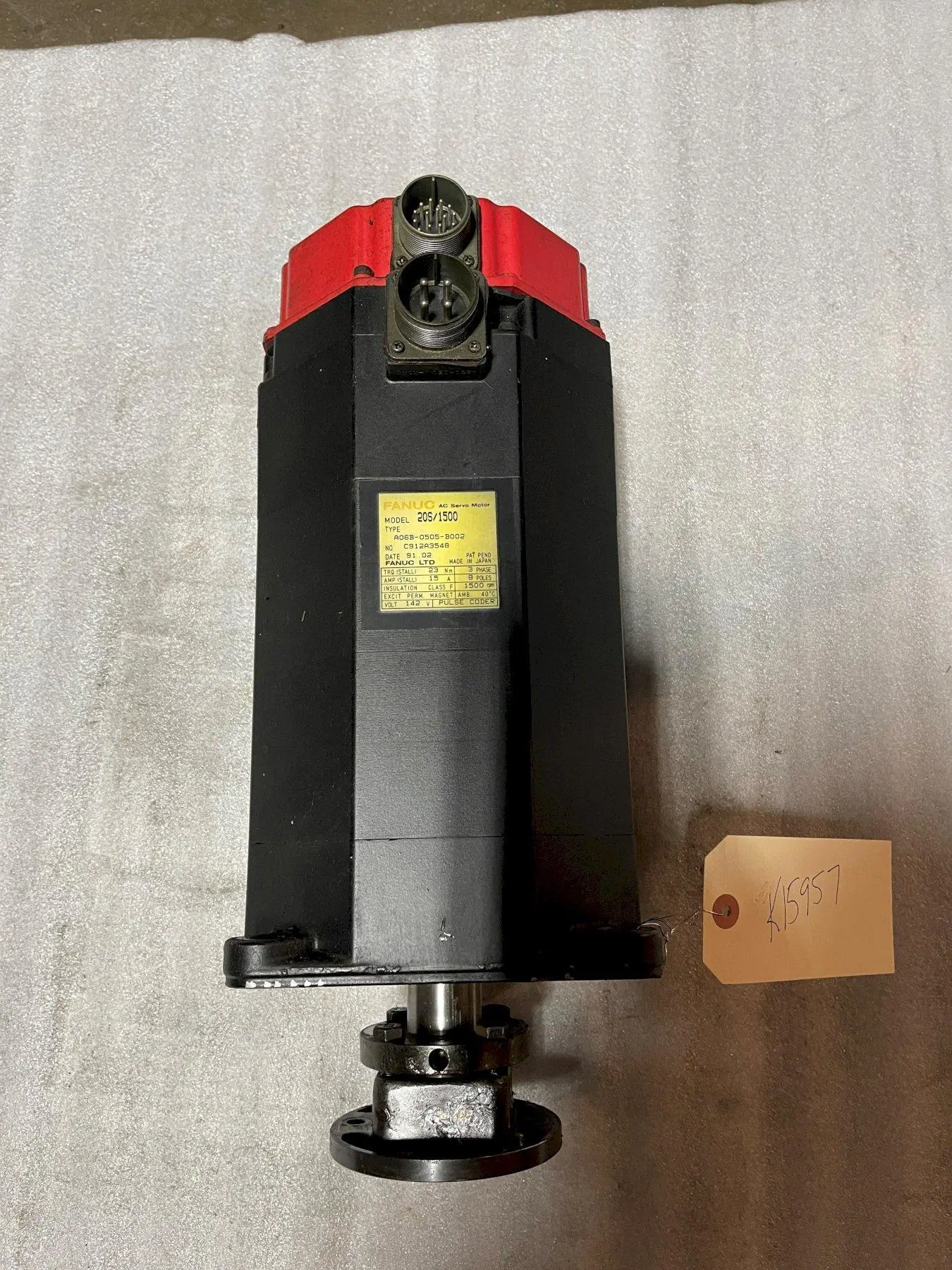

FANUC A06B-0505-B002 AC SERVO MOTOR, Model 20S/1500, 142 V, 1500 RPM, with Pulse Encoder.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 23 N | 5.2 lbf |
| Amp (Stall) | 15 A | 15 A |
| Voltage | 142 V | 142 V |
| # Poles | 8 | 8 |
| Max Speed | 1,500 RPM | 1,500 RPM |
| Ambient Temperature | 104°F | 40°C |
| Motor Phase | 3-Phase | 3-Phase |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Encoder | 2000P | 2000P |
| Dimensions | 24" x 13" x 12" | 24" x 13" x 12" |
| Weight | 75 LBS | 75 LBS |
Equipped With
Straight Shaft
