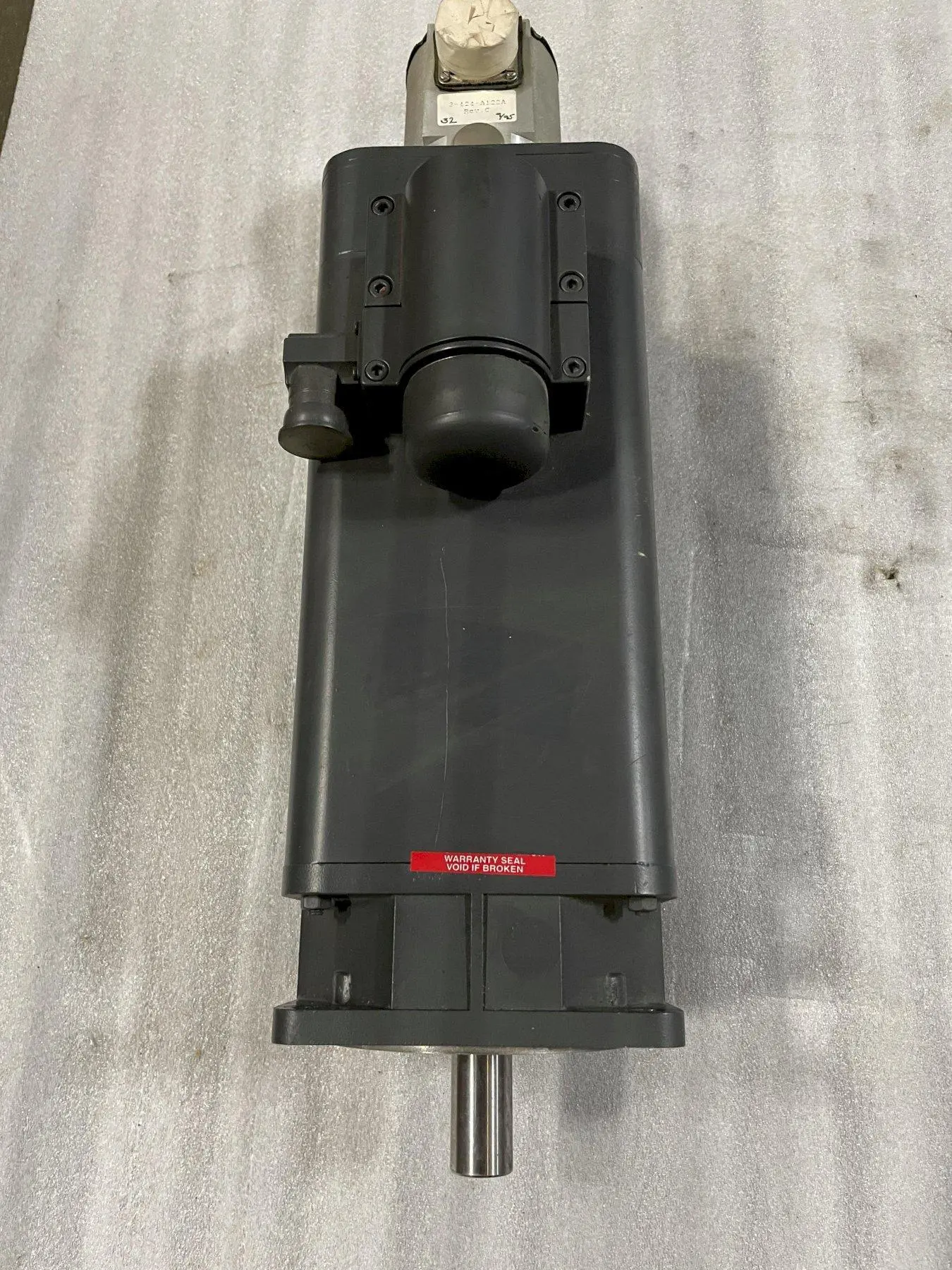

USED Siemens 1FT5076-OAC01-1-Z
USD $1,250.00
Overview
Description
SIEMENS/CINCINNATI MILACRON SERVO MOTOR 1FT5072-0AC01-1-Z Milacron # E F894 2968 01 009. Use only with 6SC610 Drives.
Specifications
| Current Type | AC | AC |
|---|---|---|
| Torque (Stall) | 22 N | 4.9 lbf |
| Amp (Stall) | 32.4 A | 32.4 A |
| Voltage | 150 V | 150 V |
| Max Speed | 3,000 RPM | 3,000 RPM |
| Efficiency | IEC 71 | IEC 71 |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Encoder | ROD 320.002 | ROD 320.002 |
| Motor Mounting Code | IM B5 | IM B5 |
| Dimensions | 23" x 8" x 10" | 23" x 8" x 10" |
| Weight | 59 LBS | 59 LBS |
Equipped With
3-Phase Tacho, 1 FU1050-6MC, 20 V/kRPM, VDE 0530, ΔT = 100° C, PTC Thermistor 155° C, Z: G45 K83.
Use only with 6SC610 Drives
