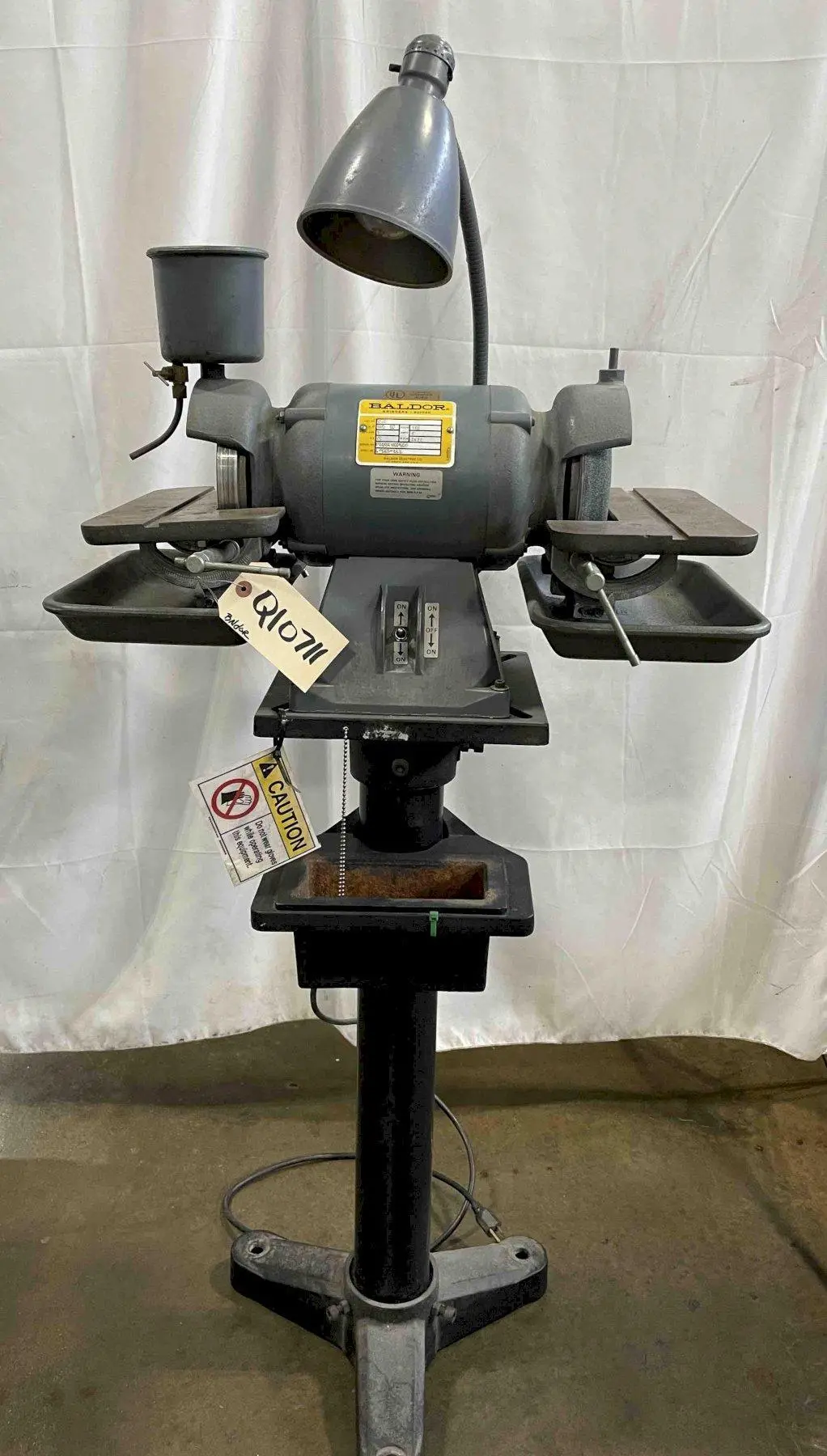

6" BALDOR DOUBLE ENDED PEDESTAL-TYPE CARBIDE GRINDER, Model 500, 6" Diamond Wheel One Side, Tilt Work Tables with Clamps Both Sides, Quench Tank, Work Light, 1/2 HP, 3600 RPM, 115 Volts, 1 Phase, 60 Hz.
| Grinding Wheel Diameter | 6" | 152.4 mm |
| Grinding Wheel Width | 1" & 1.5" | 38.1 mm |
| Grinding Wheel Bore | 1.25" | 31.75 mm |
| Grinding Spindle Speed | 3,600 RPM | 3,600 RPM |
| Motor Power | 0.5 hp | 0.4 kW |
| Motor Voltage | 115 V | 115 V |
| Motor Full Load Amps | 5 A | 5 A |
| Motor Speed | 3,600 RPM | 3,600 RPM |
| Motor Frequency | 60 Hz | 60 Hz |
| Motor Phase | 1 | 1 |
| Motor Insulation Class | B (Max 130° C / 266° F) | B (Max 130° C / 266° F) |
| Motor NEMA Design Letter | B (General Purpose) | B (General Purpose) |
| Motor Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Motor Enclosure Type | Totally Enclosed Non-Ventilated (TENV) | Totally Enclosed Non-Ventilated (TENV) |
| Electrics | 115/1/60 | 115/1/60 |
| Dimensions | 25" x 19" x 49" | 25" x 19" x 49" |
| Weight | 109 LBS | 109 LBS |
Cast Iron Pedestal Base with Quench Tank, 6" Diamond Wheel One Side, Tilt Work Tables with Clamps, Work Light
