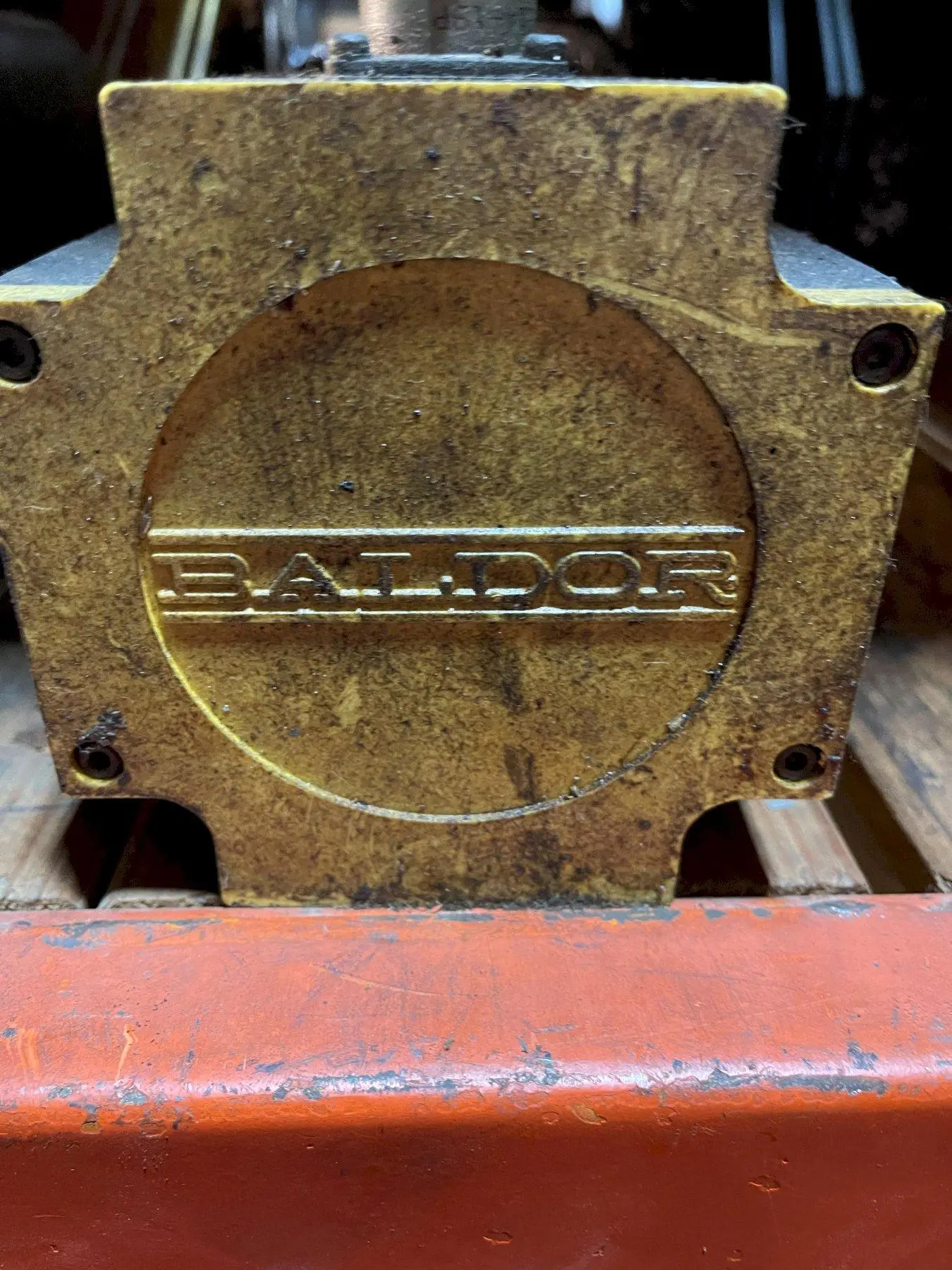

BALDOR AC BRUSHLESS SERVO MOTOR, BSM90B-3136 SPL, E1198016
| Shaft Type | Keyed | Keyed |
| Keyed Shaft? | Yes | Yes |
| AC Motor Type | Induction/Asynchronous | Induction/Asynchronous |
| Spec Number | 35A01-872 | 35A01-872 |
| Rated/Full-Load Torque | 6.5 | 6.5 |
| Shaft Diameter | 0.625" | 15.875 mm |
| Motor Power | 2 hp | 2 hp |
| Actual Rated Input Voltage | 0 V | 0 V |
| Full Load Amps | 0 A | 0 A |
| Base Speed | 1,725 RPM | 1,725 RPM |
| Frame | 145T | 145T |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 1.1 | 1.1 |
| NEMA KVA Code | K | K |
| NEMA Design Letter | Design B (General Purpose) | Design B (General Purpose) |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 82.5 | 82.5 |
| Power Factor | 77 | 77 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Reversible/Non-Reversible | Reversible | Reversible |
| Mounting Type | Foot-Mounted | Foot-Mounted |
| Special Motor Construction | Brake Motor | Brake Motor |
| Nominal Rated Input Voltage | 460,230 V | 460,230 V |
| Inverter/Vector Duty Rating | Inverter Duty | Inverter Duty |
Shaft Type: Keyed
AC Motor Type: Induction/Asynchronous
Spec Number: 35A01-872
Rated/Full-Load Torque: 6.5 Nm
Shaft Diameter: 5/8"
Motor Horsepower: 2 HP
Actual Rated Input Voltage: 208-230/460
Full Load Amps: 6.5-6.2/3.1
Base Speed: 1725 RPM
Frame: 145T
AC Frequency Rating: 60 Hz
Motor Phase: 3
Service Factor: 1.15
NEMA KVA Code: K
NEMA Design Letter: Design B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 82.5%
Power Factor: 77%
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Reversible/Non-Reversible: Reversible
Current Type: AC
Mounting Type: F1 (Foot-Mounted, Base-Mounted)
Special Motor Construction: Brake Motor
Nominal Rated Input Voltage: 460 V, 230 V
Inverter/Vector Duty Rating: Inverter Duty
