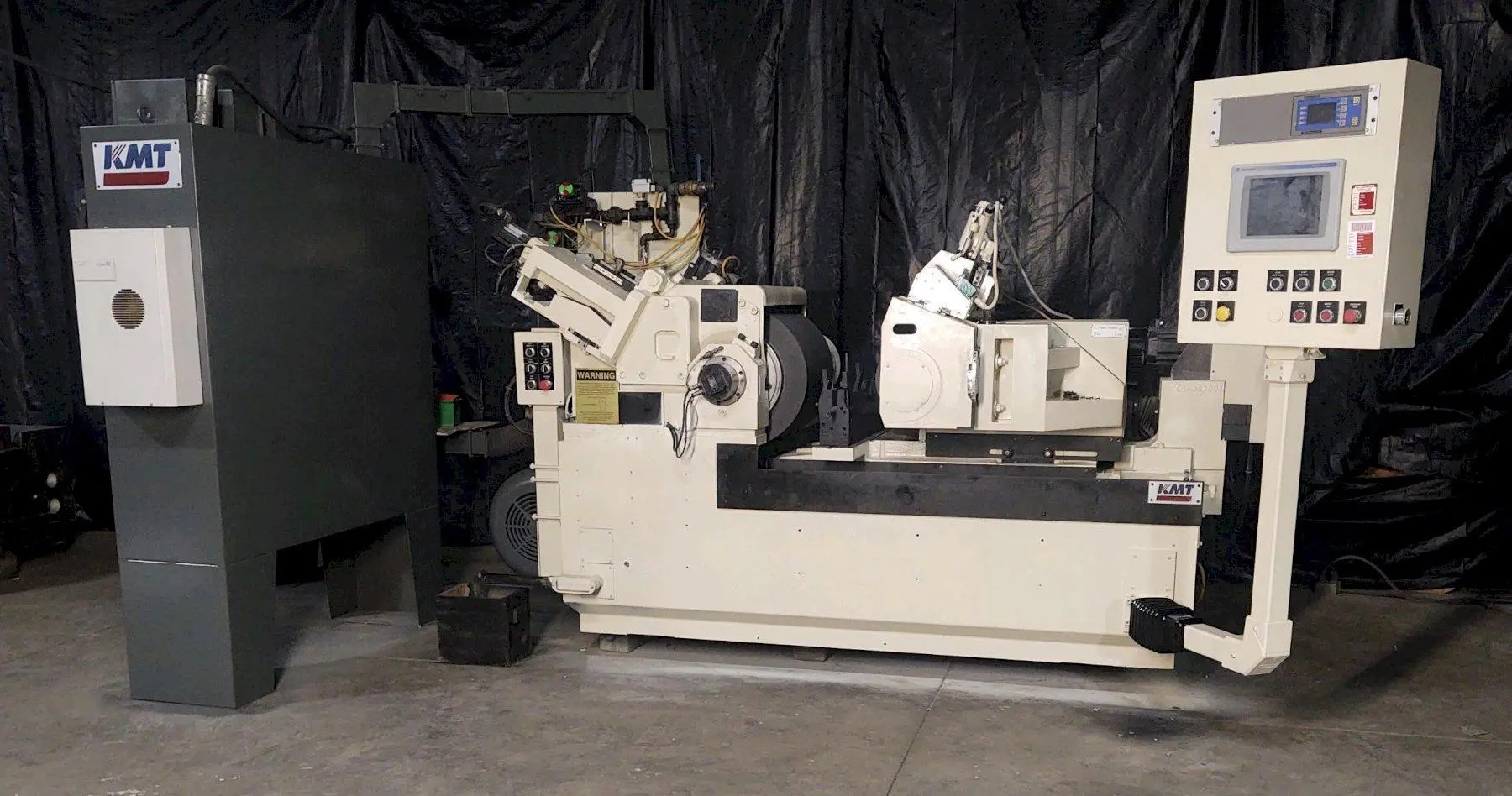

KMT CL500 CENTERLESS GRINDER, PLC Control, 10" Max Diameter, 20" Wide Wheel, New 2008.
| Control | Allen Bradley Control Logix PLC | Allen Bradley Control Logix PLC |
| Max Work Diameter Capacity | 10" (more is available on request) | 254 mm |
| Nominal Work Diameter Capacity | 0.5" (smaller upon request) | 12.7 mm |
| Max Grinding Wheel Diameter | 24" | 609.6 mm |
| Min Grinding Wheel Diameter | 17.5" | 444.5 mm |
| Max Grinding Wheel Width | 20" | 508 mm |
| Grinding Wheel Hole Diameter | 12" | 304.8 mm |
| Max Regulating Wheel Diameter | 14" | 355.6 mm |
| Min Regulating Wheel Diameter | 10.25" | 260.35 mm |
| Max Regulating Wheel Width | 20" | 508 mm |
| Min Regulating Wheel Width | 1" | 25.4 mm |
| Regulating Wheel Hole Diameter | 8" | 203.2 mm |
| Regulating Wheel Speeds Range | 11 - 300 RPM | 300 RPM |
| Regulating Wheel Power | 17 hp | 12.7 kW |
| Grinding Wheel Power | 100 hp | 74.6 kW |
| Electrics | 460/3/60 | 460/3/60 |
| Dimensions | 132" x 72" x 96" | 132" x 72" x 96" |
| Weight | 25,000 LBS | 25,000 LBS |
This is an Industry Leading State of The Art 'All Electric' Design with Precision Spindle Bearings that have a life span of 4-5 times a Filmatic Spindle Bearing as Proven by an Identical Sister KMT Machine Running Multiple Shifts for 14 Years in a Huge Diesel Engine Manufacturer. Maximum Work Piece Capacity is an Industry Leader at 10" and Can be Expanded Upon Request. With the 100 HP Grinding Wheel Spindle Motor Currently Installed, this Machine is Ready to Go for Large Diameter Work. Start Up is Included in this Price (labor only, not travel expenses). A 'Turn Key' Application Sale of this Machine is also Available at an Additional Cost. This is a Used Machine Reconditioned by TSR in Cincinnati. A Second Brand New Machine could be built up in 6-9 Months if Desired. Support and Field Service Repair is Available Through Cincinnati Grinding Technologies and TSR, Inc out of Cincinnati, Ohio. TSR, Inc Owns Cincinnati Grinding Technologies. Cincinnati Grinding Technologies designed the original series of KMT Centerless Grinders.
Allen Bradley Control Logix PLC with Panel View 1000 Touch Screen Control, SBS SB-4500 Balancing System, Single Point Servo Driven Profile Dresser on the grinding wheel with compensation. Available with Either Infeed or Thrufeed Work Rest at no additional Charge.
